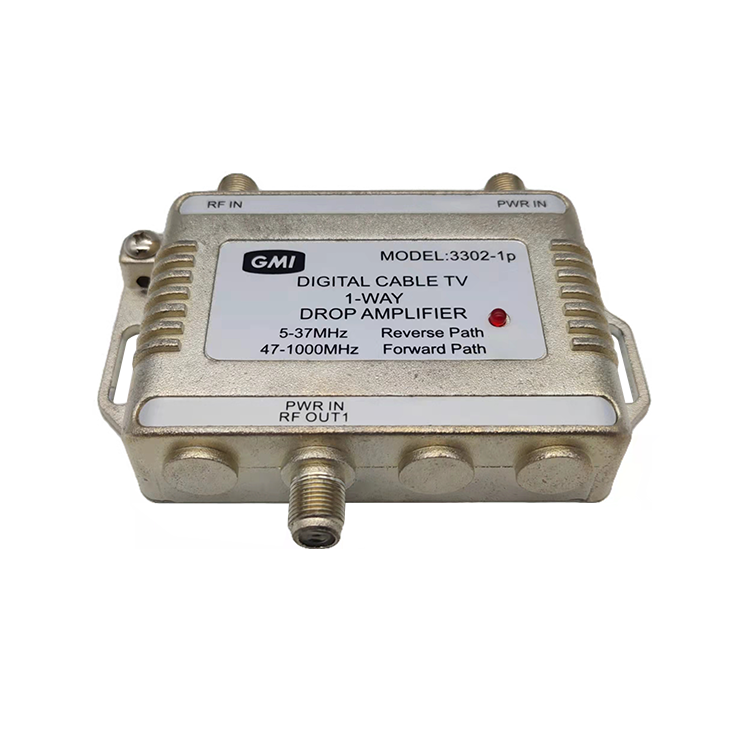

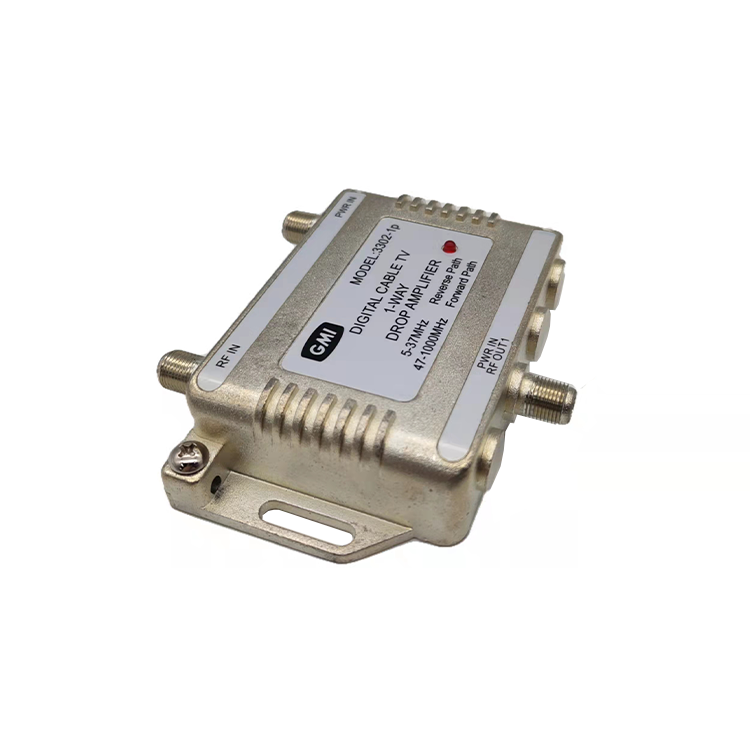

RTS-013 amplifier

(3302-1p)

1-WAY DROP AMPLIFIER

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:RTS-013 (3302-1p)
Specifications & Model	3302-1P(1 OUTPUT)
Frequency(MHz)	Forward path54~1000 Reverse Path5-42
Gain(dB)
Forward path	54-1000MHz @13.5dB
Reverse Path	5-42MHz @-1.6dB
Isolation(out-out)	-----
Noise figure	3dB Typ. 4dB Max
Return loss In/Out	18dBTyp.
Cross modulation	(Test by 77 channels,27dB mV)67dBc
Compositesecondorder	(Testby77channels,27dBmV)60dBc
FrequencyRange(MHz)	5~1000
Power Supply Voltage	12~16V 200mA Via DC input port or feed from output port
Connector	75ohm F-Female
