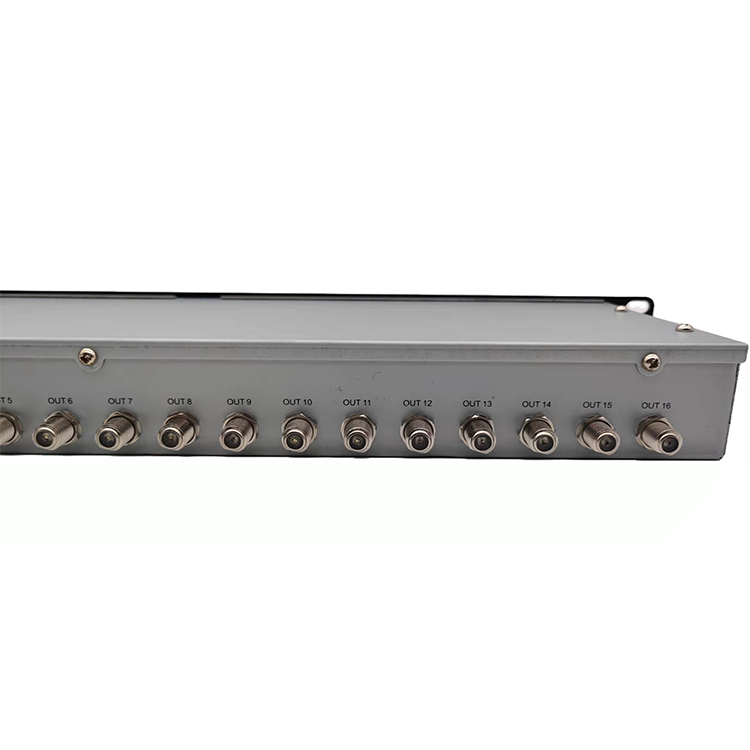

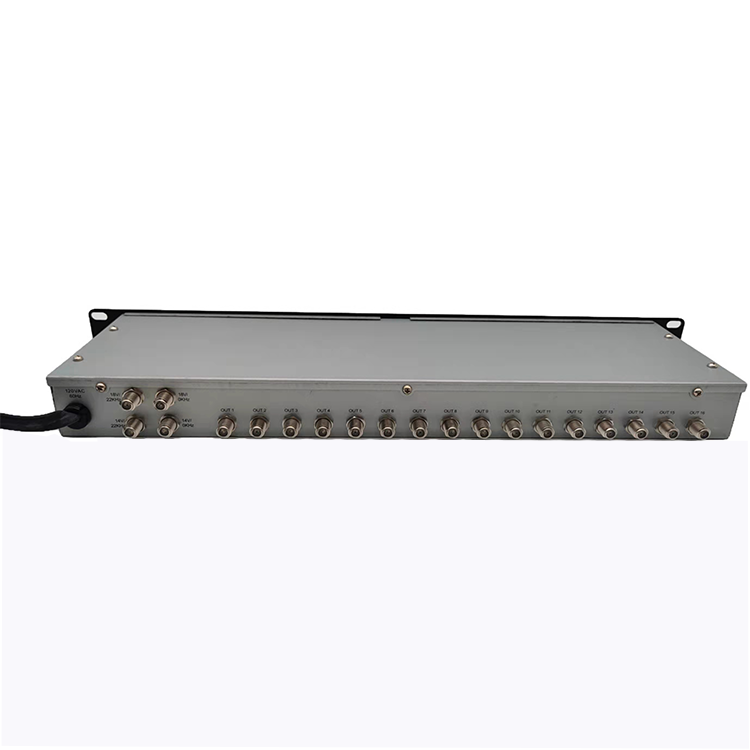

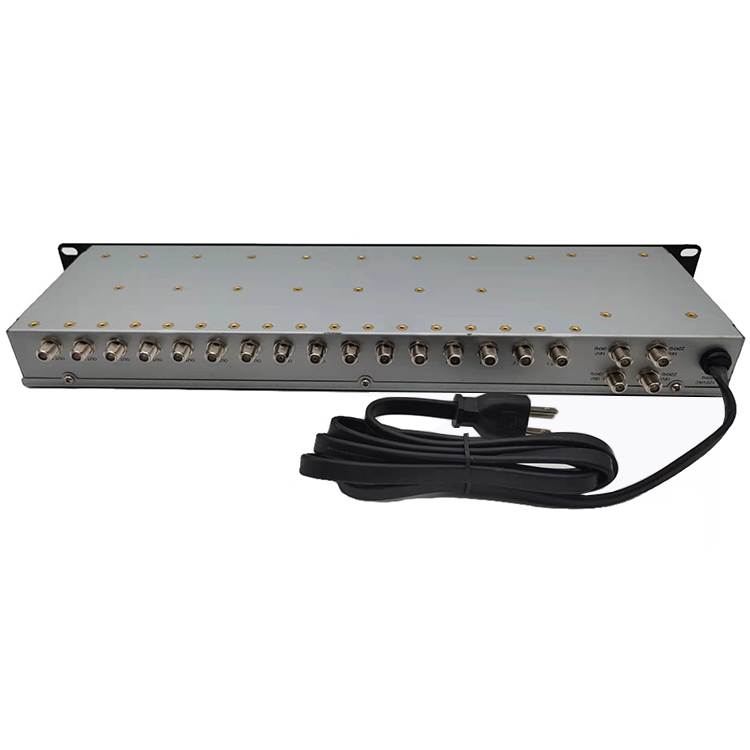

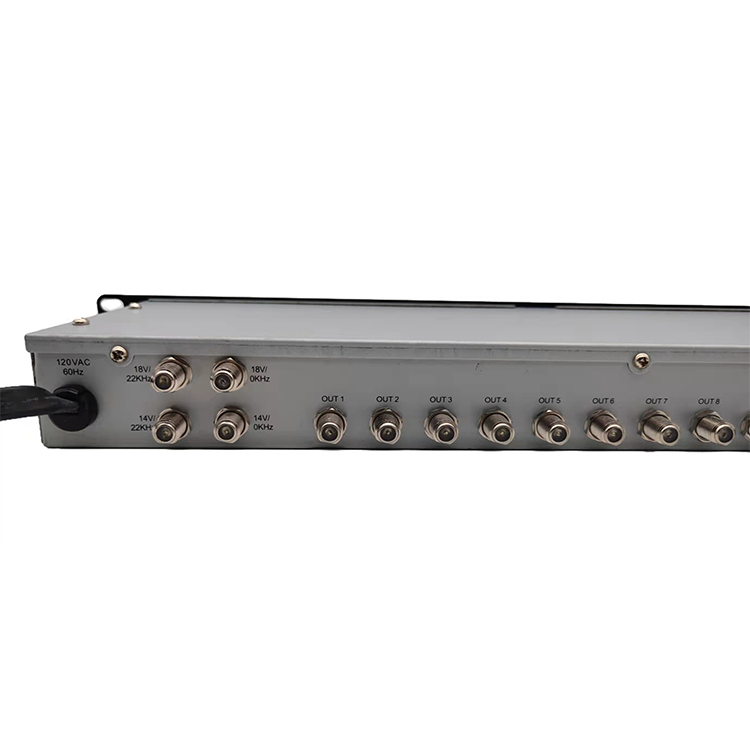

RTS-002 multi-road switch

（MSR-416）

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:RTS-002（MSR-416）
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
Input IF Frequency			950-1450MHz
Input/ Output Retum Loss	-12dB	-10dBMin	950-1450MHz
Gain/Insertion Loss	1dB	0dBMin	950-1450MHz
Gain Flatness		≤1.0dBMax	Any 24MHz Band
Cross-Polarization		-25dBMin	950-1450MHz
Cross-Sat Isolatio		-30dBMin	950-1450MHz
Input Capability	102dBuV	100d BuV Min	950MHz Input
LHCP/ RHCP Switching		14.0-14.7 VDC
Multi-SW 22KHz Switching Point		150-300mVp-p	Sine Wave Test Signal No Mechanical Relay
22KHz Signal Freq. & Amplitude At LNB Input 22KHz On		22±4 KHz 650±250mVp-p
Voltage/Current Bias Fixed LNB Bias Voltage Required At/From Multi-SW 8 Expected Current Loading Range 13 V / 0KHz / 13V / 22KHz Port 18 V / 0KHz Port 18 V / 22KHz Port		12.8V ~ 13.5 VDC 17.9V ~ 18.9 VDC 17.9V ~ 18.9 VDC	0 ~ 300mA 0 ~ 450mA 0 ~ 450mA
Power requirement	AC120V 60Hz 30W Max.
