G.hn En/Moca
GDMOCA-013(2550n/ax)

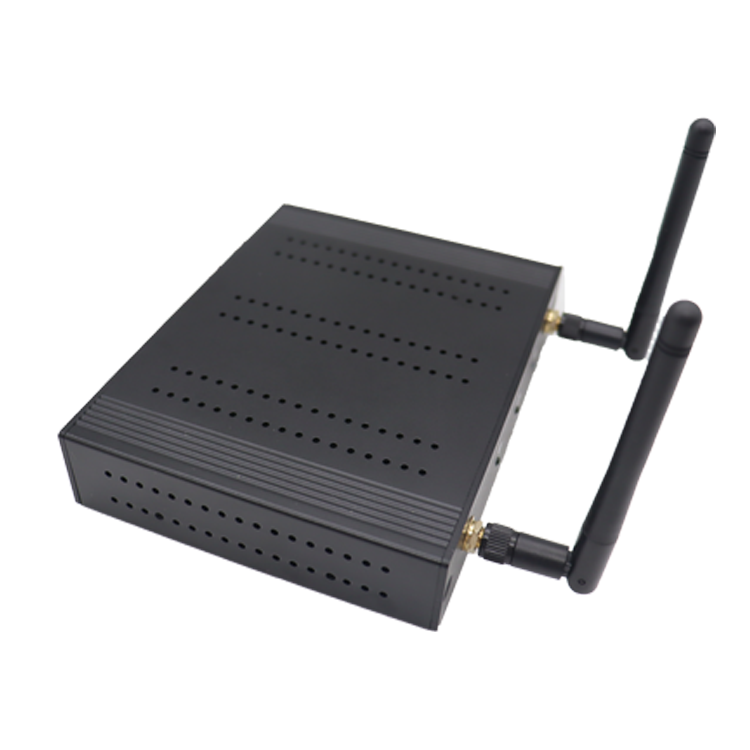

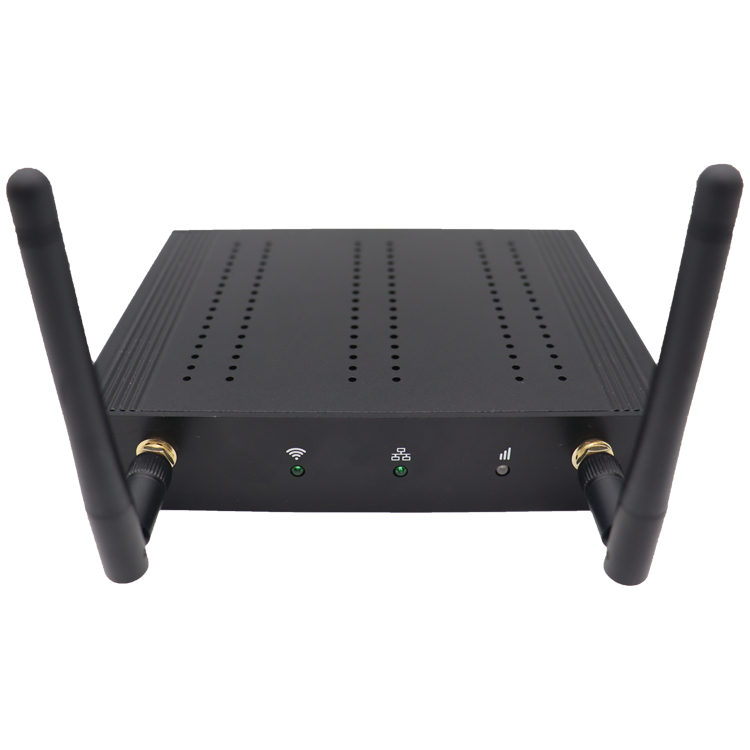

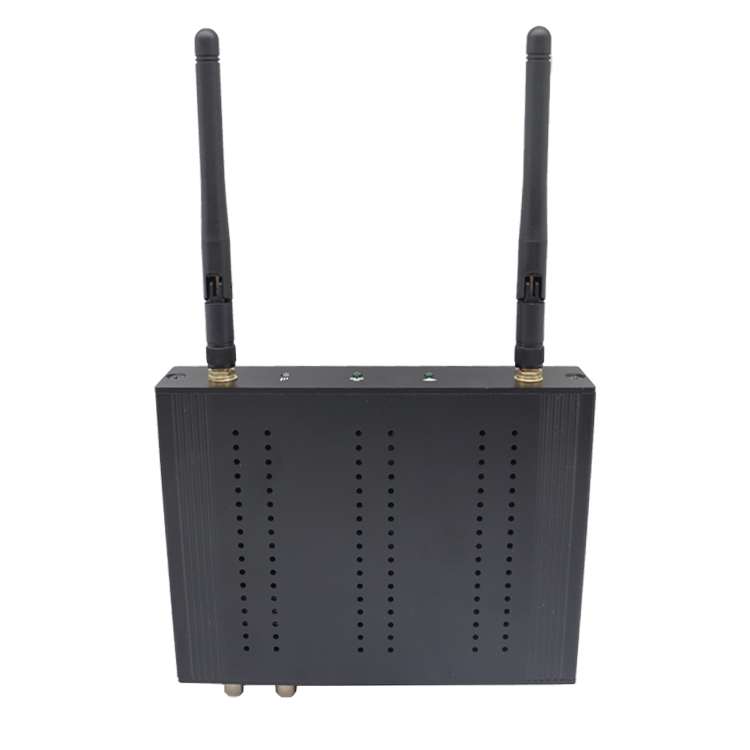

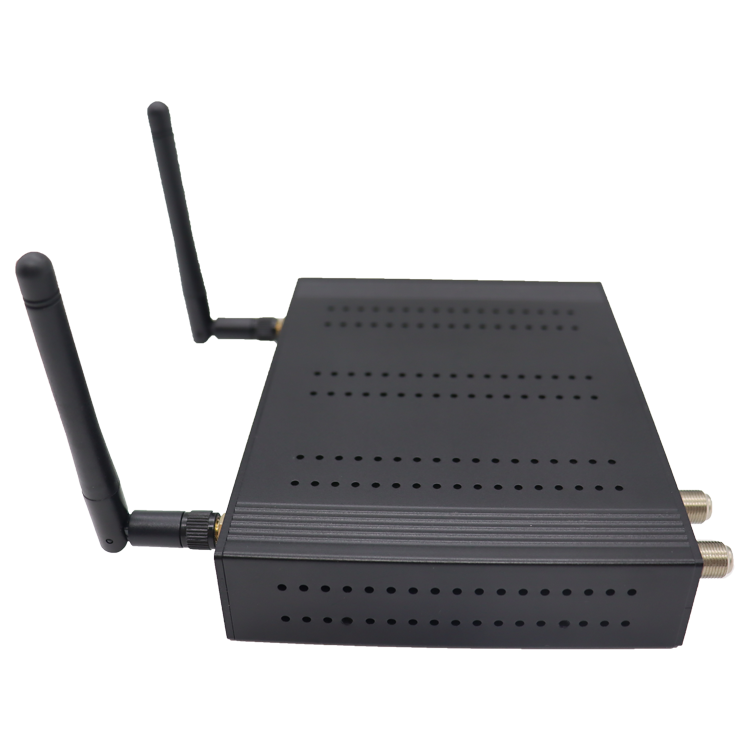

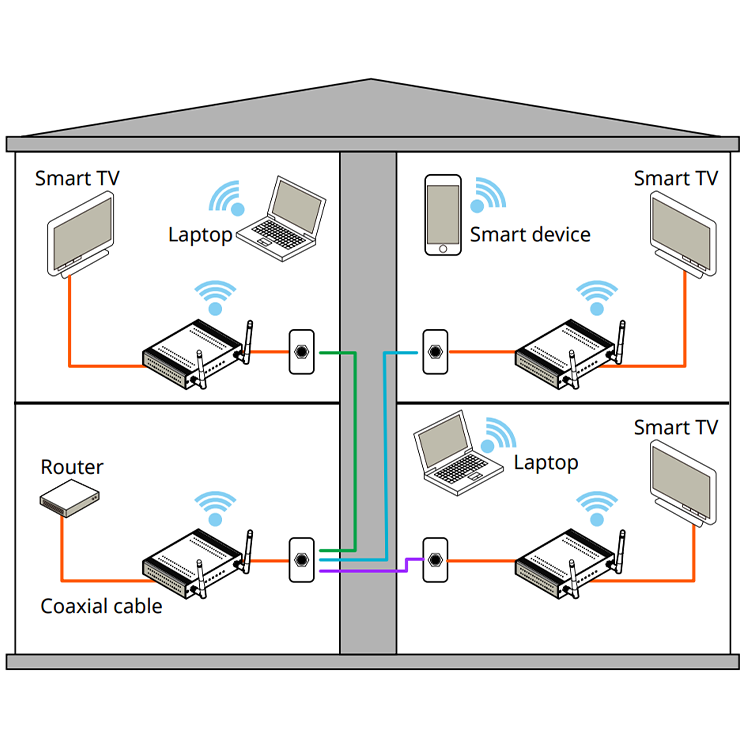

A G.hn endpoint for Coaxial with WiFi 6 refers to a device that utilizes
G.hn technology over coaxial cables, and it incorporates WiFi 6
capabilities. This type of endpoint allows for high-speed data
transmission over existing coaxial cable infrastructure, along with the
advanced features and performance enhancements offered by WiFi 6
connectivity.
Consultation hotline：0755-27091915
Online ServiceParameter
Features
-
High speed data transmission.
2. Use existing coaxial cable.
3. Co-exist with TV signal.
4. Easy installation
5. Extend network range with built-in WiFi function.
Specifications
| Place of Origin:Guangdong,China | ||
| Model Number:GDMOCA-013(2550n/ax) | ||
| DESCRIPTION：G.hn Endpoint ofCoaxial with WiFi 6 | ||
| SPECIFICATIONS | ||
| Standard | ˙ ITU-T G.9960/G.9961 G.hn over Coax | |
| ˙ IEEE 802.3/802.3u/802.3ab | ||
| ˙ IEEE 802.11 a/b/g/n/ac/ax | ||
| ˙ G.hn Frequency: 2 ‒ 200MHz | ||
| Data Rates | G.hn | up to 1.7Gbps |
| Ethernet | 10/100/1000Mbps | |
| WiFi | 5GHz up to 1200Mbps | |
| 2.4GHz up to 300Mbps | ||
| Transmission Range | G.hn | up to 70dBm attenuation |
| Ethernet | Maximum 100 meters | |

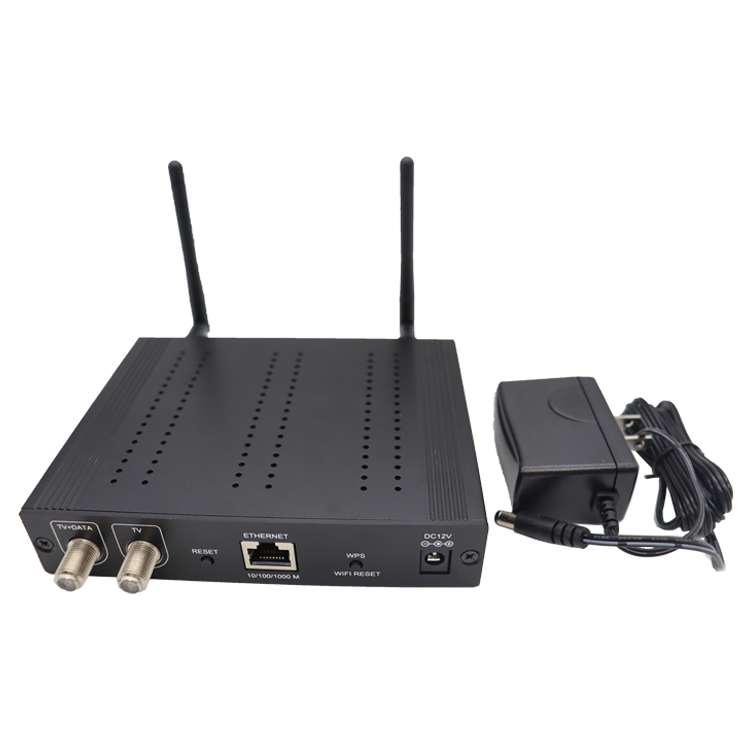

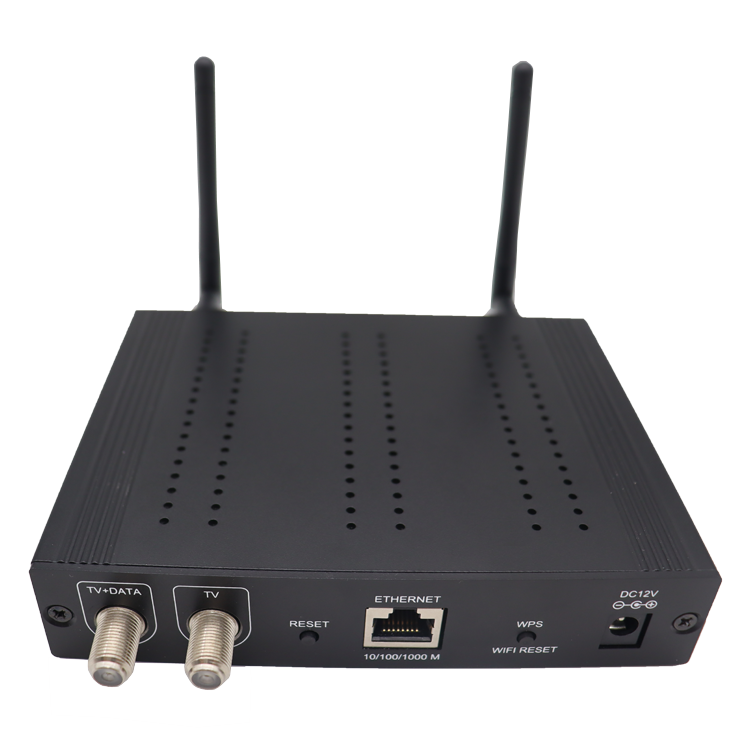

| Interface | F connectors | TV+Data port / TV port |
| Antennas | Two dual-band detachable antennas | |
| Ethernet port | LAN(10/100/1000Mbps) | |
| Reset button | Pair/Reset(for G.hn) | |
| WPS button | WPS /Reset(for WiFi) | |
| General | Power | DC 12V |
| Dimensions | 143x121x29(mm)(without rack) | |
| Environmentalforoperating | Temperature:0°C-40°C(32°F-104°F) | |
| Humidity:10%-95% RH | ||
| Environmentalfor storage | Temperature:-10°C - 70°C (14° F - 158° F) | |
| Humidity:10% - 95% RH | ||
