4204S

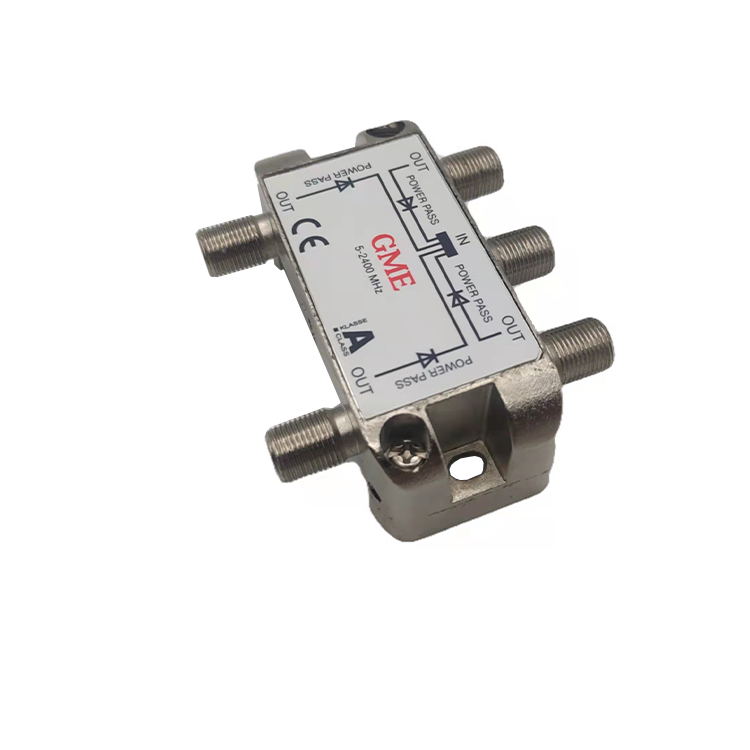

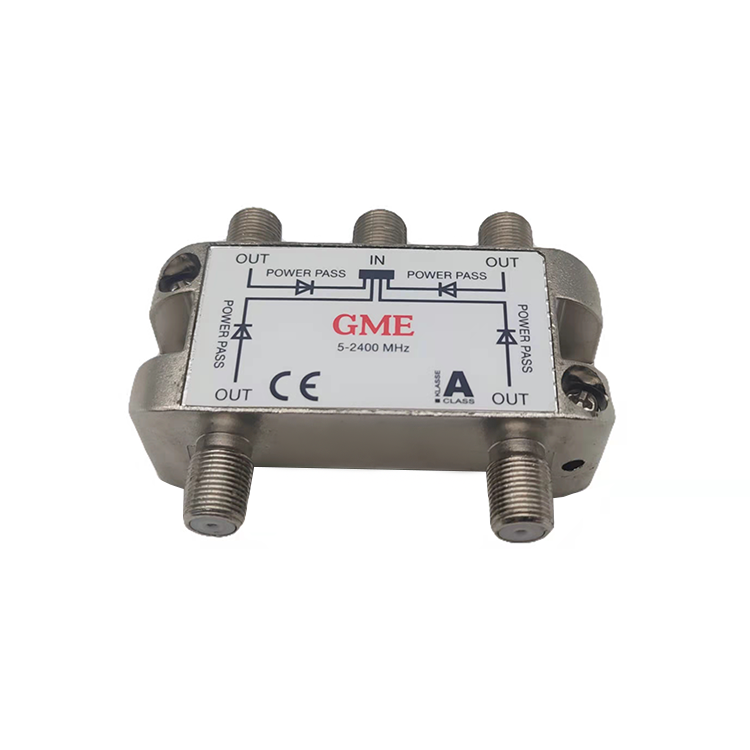

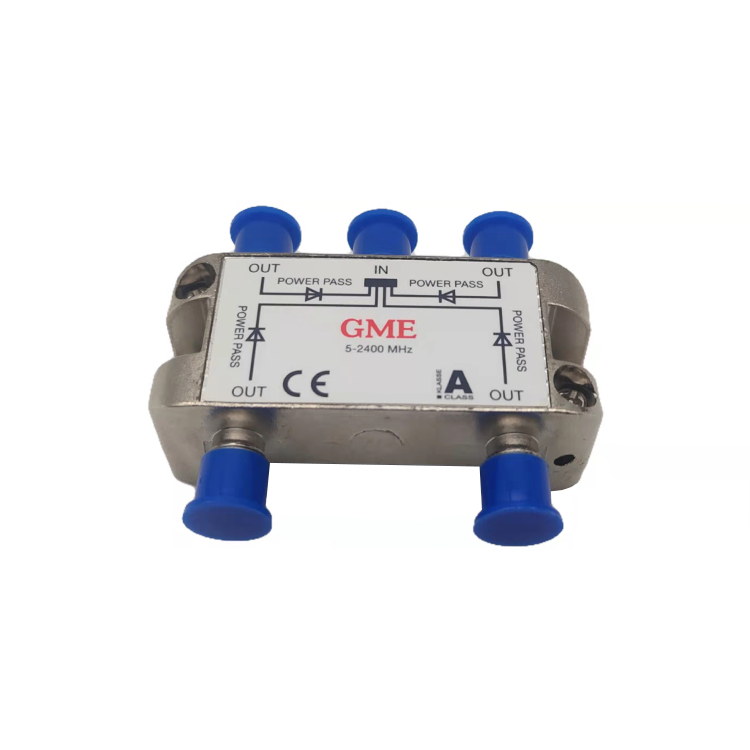

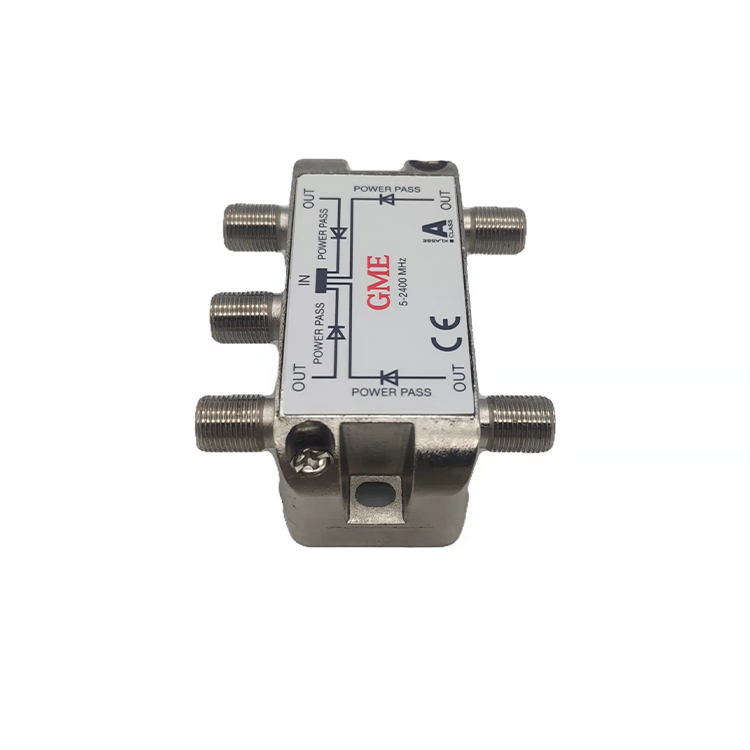

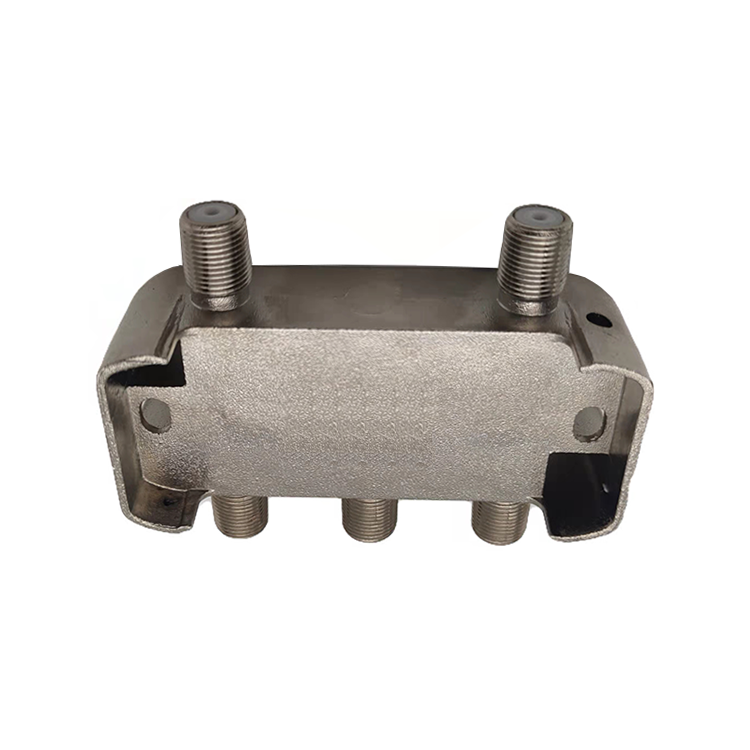

4-way F-type splitter 5-2400 MHz, screen class A, earth clamp, remote feed max. 24 V/0, 5 A (4 output), isolating diodes OUT-IN

Consultation hotline：0755-27091915

Place of origin: China
MODEL NO. :GDST-011 (4204S）
DESCRIPTION: 5 ~ 2400 MHz 4 WAY SPLITTER
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE			5 ~ 2400 MHz
INSERTION LOSS (IN TO OUT)	- 10.5 dB	-11 dB MAX.	5 ~ 47 MHz
	- 9.5 dB	-10 dB MAX.	47 ~ 862 MHz
	- 10 dB	-11.5dB MAX.	862 ~ 1750 MHz
	- 11 dB	- 11.5 dB MAX.	1750 ~ 2150 MHz
	- 13 dB	- 13.5 dB MAX.	2150 ~ 2400 MHz
ISOLATION (OUT TO OUT)	- 14 dB	- 13dB MIN.	5 ~ 47 MHz
	- 21 dB	- 23 dB MIN.	47~ 862 MHz
	- 20dB	- 23 dB MIN.	862 ~ 1750 MHz
	- 16 dB	- 22 dB MIN.	1750 ~ 2150 MHz
	- 12 dB	- 18 dB MIN.	2150 ~ 2400 MHz
RETURN LOSS INPUT	- 11 dB	-10dB MIN.	5 ~ 47 MHz
	-12.5 dB	- 10dB MIN.	47 ~ 862 MHz
	- 11 dB	- 10 dB MIN.	862 ~ 1750 MHz
	- 11 dB	- 10 dB MIN.	1750 ~2150 MHz
	- 11 dB	- 10 dB MIN	2150 ~ 2400 MHz
OUTPUT	- 11 dB	- 10 dB MIN.	5 ~ 47 MHz
	- 12 dB	- 12 dB MIN.	47 ~ 862MHz
	- 11 dB	- 10 dB MIN.	862 ~ 1750 MHz
	- 11dB	- 10 dB MIN.	1750 ~ 2150 MHz
	- 11 dB	- 10 dB MIN.	2150 ~ 2400 MHz
DC PASS			OUT → IN
IMPEDANCE		75 OHM	ALL PORTS
CONNECTORS		“ F ” FEMALE	ALL PORTS
DIMENSIONS		L 73.4×D 57.2×H 26 mm
