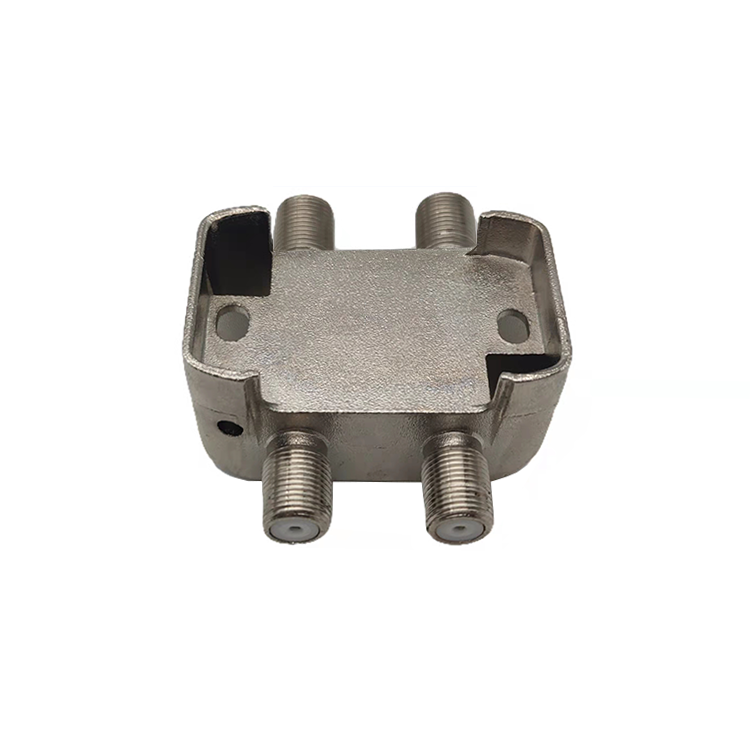

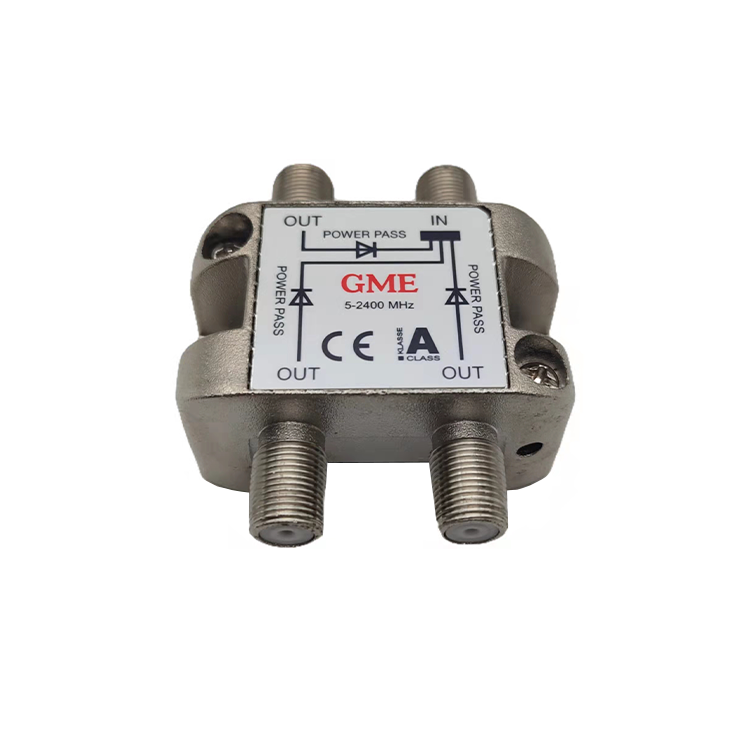

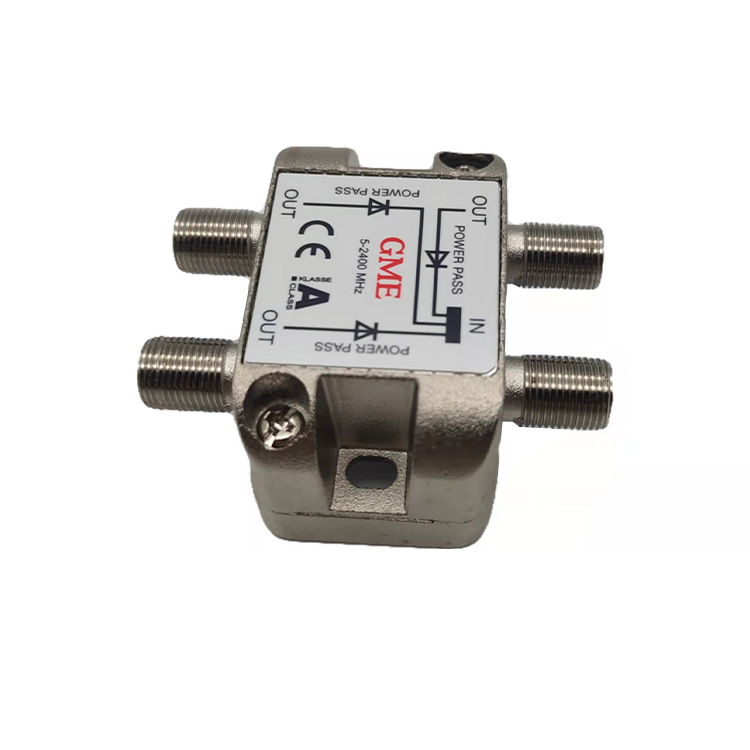

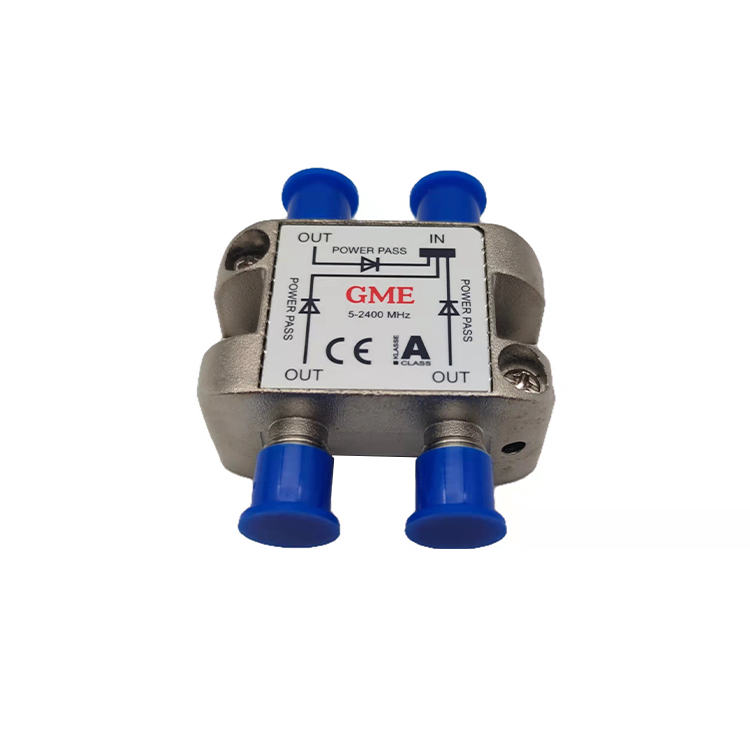

GDST-10 branch distributor

4203S

3 x Splitter (F-Connector) 5-2400 MHz

Consultation hotline：0755-27091915

Place of origin: China
MODEL : GDST-010 (4203S）
DESCRIPTION: 5 ~ 2400 MHz 3 WAY SPLITTER (DC PASS WITH DIODE ISOLATOR)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE			5 ~ 2400 MHz
INSERTION LOSS (IN TO OUT)	- 7.5 dB	- 8 dB MAX.	5 ~ 47 MHz
	- 7.5 dB	- 8 dB MAX.	47 ~ 862 MHz
	- 10 dB	-10.5dB MAX.	862 ~ 2150 MHz
	- 11.5 dB	- 12 dB MAX.	2150 ~ 2400 MHz
ISOLATION (OUT TO OUT)	- 15 dB	- 12dB MIN.	5 ~ 47 MHz
	- 22 dB	- 21 dB MIN.	47 ~ 862 MHz
	- 20dB	- 20 dB MIN.	862 ~ 2150 MHz
	- 15 dB	- 12 dB MIN.	2150 ~ 2400 MHz
RETURN LOSS INPUT	- 10 dB	-10dB MIN.	5 ~ 47 MHz
	-12.5 dB	- 14dB MIN.	47 ~ 862 MHz
	- 11 dB	- 10 dB MIN.	862 ~ 2150 MHz
	- 8 dB	- 8 dB MIN	2150 ~ 2400 MHz
OUTPUT	- 8 dB	- 10 dB MIN.	5 ~ 47 MHz
	- 12 dB	- 12 dB MIN.	47 ~ 862MHz
	- 11 dB	- 10 dB MIN.	862 ~ 2150 MHz
	- 8 dB	- 8 dB MIN.	2150 ~ 2400 MHz
DC PASS			OUT → IN
IMPEDANCE		75 OHM	ALL PORTS
CONNECTORS		“ F ” FEMALE	ALL PORTS
DIMENSIONS		L 51.2×D 57.2×H 26 mm
