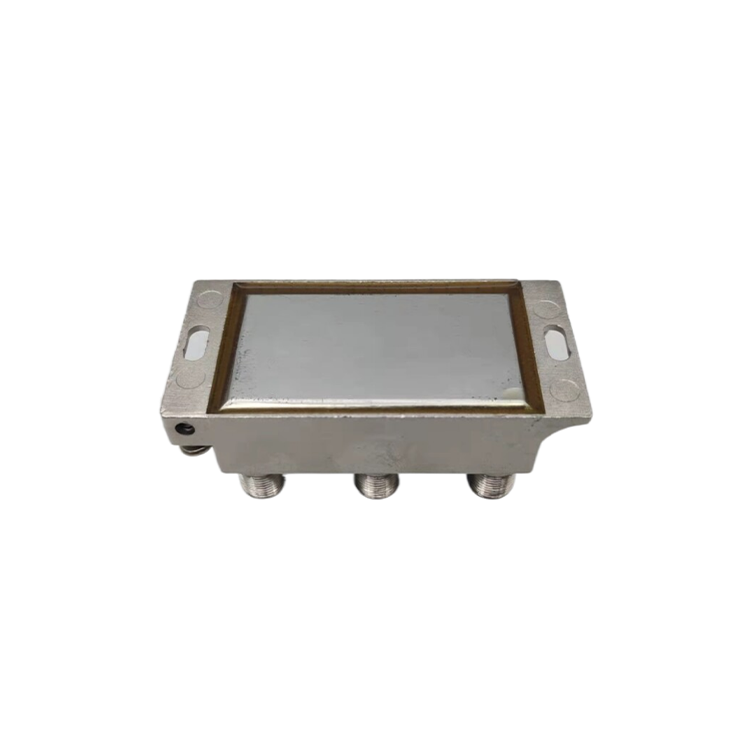

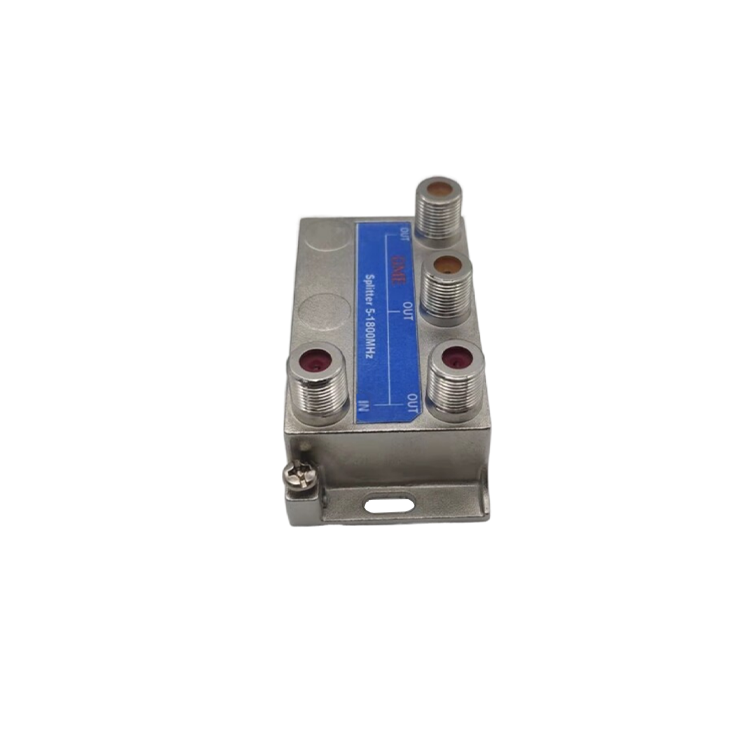

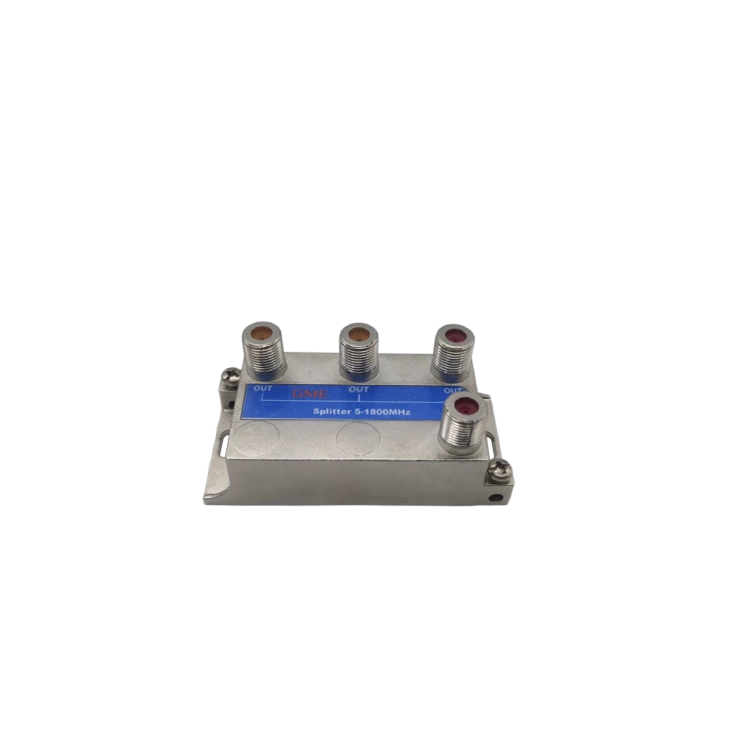

Model Number:GDST-049 (HRVS3-1.8G）

nsertion Loss at Frequency Band, port 1

3.6 dB @ 5–400 MHz

4.5 dB @ 400–1218 MHz

5.0 dB @ 1218–1794 MHz

Insertion Loss at Frequency Band, port 2

7.2 dB @ 5–400 MHz

8.6 dB @ 400–1218 MHz

9.5 dB @ 1218–1794 MHz

Return Loss at Frequency Band-input

16 dB @ 1218–1794 MHz

18 dB @ 1002–1218 MHz

20 dB @ 5–1002 MHz

Return Loss at Frequency Band-output

16 dB @ 1218–1794 MHz

18 dB @ 1002–1218 MHz

20 dB @ 5–1002 MHz

Frequency Response

±0.5 dB @ 1002–1794 MHz

±0.5 dB @ 5–1002 MHz

Impedance

75 ohm

Operating Frequency Band

5 – 1794 MHz

Power Passing

NO

Shielding Effectiveness

120dB

Spurious Signals/2nd Order Harmonics, before surge

<-100 dBc

Surge Capability Test Method

ANSI/SCTE 81 , Category A3 (6 kV, 200 A, Ring wave)

Surge Capability Waveform

100 kHz ring wave waveform

solation at Frequency Band, output to output

20 dB @ 1002–1794 MHz
22 dB @ 5–10 MHz
23 dB @ 870–1002 MHz
26 dB @ 65–870 MHz
30 dB @10–65 MHz

Operating Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Grounding and Bonding Standard

UL 467 Ground Clamp Communication

Safety Standard

SCTE
