GDST-044 分支分配器

GHT4-20P-1.2

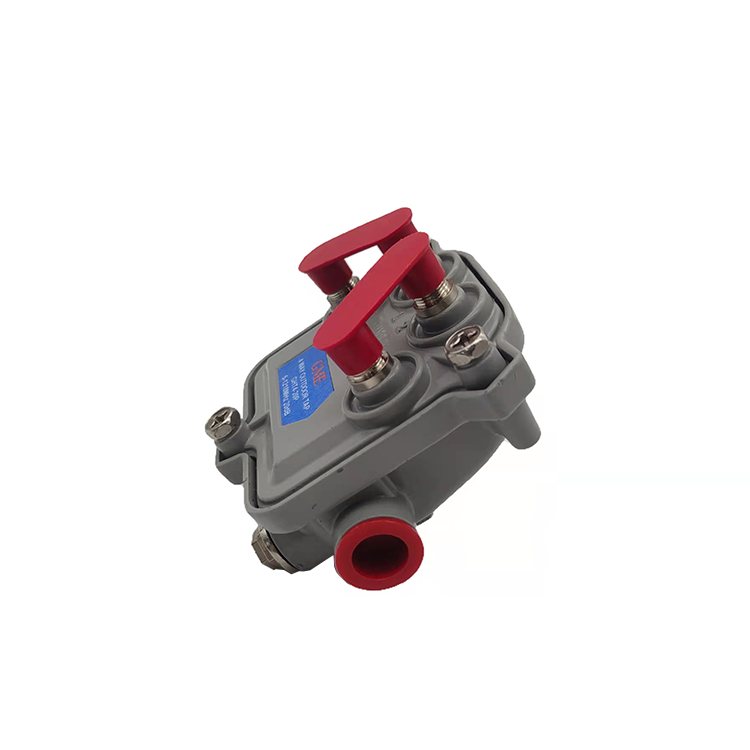

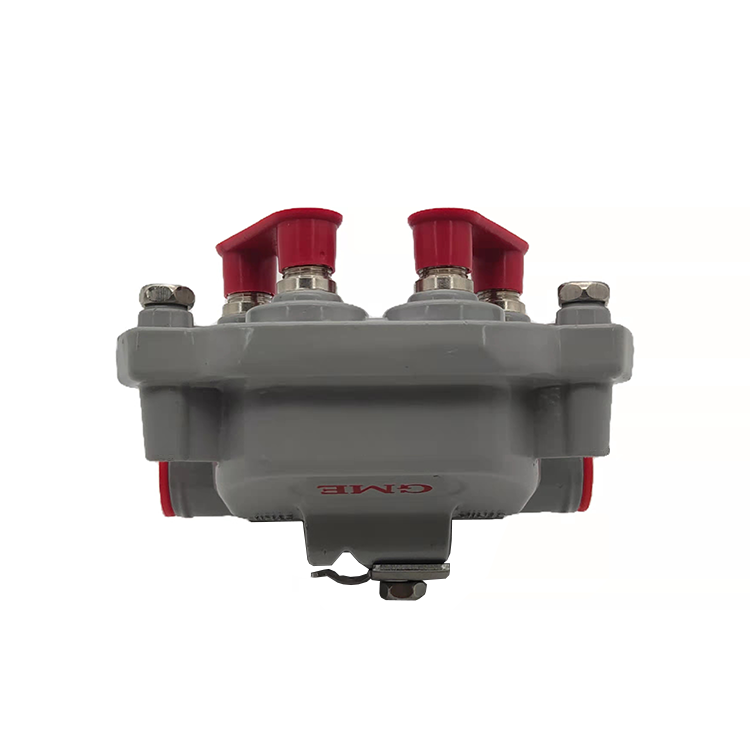

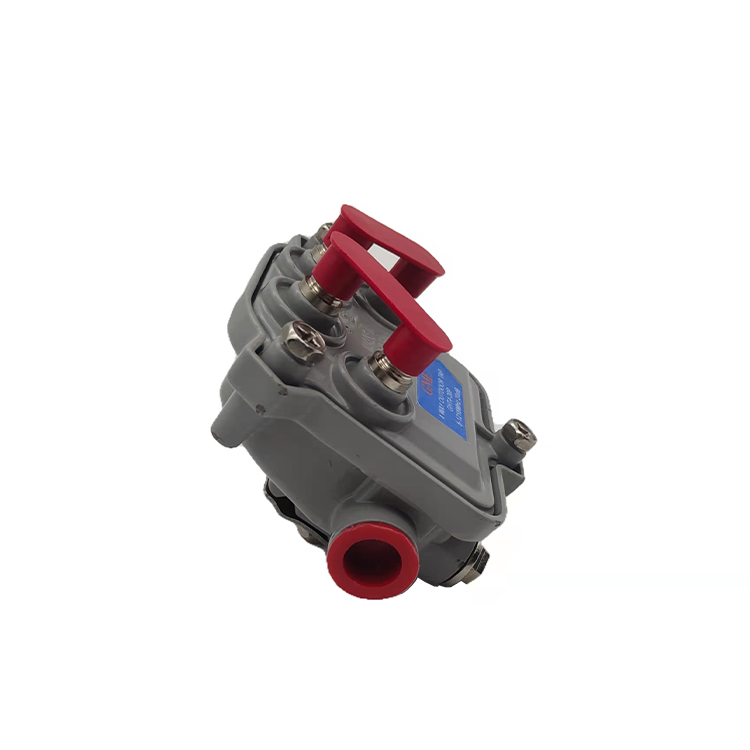

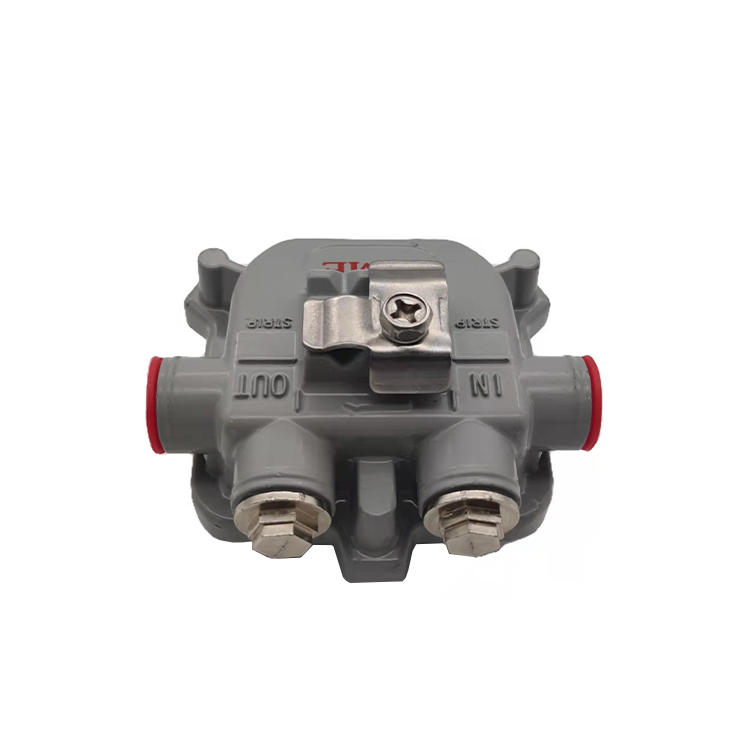

4 WAY OUTDOOK TAP
GHT4-20P
5-1218MHz 20dB

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-044 (GHT4-20P-1.2)
Parameter	Frequency [MHz]	314T-122-8		314T-122-11		314T-122-14
Through loss [dB]	5 – 65	–		3.6		1.6
	65 – 300	–		4		1.8
	300 – 550	–		4.7		2.5
	550 – 750	–		5		2.7
	750 – 862	–		5		3
	862 – 1006	–		5.1		3.1
	1006 – 1218	–		5.3		3.3
Tap loss [dB max.]	5 – 862	9		12		15
	862 – 1218	10		12.5		15.5
Return loss [dB min.]	5 – 10	16		15		15
	10 – 47	18		18		18
	47 – 300	18		18		18
	300 – 1006	15		15		15
	1006 – 1218	14		14		14
Isolation [dB min.]		Out-Tap	Tap-Tap	Out-Tap	Tap-Tap	Out-Tap	Tap-Tap
	5 – 10	–	20	20	20	21	20
	10 – 65	–	26	29	26	30.5	26
	65 – 862	–	24	27	24	28.5	24
	862 – 1218	–	22	25	22	26.5	22
