GDST-043 branch distributor

GHT8-20P-1.2

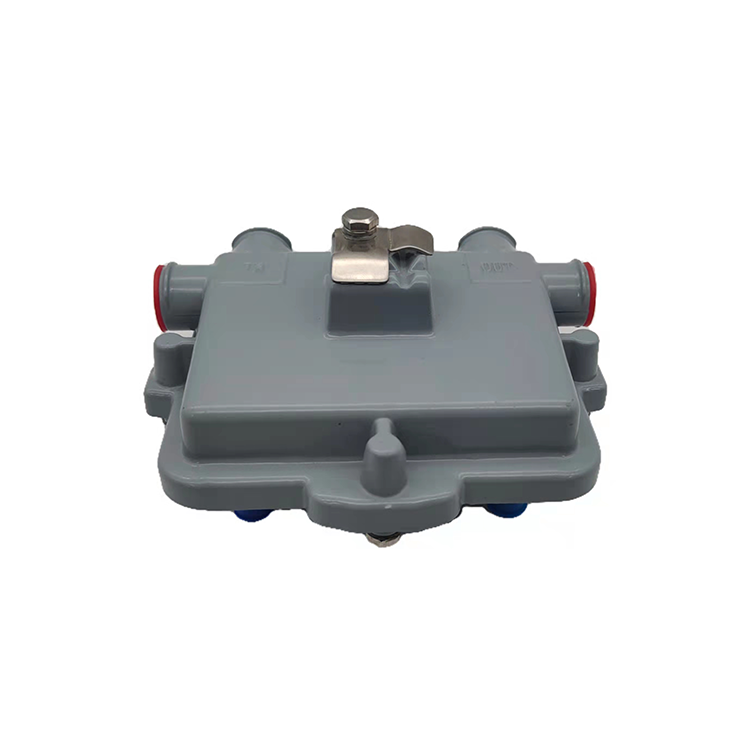

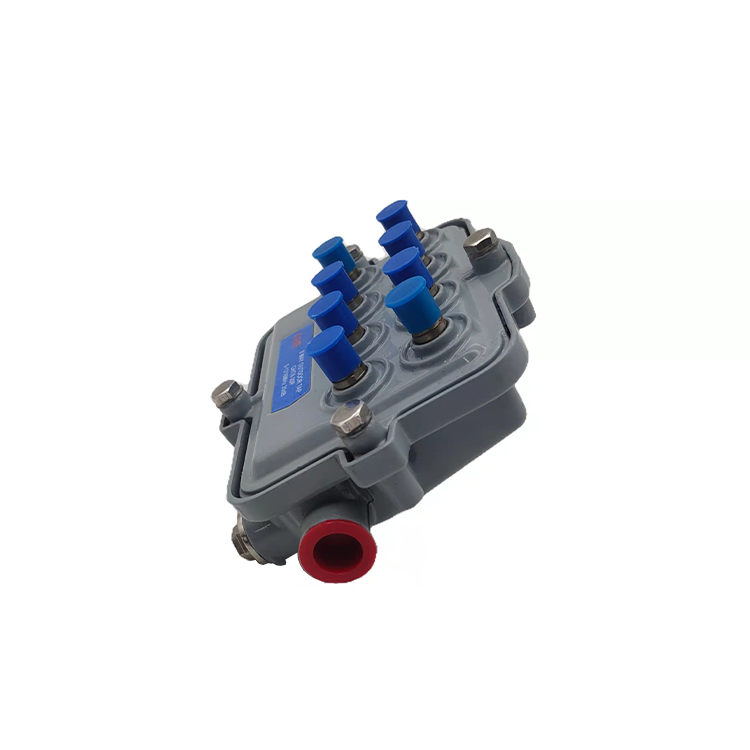

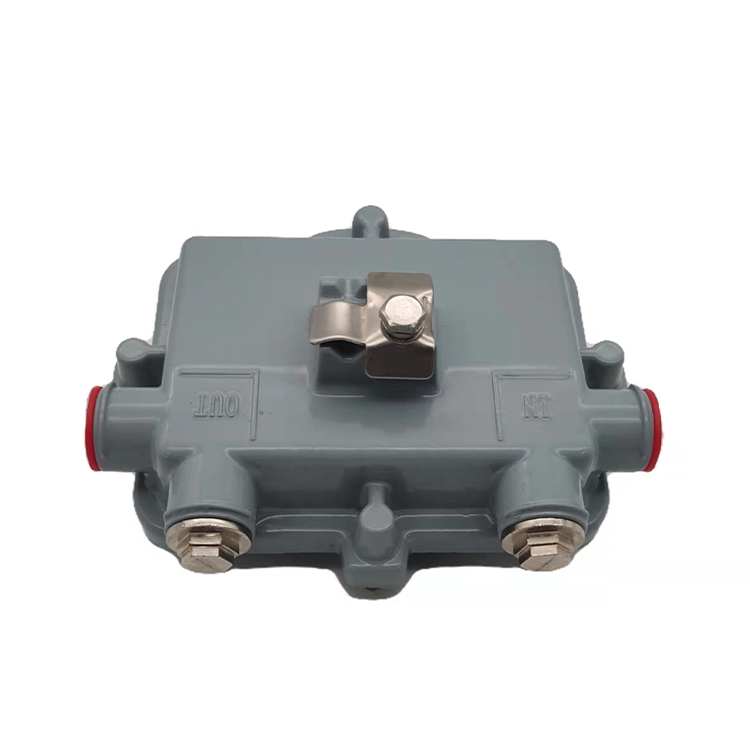

8 WAY OUTDOOK TAP
GHT8-20P
5-1218MHz 20dB

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-043 (GHT8-20P-1.2)
Parameter	Frequency [MHz]	318T-122-11		318T-122-14		318T-122-17		318T-122-20
Through loss [dB]	5 – 65	–		3.6		1.6		1.1
	65 – 300	–		4		1.8		1.3
	300 – 550	–		4.7		2.5		1.9
	550 – 750	–		5		2.7		2.1
	750 – 862	–		5		3		2.3
	862 – 1006	–		5		3.1		2.4
	1006 – 1218	–		5		3.6		2.6
Tap loss [dB max.]	5 – 862	12		15		18		21
	862 – 1218	12.5		15.5		18.5		21.5
Return loss [dB min.]	5 – 10	16		16		16		16
	10 – 47	18		18		18		18
	47 – 300	18		18		18		18
	300 – 1006	16		16		16		16
	1006 – 1218	14		14		14		14
Isolation [dB min.]		Out-Tap	Tap-Tap	Out-Tap	Tap-Tap	Out-Tap	Tap-Tap	Out-Tap	Tap-Tap
	5 – 10	–	22	22	22	22	22	26	22
	10 – 65	–	26	30.5	26	32	26	33.5	26
	65 – 862	–	24	28.5	24	30	24	31.5	24
	862 – 1006	–	22	26.5	22	28	22	29.5	22
	1006 - 1218	–	20	24.5	20	26	20	27.5	20
