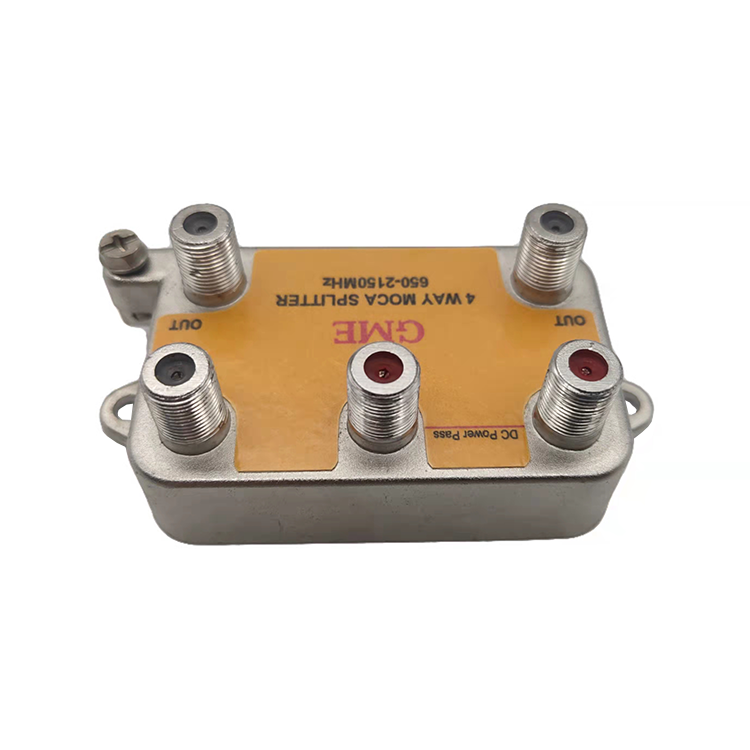

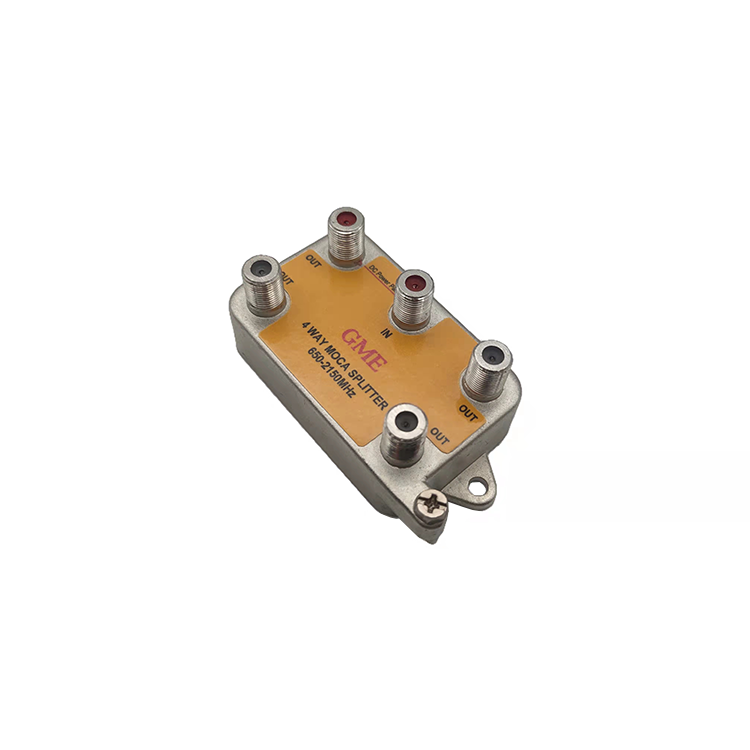

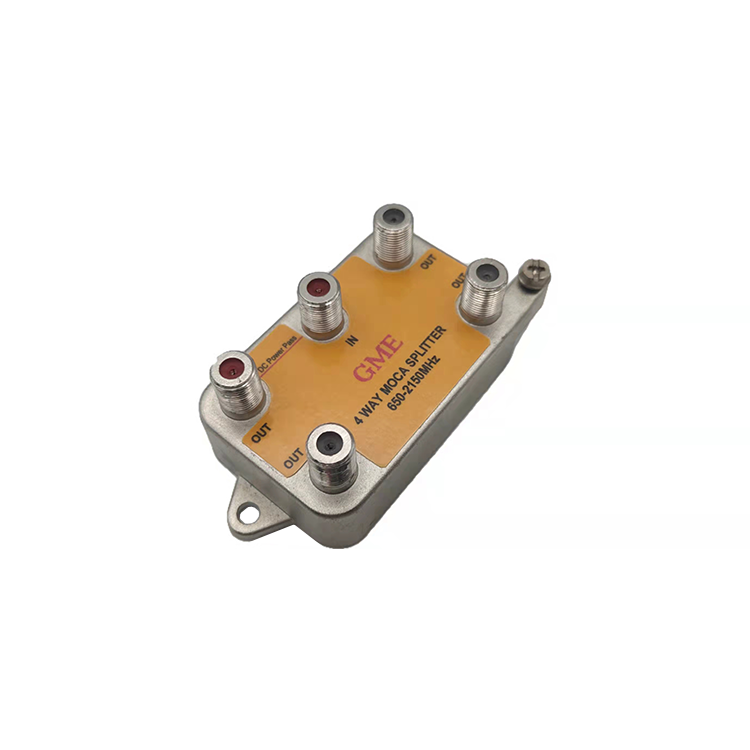

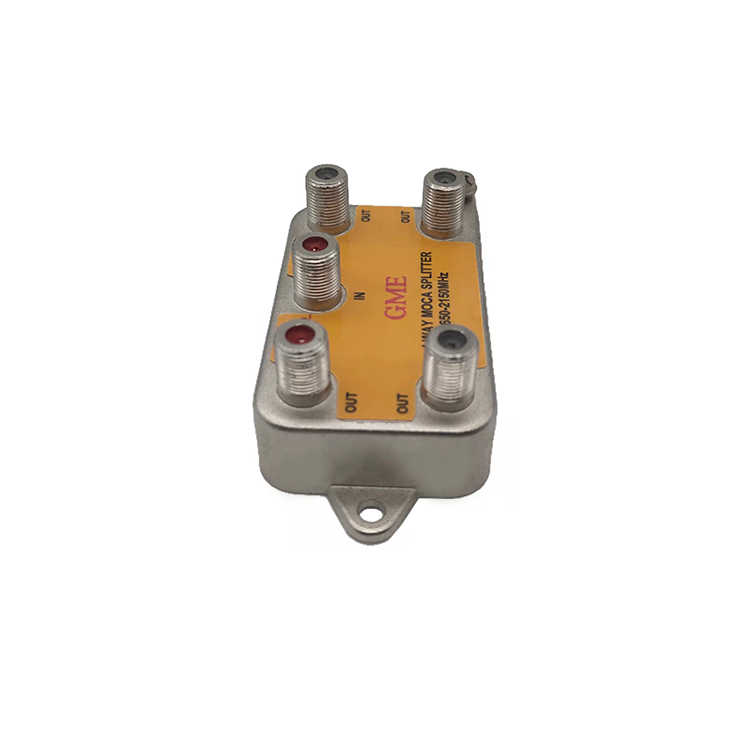

GDST-037 branch distributor

4534V-M

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-037 (4534V-M）
ITEM	TYPICAL	Q.C.LIMIT		TEST CONDITIONS
Frequency Range		2 ~ 2150 MHz
Insertion Loss
2 ~ 4 MHz		11 dB	Max
4 ~ 475 MHz		11 dB	Max
475 ~ 625 MHz		9 dB	Max
625 ~ 950 MHz		9 dB	Max
950 ~ 1820 MHz		9 dB	Max
1820 ~ 2150 MHz		9.5 dB	Max
I/O insertion Flatness
2 ~ 4 MHz		± 0.5dB
475 ~ 625 MHz		± 0.5dB		@Moca over any 50MHz BW
950 ~ 2150 MHz		± 2dB		@ Satellite
		± 0.5dB		@ Satellite over any 36MHz BW
Return Loss: Inputs
2 ~ 4 MHz	-9 dB	8 dB	Min
475 ~ 625 MHz	-9 dB	8 dB	Min	@ Moca
950 ~ 2150 MHz	-10 dB	8 dB	Min	@ Satellite
Return Loss: Outputs
2 ~ 4 MHz	-9 dB	8 dB	Min
475 ~ 625 MHz	-12 dB	8 dB	Min	@ Moca
950 ~ 2150 MHz	-12 dB	10 dB Min		@ Satellite
Isolation Loss Between Outputs
2 ~ 4 MHz		11 dB	Max
4 ~ 475 MHz		18 dB	Max
475 ~ 625 MHz		11±3 dB	Max	Same 2 way group
475 ~ 625 MHz		11±3 dB	Max	Other 2 way group
625 ~ 950 MHz		10Min 45dB	Max.
950 ~ 1820 MHz		20 dB	Min
1820 ~ 2150 MHz		15 dB	Min
Isolation Flatness Between Outputs
2 ~ 4 MHz		± 0.5dB
475 ~ 625 MHz		± 2 dB		@ MOCA over 150MHZ BW
DC Power Pass:
Output Port 1 to Input		1500mA max.
Other Output Port		Blocked
Power ports Color		RED

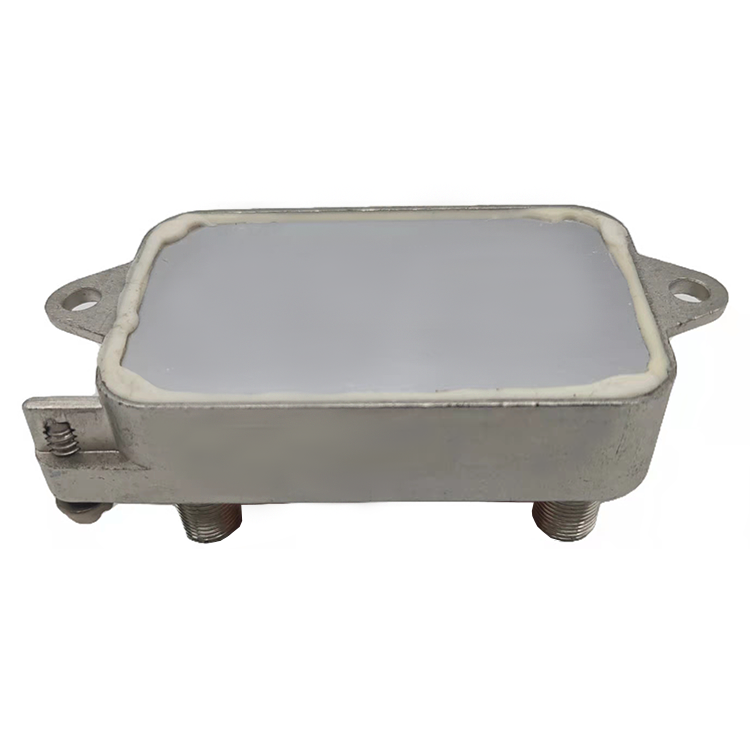

Housing :
Direcast
Ground Stud		2
Operating Temperature Range		-34 ~ 60℃
