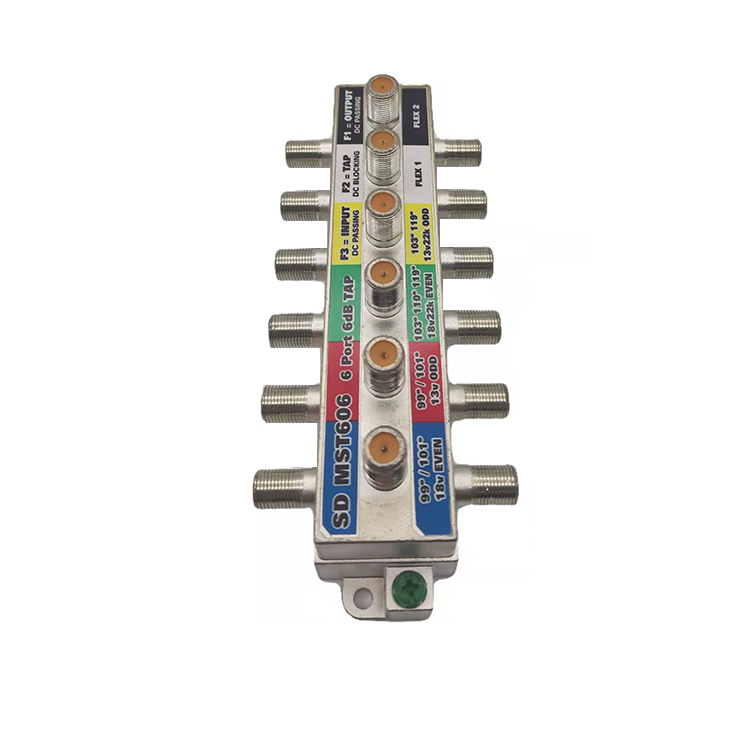

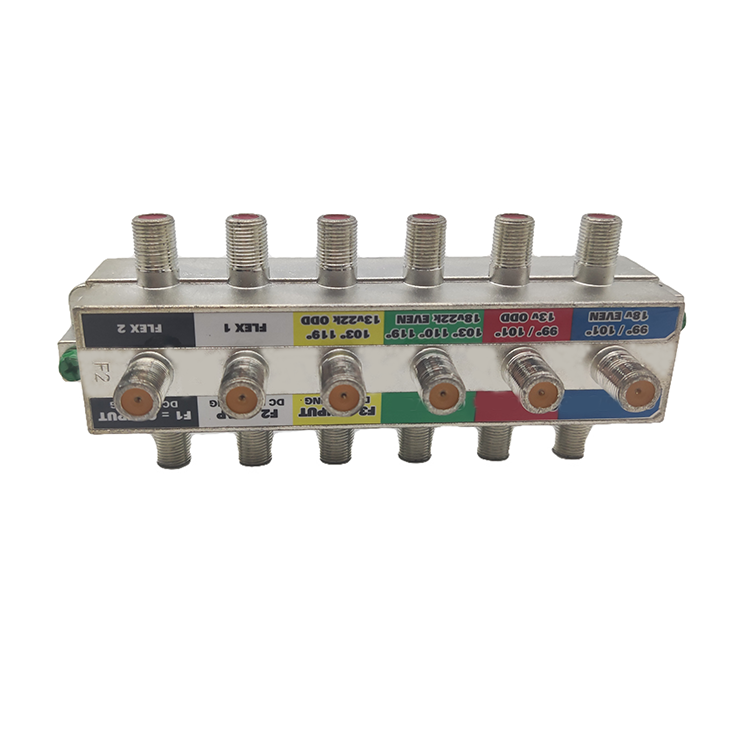

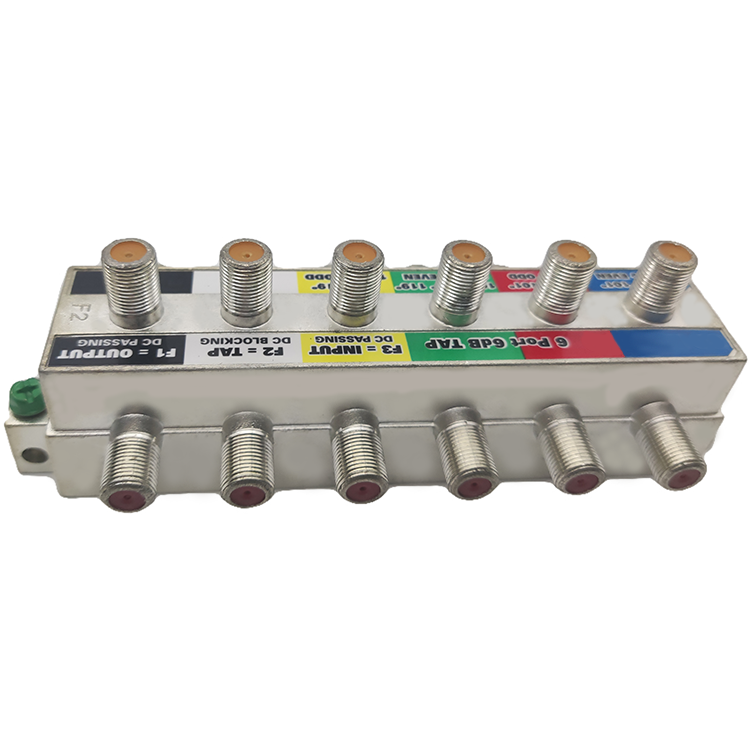

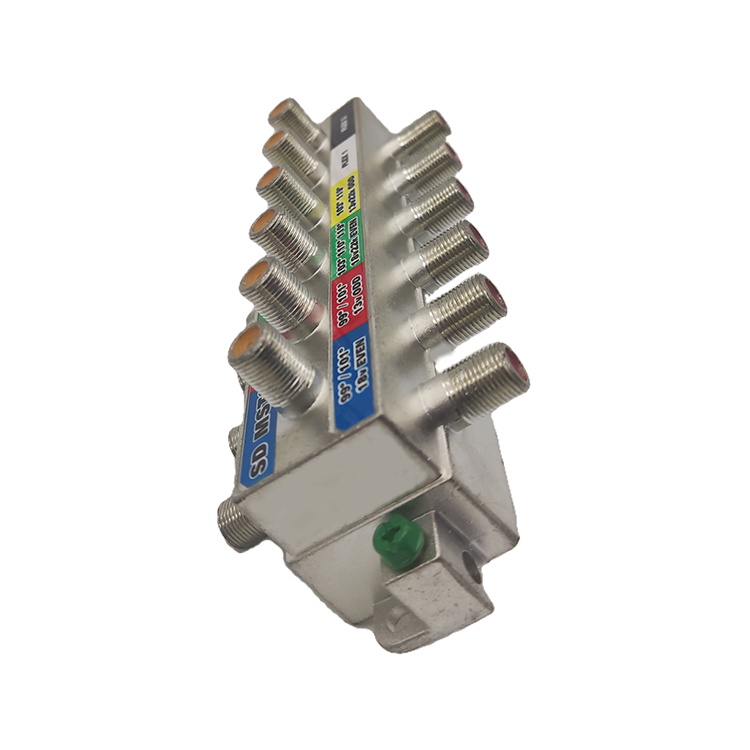

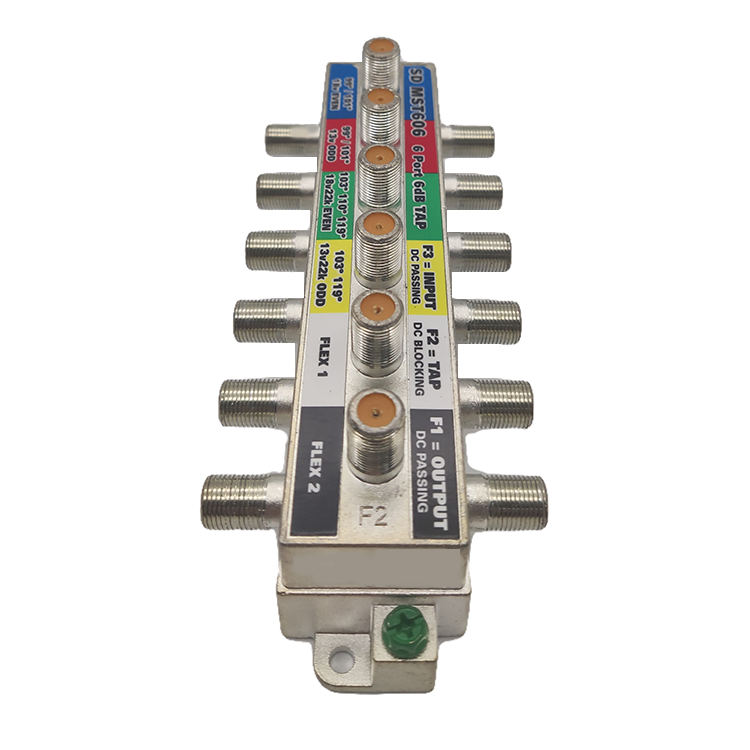

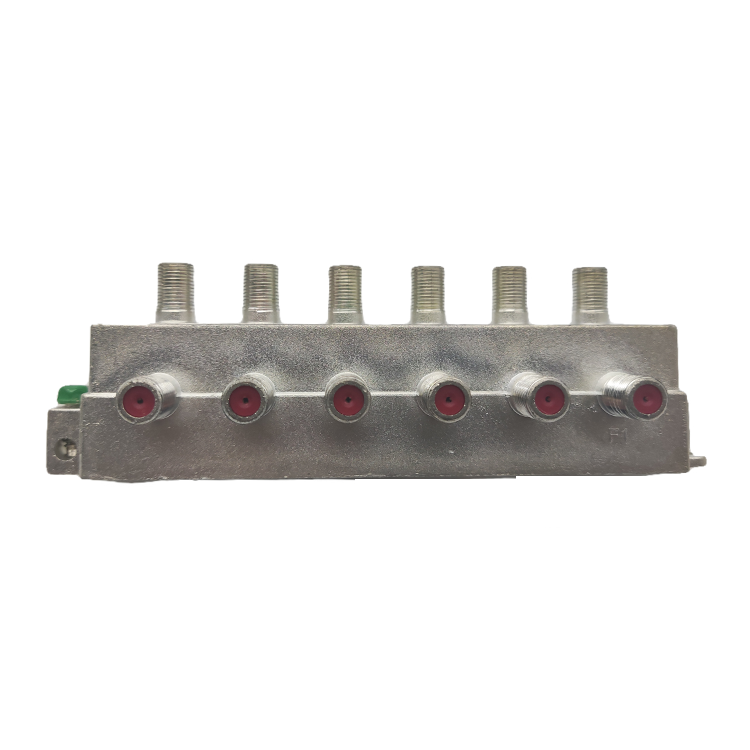

GDST-035 branch distributor

SD MST606

SD MST606,6 dB, 6 puertos, grifo vertical (acoplador direccional), 2-2400 MHz, salida de alimentación a IN, bloque DC @ Tap

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-035(SD MST606)
FREQUENCY (MHz)	5~30	31~250	251~1850	1851~2150
RETURN LOSS (dB MIN.)
IN	-10	-10	-10	-10
OUT	-10	-10	-10	-10
TAP	-10	-10	-10	-10
TAP INSERTION LOSS
TOLERANCE
6dB	6±1.5	6±1.5	6±1.5	6±1.5
INSERTION LOSS (dB MAX.)
IN TO OUT 5~30 MHz	-4
31 ~250 MHz	-4
251~ 1850 MHz	-5
1851~2150 MHz	-5.7
FLATNESS port to port	0.5dB max
OUT TO TAP ISOLATION (dB MAX.)
5~30 MHz	-22
31 ~ 250 MHz	-22
251~1850MHz	-17
1851~2150MHz	-17
IN TO IN / OUT TO OUT / TAP TO TAP ISOLATION (dB MAX.)
5~30 MHz	-35
31 ~ 250 MHz	-35
251~1850MHz	-35
1851~2150MHz	-35
DC PASS	OUT to IN
IMPEDANCE	75 OHM
CONNECTOR	TYPE “F” FEMALE
