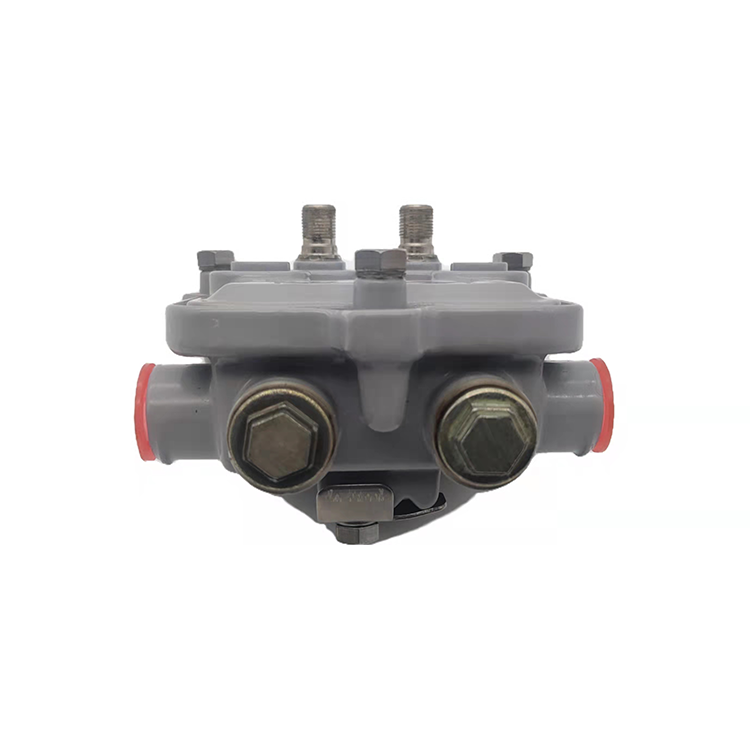

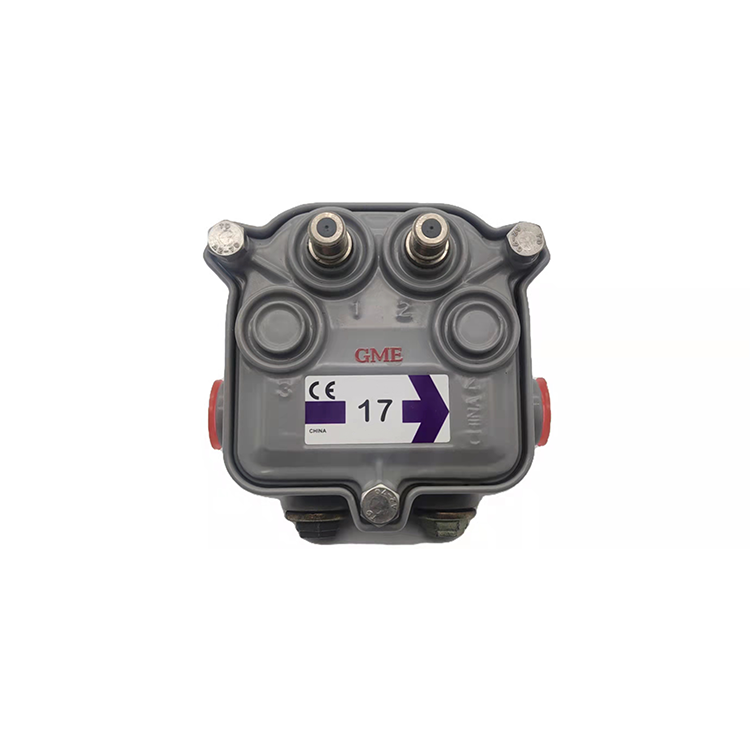

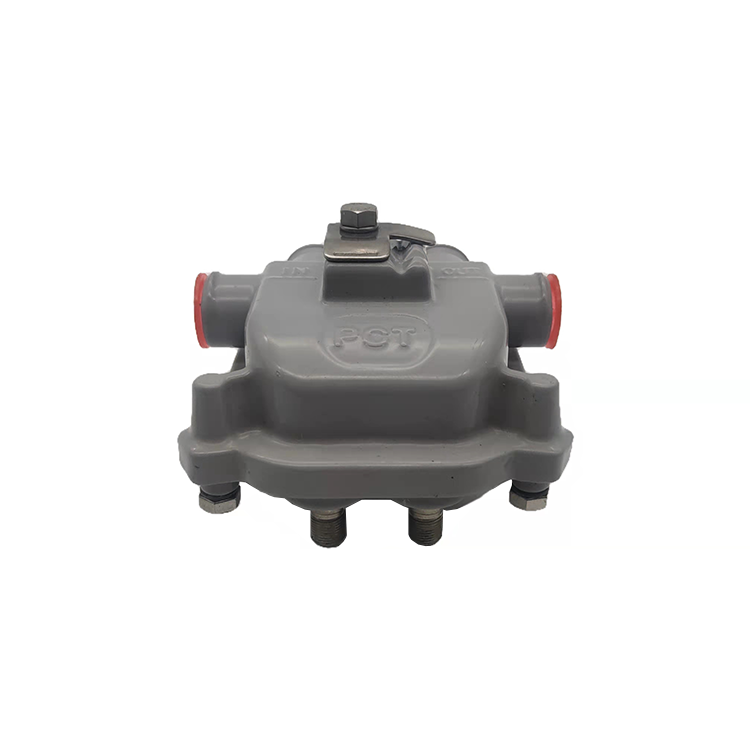

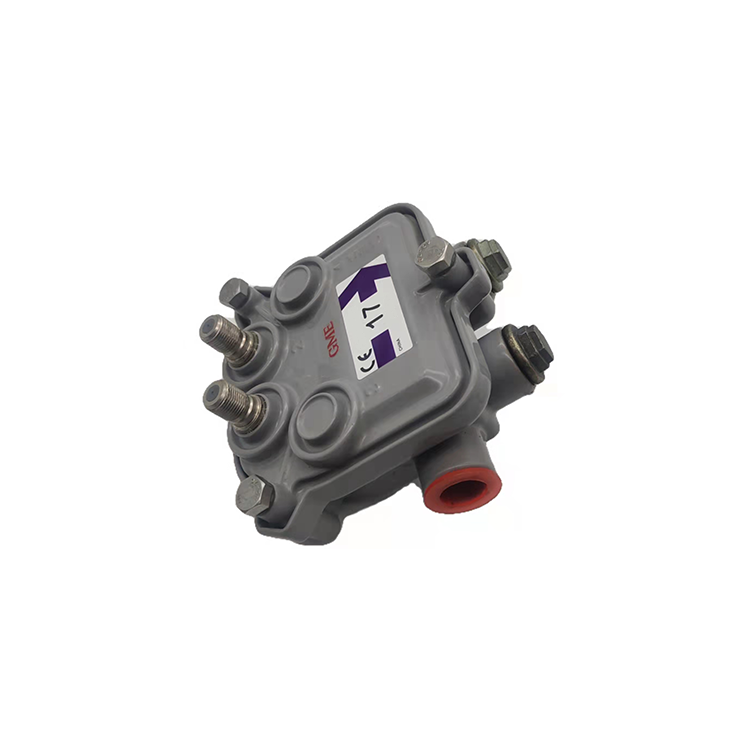

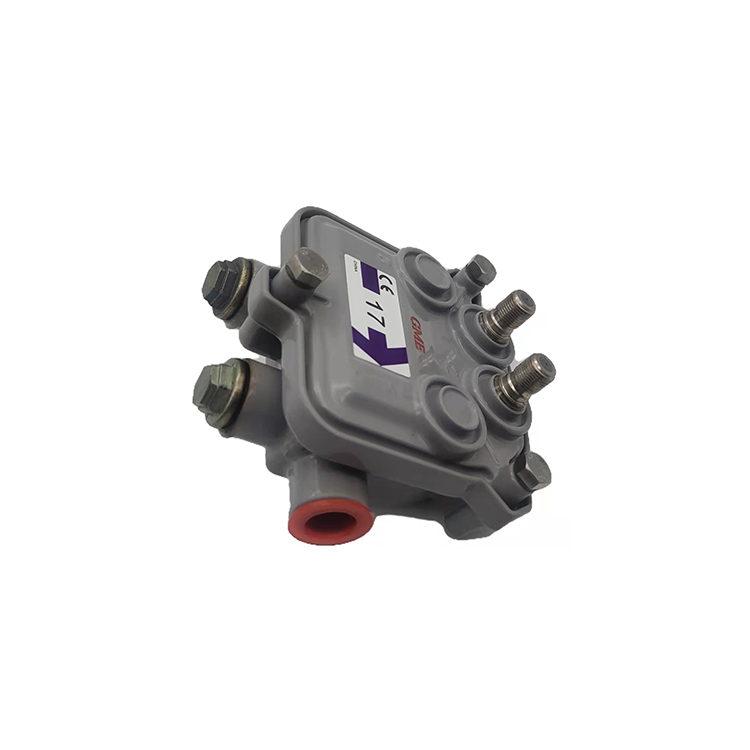

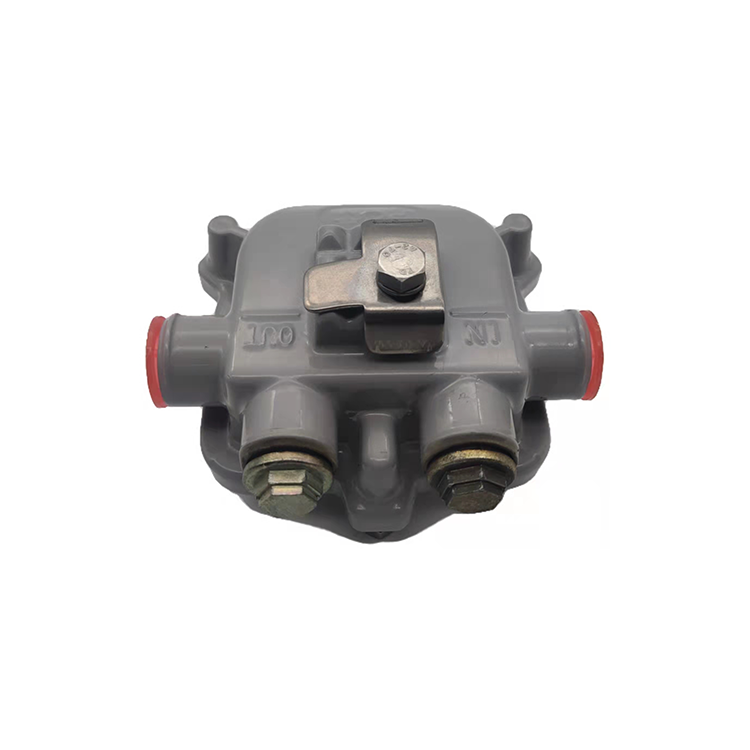

GDST-028 branch distributor

PCT-TP-212

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-028(PCT-TP-212)
ITEM	TEST CONDITION
FREQ. RANGE	5 ~ 1000 MHz
INSERTION LOSS IN-OUT	- 0.5 dB MAX.
RETURN LOSS IN / OUT	- 17 dB MIN.
SYSTEM OPEN CIRCUIT TIME	0 ms
CONTACT RESISTANCE	10m OHMS MAX.
CURRENT AND VOLTAGE CARRYING	12A 90VAC
IMPEDANCE	75 OHMS
POWER PASSING	12A AC/DC (IN-OUT)
WATERPROOF CONDITION	1.0 kg / cm2 60 seconds
HUM MODULATION	-70dB AVERAGE (@ 12A POWER PASSING)
CONNECTOR IN / OUT	5/8″-24NEF FEMALE
TAP	“ F ” TYPE FEMALE
WEIGHT	285g
OPERATING TEMPERATURE	-40℃ TO +60℃
RFI SHIELDING	- 100 dB MIN.
