GDST-027 branch distributor-30 years focus on CATV, MATV & SAT TV. Network Communication OEM/ODM manufacturer

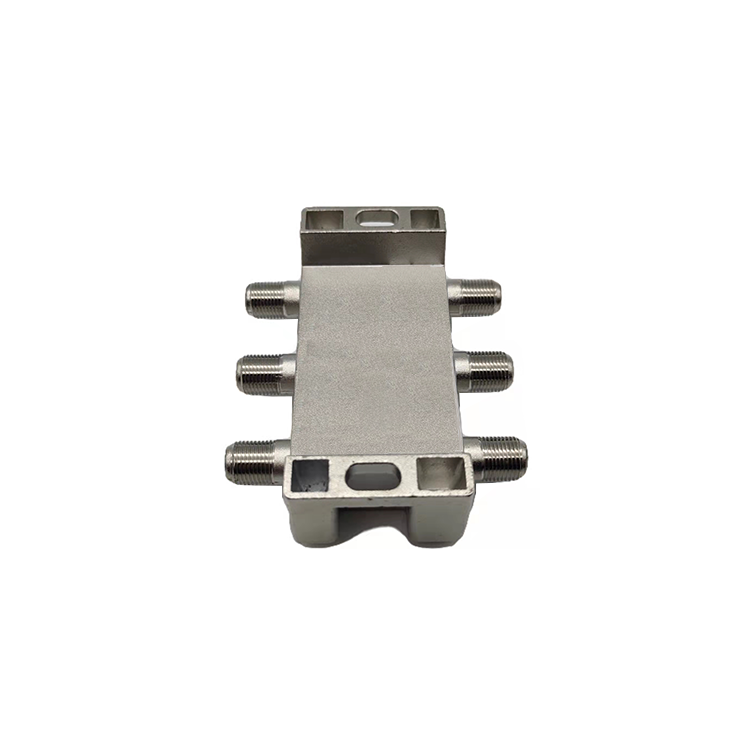

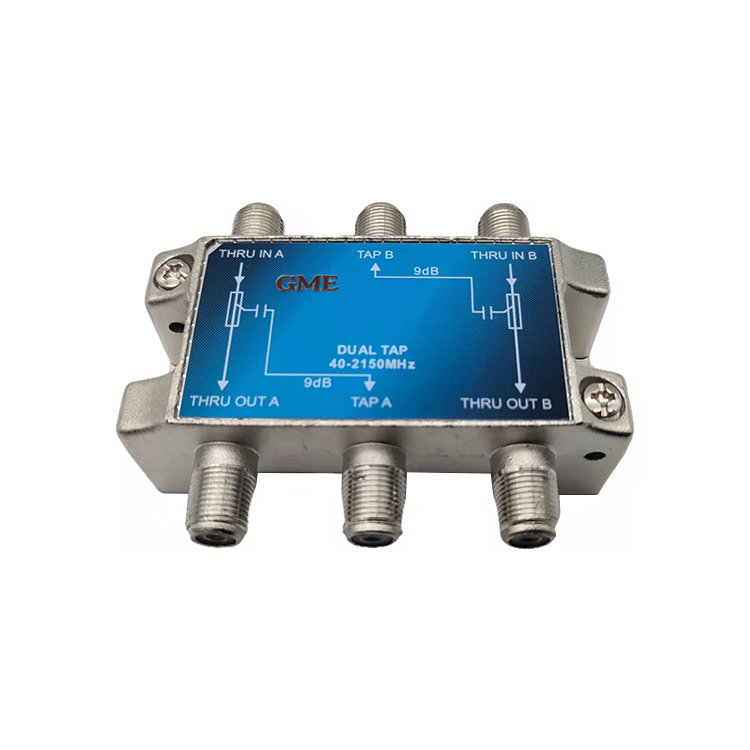

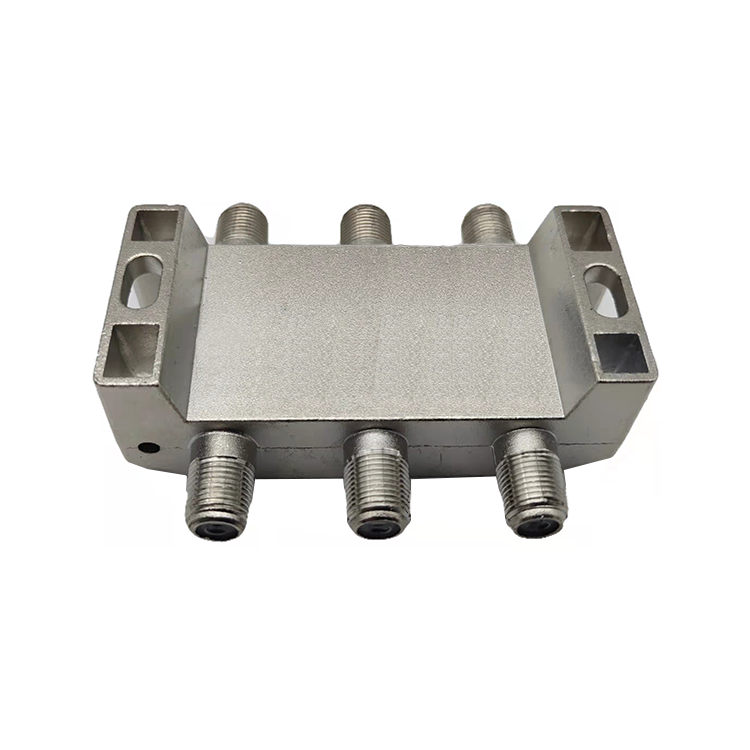

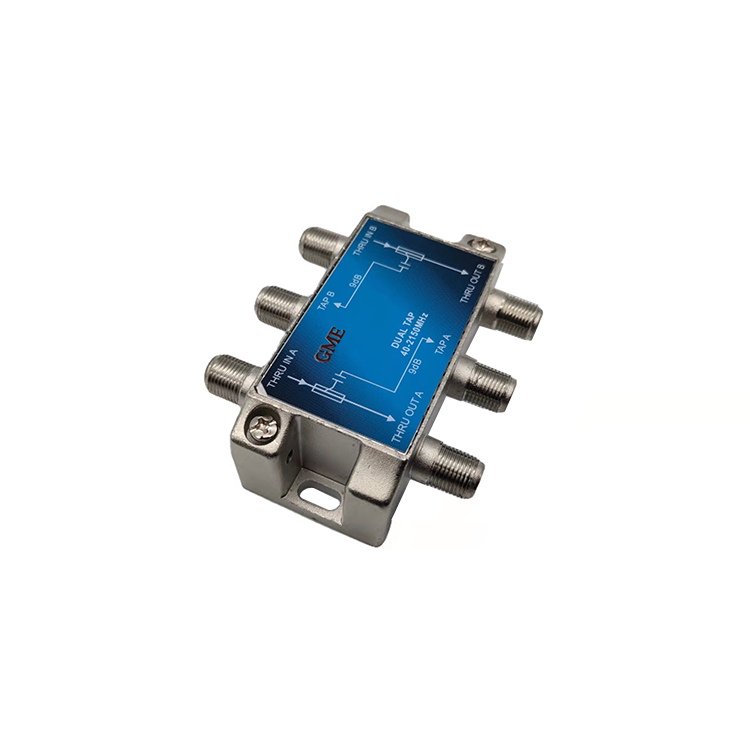

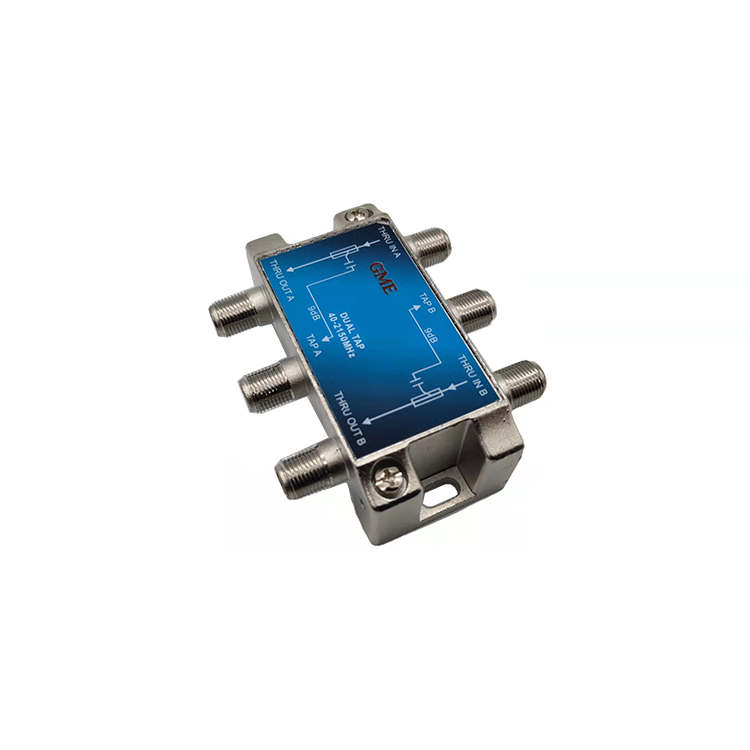

GDST-027 branch distributor

501412

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-027(501412）
FREQUENCY (MHz)	40~470	470~1000	1001~2050
RETURN LOSS (dB MIN.)
IN	-10	-12	-12
OUT	-12	-12	-12
TAP	-12	-12	-12
TAP INSERTION LOSS TOLERANCE 9dB	9±1.5	9±1.5	9±1.8
INSERTION LOSS (dB MAX.) IN TO OUT 40 ~1000 MHz	-2.5
1001~2050 MHz	-4.0
Out to Tap Isolation (dB MIN.) 40 ~ 1000 MHz	-18
1001~2050MHz	-17
Trunk to Trunk Isolation(dB MIN.) 40 ~ 1000 MHz	-50
1001~2050MHz	-50
Trunk to the Other Tap Isolation (dB MIN.) 40 ~2050MHz	-35
DC PASS	OUTóIN
IMPEDANCE	75 OHM
CONNECTOR	TYPE “F” FEMALE
