Place of Origin: Guangdong,China

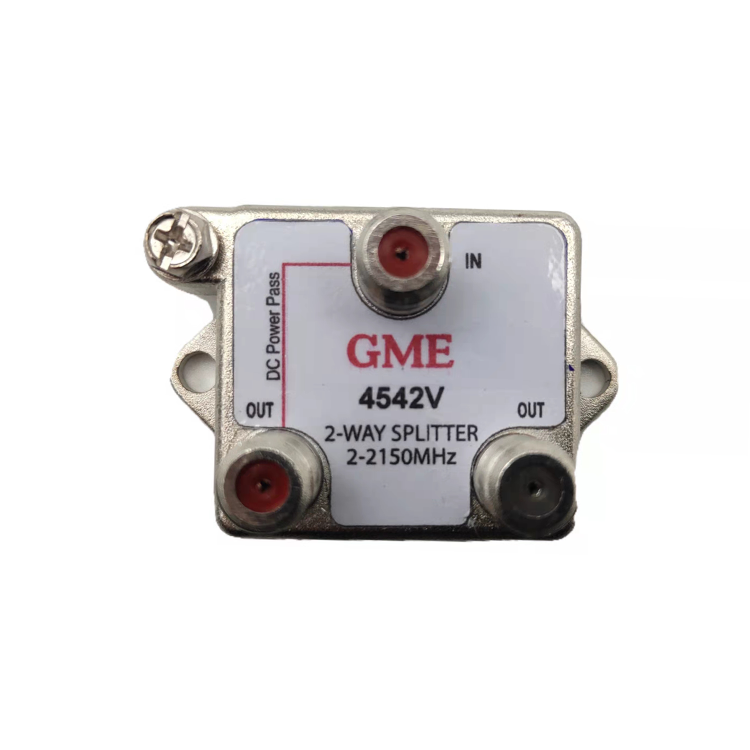

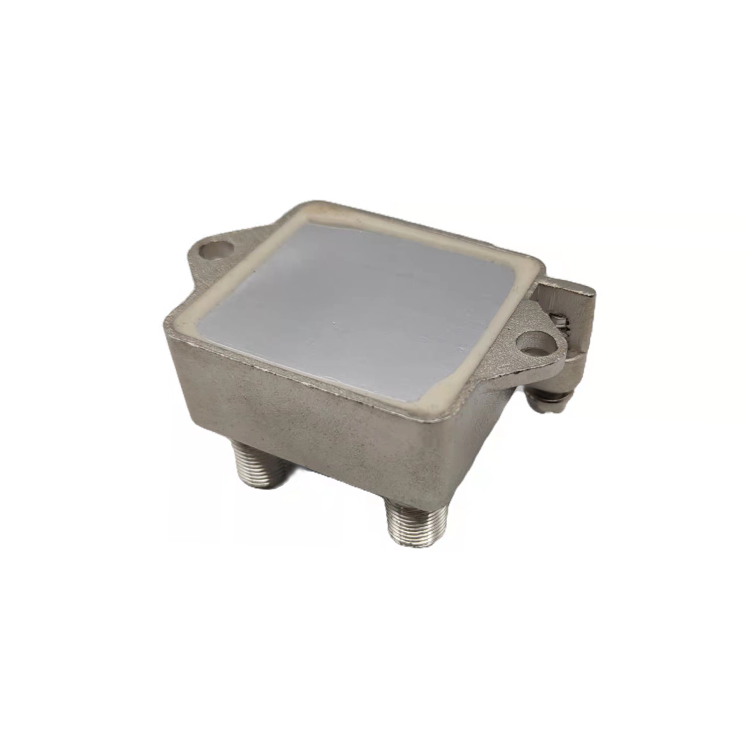

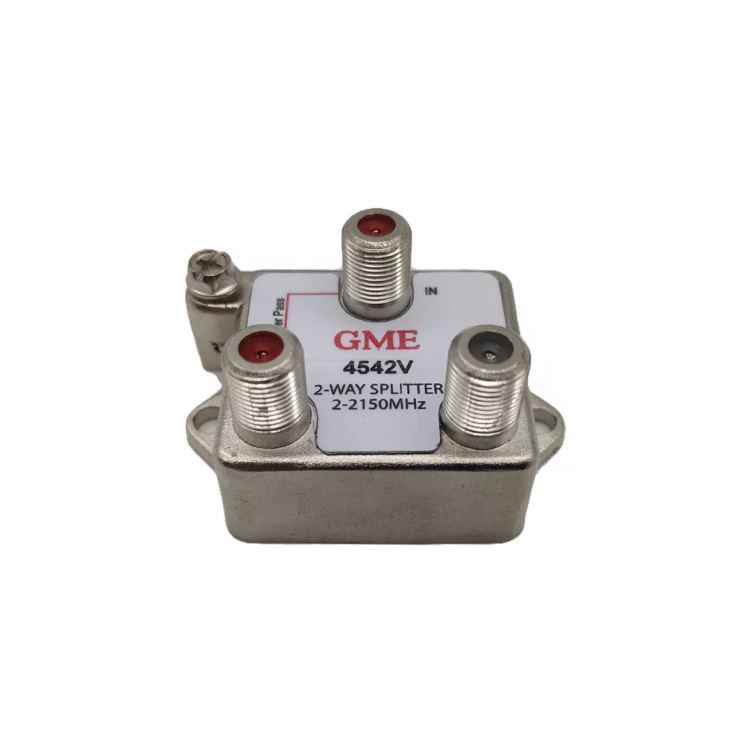

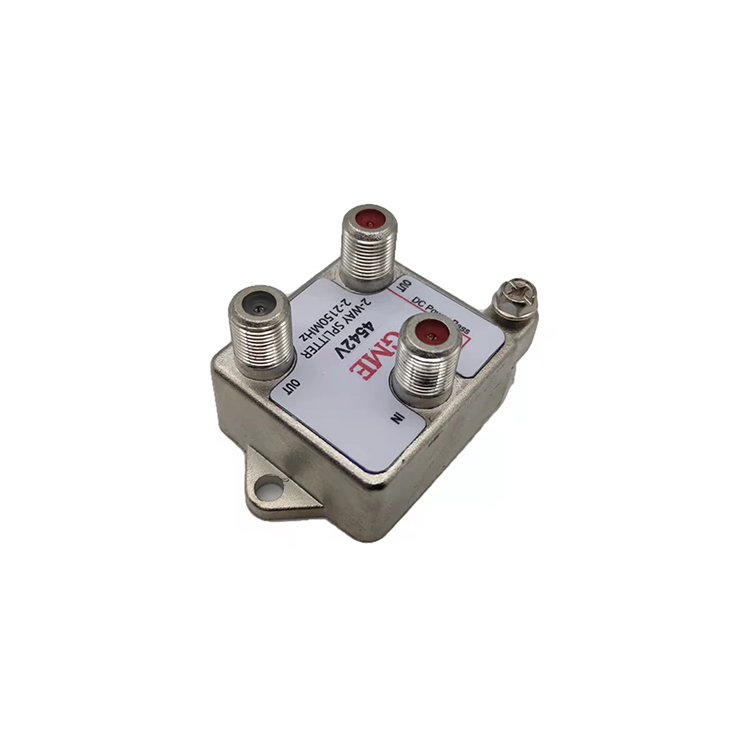

Model Number: GDST-026 (MSAT-2）
ITEM	TYPICAL	Q.C.LIMIT	TEST CONDITIONS
Frequency Range		2 ~ 2150 MHz
Insertion Loss
2 ~ 4 MHz		4.0 dB Max
4 ~ 475 MHz		4.0 dB Max
475 ~ 625 MHz		4.0 dB Max
625 ~ 950 MHz		4.0 dB Max
950 ~ 1820 MHz		4.3 dB Max
1820 ~ 2150 MHz		4.5 dB Max
I/O insertion Flatness
2 ~ 4 MHz		± 0.5dB
475 ~ 625 MHz		± 0.5dB	@Moca over any 50MHz BW
950 ~ 2150 MHz		± 2dB	@ Satellite
		± 0.5dB	@ Satellite over any 36MHz BW
Return Loss: Inputs
2 ~ 4 MHz	10 dB	8 dB Min
475 ~ 625 MHz	10 dB	8 dB Min	@ Moca
950 ~ 2150 MHz	15 dB	10 dB Min	@ Satellite
Return Loss: Outputs
2 ~ 4 MHz	10 dB	8 dB Min
475 ~ 625 MHz	10 dB	8 dB Min	@ Moca
950 ~ 2150 MHz	12 dB	10 dB Min	@ Satellite
Isolation Loss Between Outputs
2 ~ 4 MHz		4.0 dB Max
4 ~ 475 MHz		12 dB Max
475 ~ 625 MHz		10 ±2dB
625 ~ 950 MHz		8dB Min 40dB Max.
950 ~ 1820 MHz		20 dB Min
1820 ~ 2150 MHz		15 dB Min
Isolation Flatness Between Outputs
2 ~ 4 MHz		± 0.5dB
475 ~ 625 MHz		± 2 dB	@ MOCA over 150MHZ BW
DC Power Pass:
Output Port 1 to Input		1500mA max.
Other Output Port		Blocked
Power ports Color		RED
Housing :
Direcast
Ground Stud		2
Operating Temperature Range		-34 ~ 60℃
