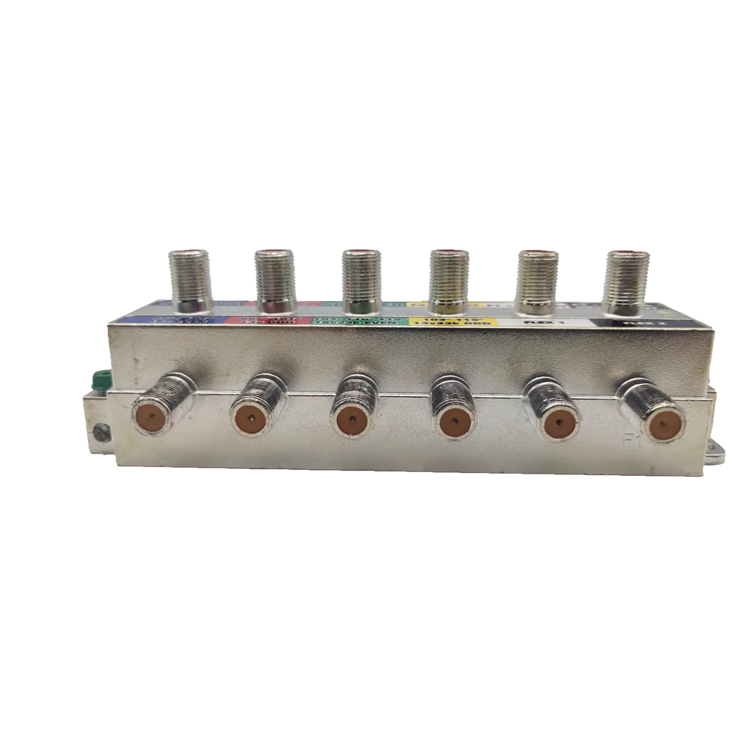

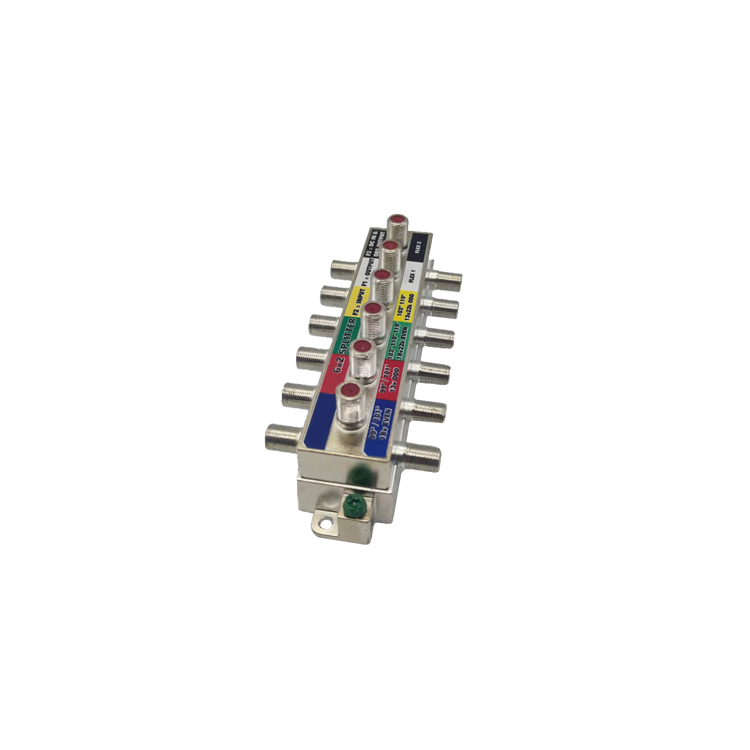

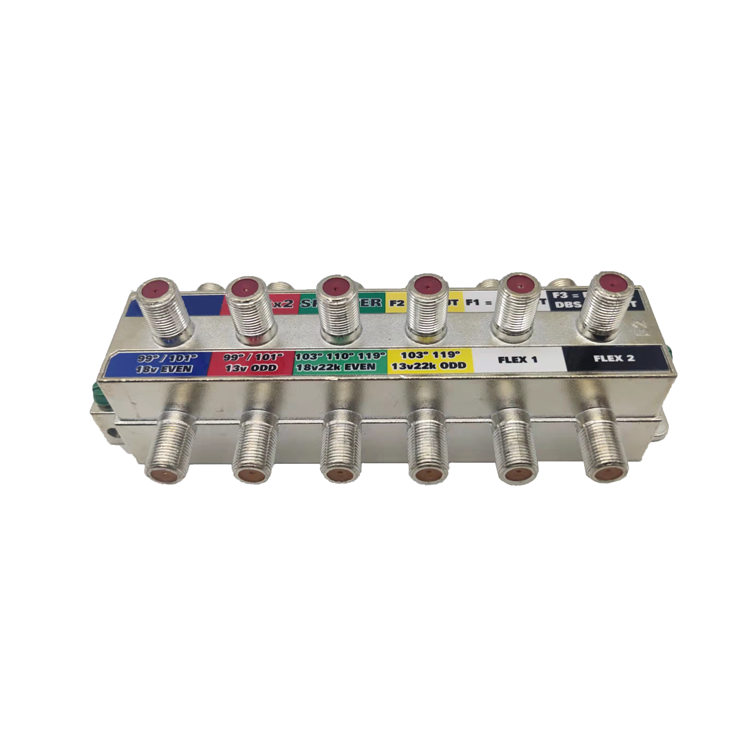

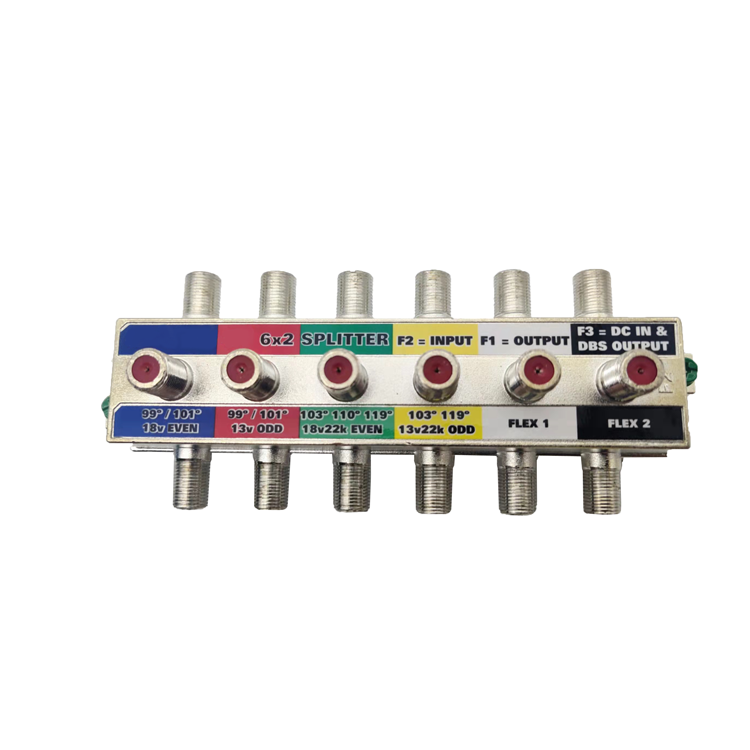

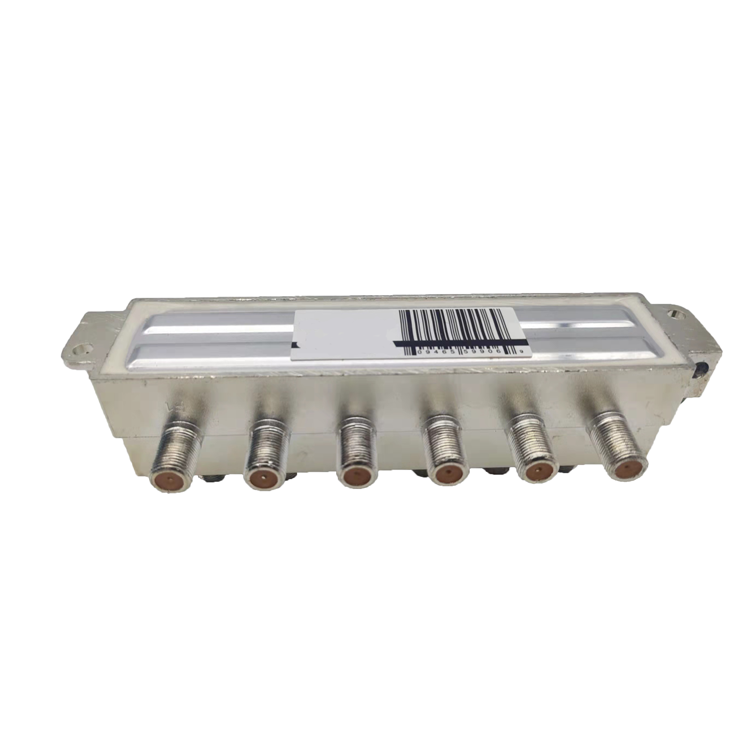

GDST-018 branch distributor

SD SWM-E1

SD SWM-E1, 6 Input, Splitter, Connect (2) SWM8 or SWM16 switches

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-018(SD SWM-E1）
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
1. FREQ. RANGE			5 ~ 2150 MHz
2. INSERTION LOSS
IN TO OUT	- 4.2 dB	- 4.4 dB MAX	5 ~ 30 MHz
	- 4.5 dB	- 4.8 dB MAX	31 ~ 1000 MHz
	- 5.5 dB	- 6.0 dB MAX	1001 ~ 1850 MHz
	- 6.0 dB	- 6.8 dB MAX	1851 ~ 2150MHz

3. ISOLATION
OUT TO OUT	- 16dB	- 14 dB MIN.	5 ~ 30 MHz
	- 22dB	- 20 dB MIN.	31 ~ 1000 MHz
	- 20 dB	- 18 dB MIN.	1001 ~ 1850 MHz
	- 18 dB	- 17 dB MIN.	1851 ~ 2150MHz

4. RETURN LOSS
INPUT	- 12 dB	- 10 dB MIN.	5 ~ 30 MHz
	- 12 dB	- 10 dB MIN.	31 ~ 1000 MHz
	- 12 dB	- 10 dB MIN.	1001 ~ 1850 MHz
	- 12dB	- 10 dB MIN.	1851 ~ 2150MHz

OUTPUT	- 12 dB	- 10 dB MIN.	5 ~ 30 MHz
	- 12 dB	- 10 dB MIN.	31 ~ 1000 MHz
	- 12 dB	- 10 dB MIN.	1001 ~ 1850 MHz
	- 12 dB	- 10 dB MIN.	1851 ~ 2150MHz

5.DC PASS			IN← OUT
6. CONNECTORS		“ F ” TYPE FEMALE
7. IMPEDANCE		75 OHM	ALL PORTS
			ALL PORTS
