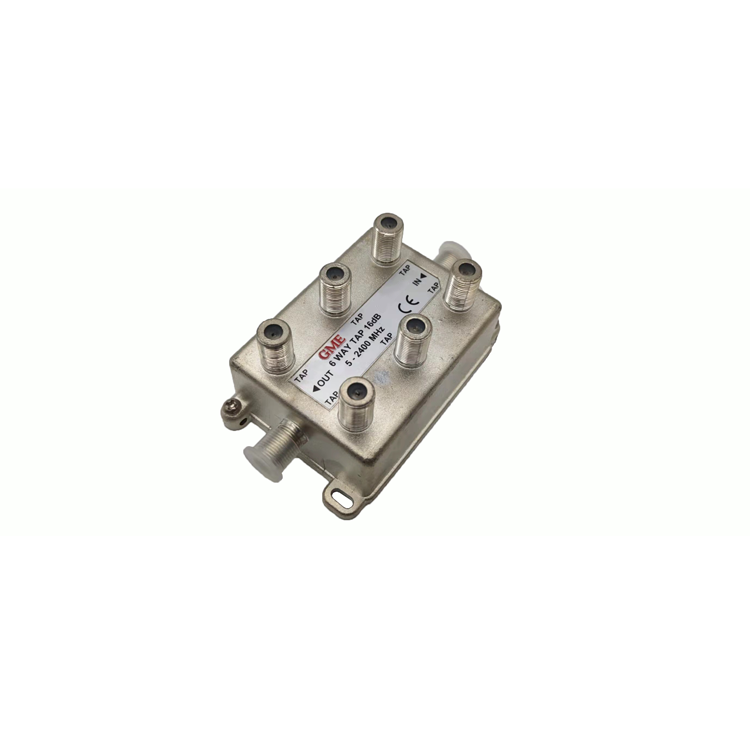

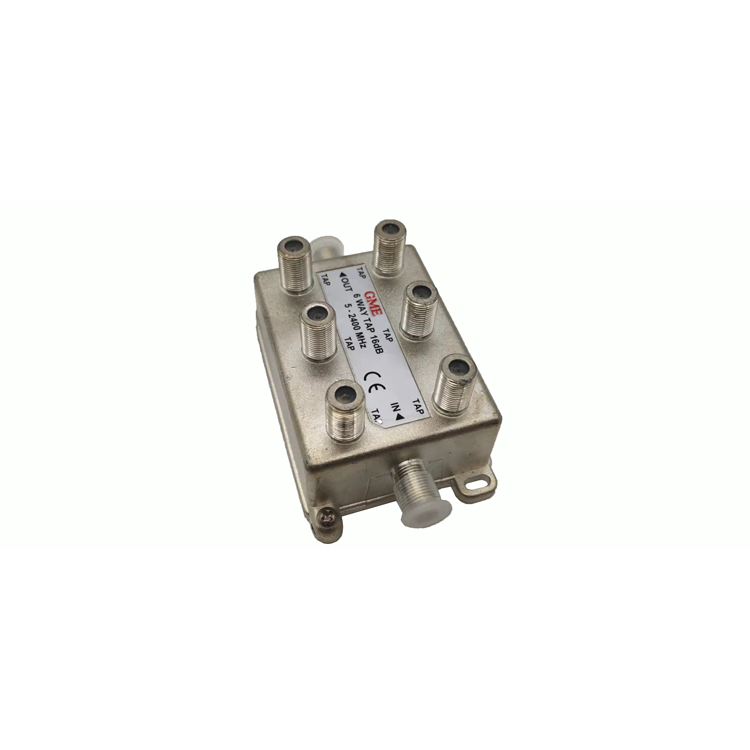

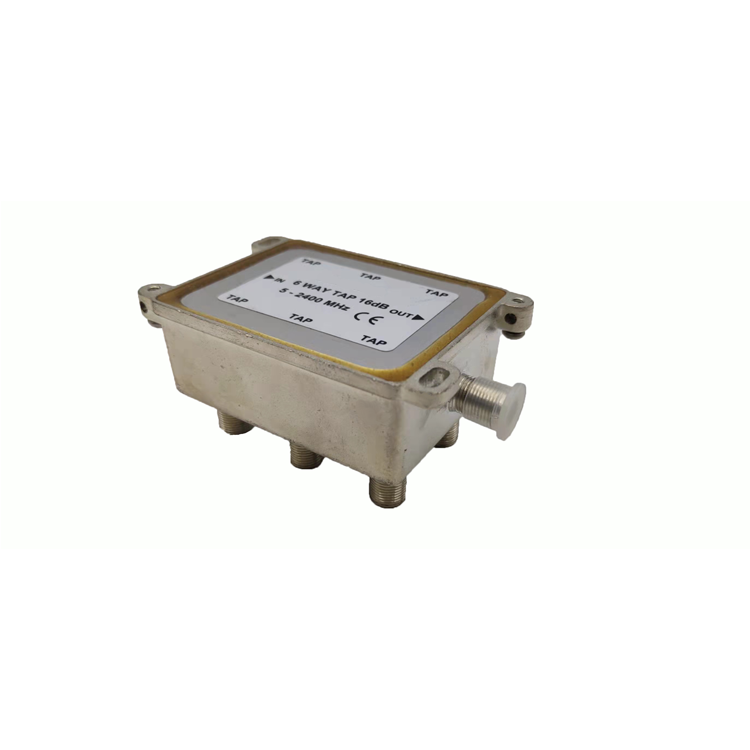

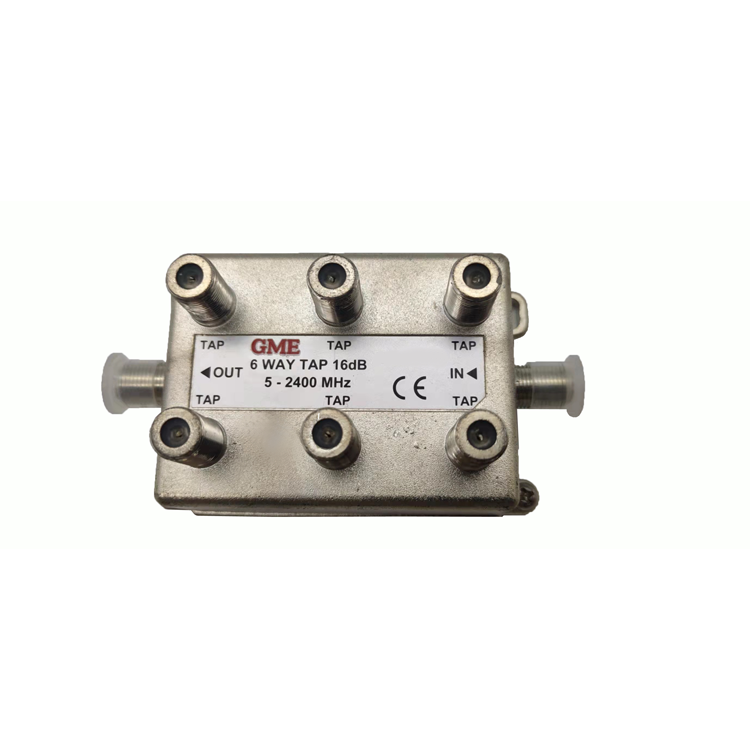

GDST-017 branch distributor
4206TV
6 WAY TAP 16dB
5 - 2400 MHz
5 - 2400 MHz
Consultation hotline：0755-27091915
Online ServiceParameter
| Place of Origin:Guangdong,China | |||
| Model Number:GDST-017(4266) | |||
| DESCRIPTION: 5 ~ 2150 MHz 6 WAY TAPS (16 dB) | |||
| ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS |
| FREQ. RANGE | 5 ~ 2150 MHz | ||
| INSERTION LOSS | |||
| IN TO OUT | - 4.0 dB | - 4.3 dB MAX.. | 5 ~ 84 MHz |
| - 4.2 dB | - 4.4 dB MAX.. | 85 ~ 750 MHz | |
| - 4.6 dB | - 4.8 dB MAX.. | 751 ~ 1000 MHz | |
| - 5.0 dB | - 5.5 dB MAX.. | 1001 ~ 2150 MHz | |
| IN TO TAP | - 16 ± 1.2 dB | - 16 ± 1.5 dB | 5 ~ 84 MHz |
| - 16 ± 1.5 dB | - 16 ± 1.7 dB | 85 ~ 750 MHz | |
| - 16 ± 1.5 dB | - 16 ± 1.7 dB | 751 ~ 1000 MHz | |
| - 17 ± 2.5 dB | - 17 ± 2.8 dB | 1001 ~ 2150 MHz | |
| ISOLATION | |||
| TAP TO TAP | - 20 dB | - 17 dB MIN. | 5 ~ 84 MHz |
| - 23 dB | - 20 dB MIN. | 85 ~ 750 MHz | |
| - 20 dB | - 17 dB MIN. | 751 ~ 1000 MHz | |
| - 20 dB | - 17 dB MIN. | 1001 ~ 2150 MHz | |
| TAP TO OUT | - 25 dB | - 22 dB MIN. | 5 ~ 84 MHz |
| - 25 dB | - 22 dB MIN. | 85 ~ 750 MHz | |
| - 25 dB | - 22 dB MIN. | 751 ~ 1000 MHz | |
| - 25 dB | - 20 dB MIN. | 1001 ~ 2150 MHz | |
| RETURN LOSS | |||
| IN | - 12 dB | - 10 dB MIN. | 5 ~ 84 MHz |
| - 12 dB | - 8 dB MIN. | 85 ~ 750 MHz | |
| - 12 dB | - 8 dB MIN. | 751 ~ 1000 MHz | |
| - 12 dB | - 8 dB MIN. | 1001 ~ 2150 MHz | |
| OUT | - 12 dB | - 9 dB MIN. | 5 ~ 84 MHz |
| - 10 dB | - 8 dB MIN. | 85 ~ 750 MHz | |
| - 10 dB | - 8 dB MIN. | 751 ~ 1000 MHz | |
| - 10 dB | - 8 dB MIN. | 1001 ~ 2150 MHz | |
| TAP | - 12 dB | - 8 dB MIN. | 5 ~ 84 MHz |
| - 12 dB | - 10 dB MIN. | 85 ~ 750 MHz | |
| - 10 dB | - 7 dB MIN. | 751 ~ 1000 MHz | |
| - 10 dB | - 7dB MIN. | 1001 ~ 2150 MHz | |
| DC PASS | IN←→OUT | ||
| IMPEDANCE | 75 OHM | ALL PORTS | |
| CONNECTOR | “ F ” FEMALE | ALL PORTS | |
| THREAD LENGTH | ≧12.5 mm | 12.5 +0.5 -0 mm | |
| OUTER DIAMETER | Φ 9.35 mm | Φ 9.35 +0.02 -0.05 mm | |
| DIMENSIONS | L 96×D 56×H 42(mm) | ||
