Parameter
| Place of Origin:Guangdong,China | |||
| Model Number:GDST-015(5172) | |||

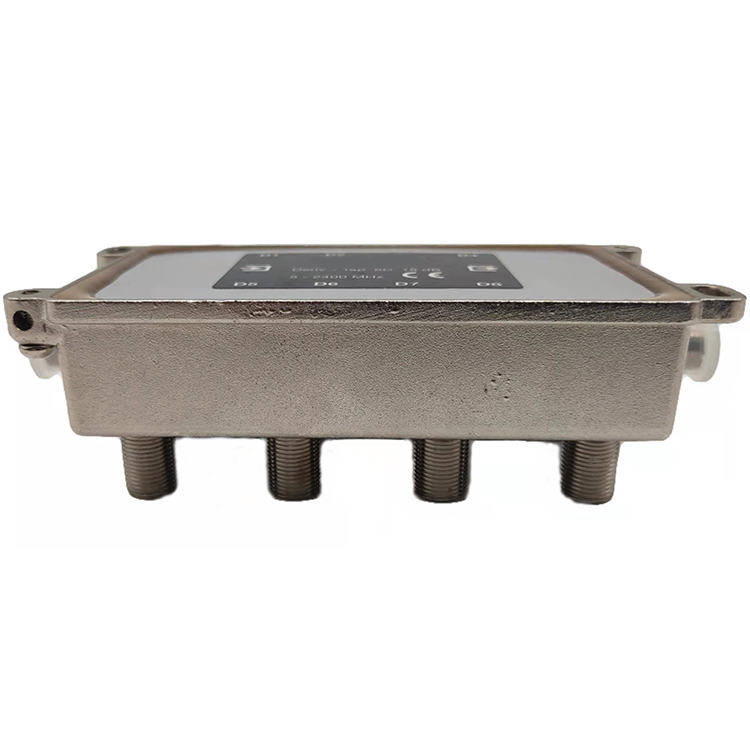

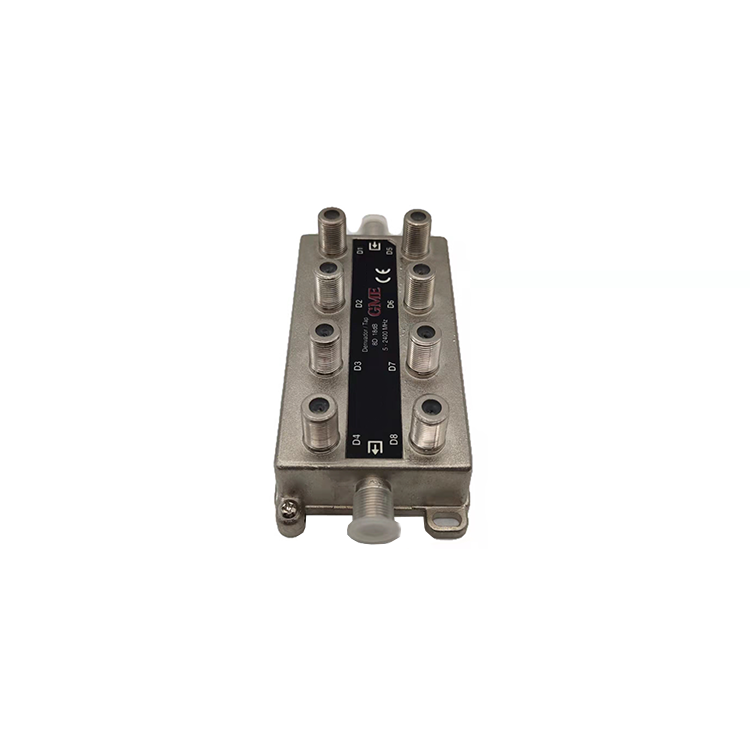

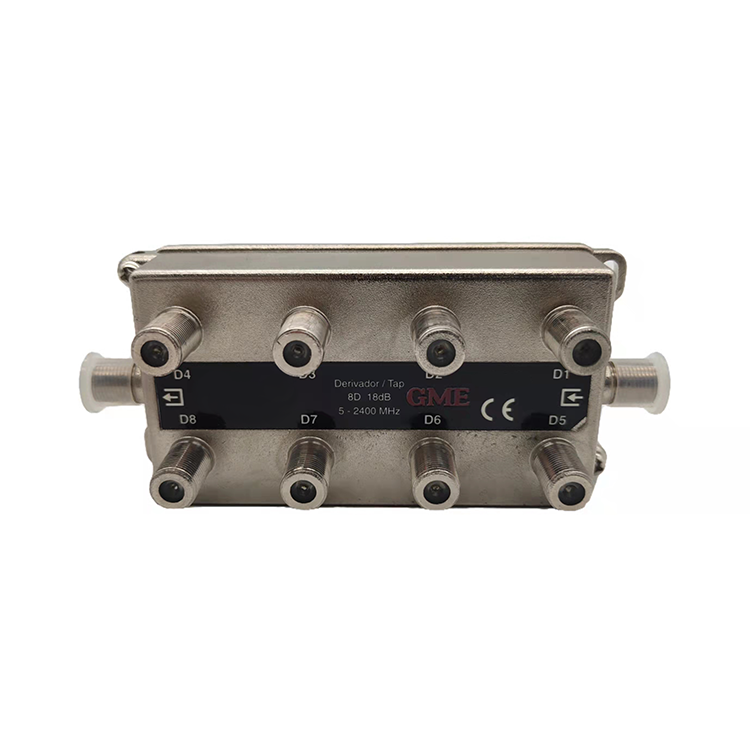

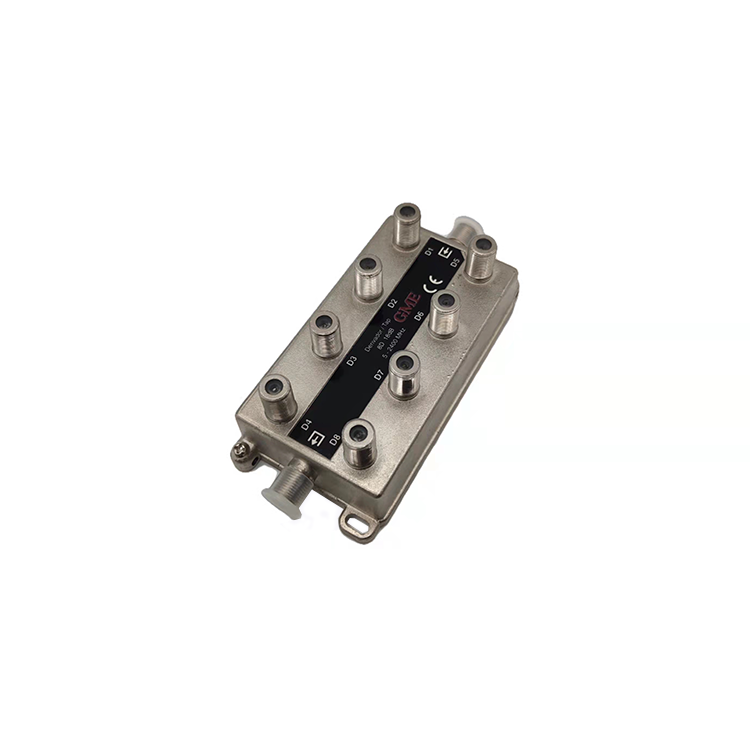

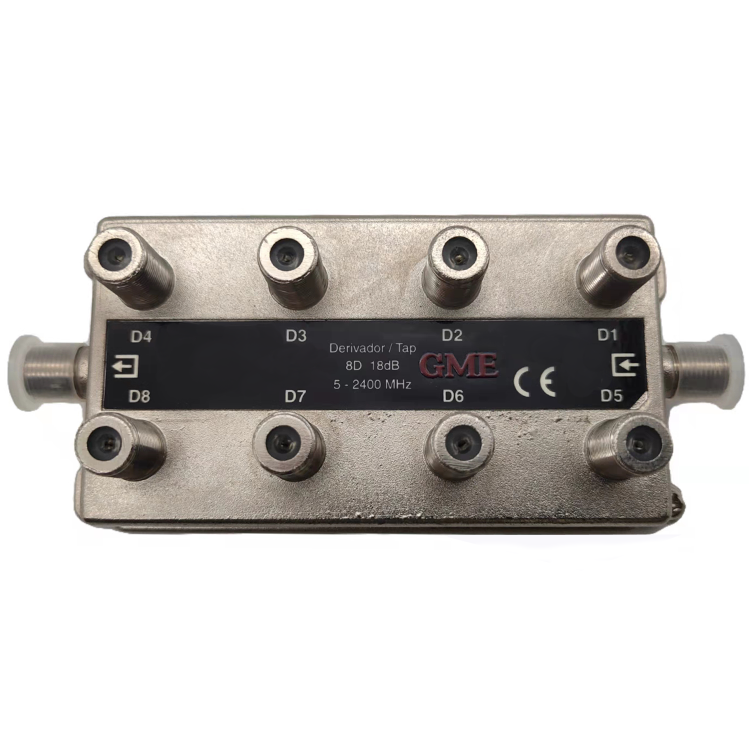

| DESCRIPTION: 5 ~ 2400 MHz 8 WAY TAPS (18 dB) | |||
| ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS |
| FREQ. RANGE | 5 ~ 2400 MHz | ||
| INSERTION LOSS | |||
| IN TO OUT | - 3.3 dB | - 3.5dB MAX. | 5 ~ 40 MHz |
| - 4.0 dB | - 4.3 dB MAX. | 41 ~ 860 MHz | |
| - 6.0 dB | - 6.5 dB MAX. | 861 ~ 2150 MHz | |
| - 6.5 dB | - 6.8 dB MAX. | 2151 ~ 2400 MHz | |
| IN TO TAP | - 18 ± 1.2 dB | - 18 ± 1.5 dB | 5 ~ 40 MHz |
| - 18 ± 1.5 dB | - 18 ± 2.0 dB | 41 ~ 860 MHz | |
| - 19 ± 2.0 dB | - 19 ± 2.5 dB | 861 ~ 2150 MHz | |
| - 19 ± 2.5 dB | - 19 ± 3.0 dB | 2151 ~ 2400 MHz | |
| ISOLATION | |||
| TAP TO TAP | - 28 dB | - 26 dB MIN. | 5 ~ 40 MHz |
| - 25 dB | - 20 dB MIN. | 41 ~ 860 MHz | |
| - 20 dB | - 16 dB MIN. | 861 ~ 2150 MHz | |
| - 20 dB | - 16 dB MIN. | 2151 ~ 2400 MHz | |
| TAP TO OUT | - 36 dB | - 34 dB MIN. | 5 ~ 40 MHz |
| - 25 dB | - 22 dB MIN. | 41 ~ 860 MHz | |
| - 22 dB | - 20 dB MIN. | 861 ~ 2150 MHz | |
| - 22 dB | - 20 dB MIN. | 2151 ~ 2400 MHz | |
| RETURN LOSS | |||
| IN | - 12 dB | - 10 dB MIN. | 5 ~ 40 MHz |
| - 12 dB | - 10 dB MIN. | 41 ~ 860 MHz | |
| - 12 dB | - 10 dB MIN. | 861 ~ 2150 MHz | |
| - 12 dB | - 10 dB MIN. | 2151 ~ 2400 MHz | |
| OUT | - 14 dB | - 12 dB MIN. | 5 ~ 40 MHz |
| - 12 dB | - 10 dB MIN. | 41 ~ 860 MHz | |
| - 12 dB | - 10 dB MIN. | 861 ~ 2150 MHz | |
| - 12 dB | - 10 dB MIN. | 2151 ~ 2400 MHz | |
| TAP | - 14 dB | - 10 dB MIN. | 5 ~ 40 MHz |
| - 12 dB | - 10 dB MIN. | 41 ~ 860 MHz | |
| - 10 dB | - 9 dB MIN. | 861 ~ 2150 MHz | |
| - 10 dB | - 9 dB MIN. | 2151 ~ 2400 MHz | |
| DC PASS | IN←→OUT | ||
| IMPEDANCE | 75 OHM | ALL PORTS | |
| CONNECTOR | “ F ” FEMALE | ALL PORTS | |
| THREAD LENGTH | ≧12.5 mm | 12.5 +0.5 -0 mm | |
| OUTER DIAMETER | Φ 9.35 mm | Φ 9.35 +0.02 -0.05 mm | |
| DIMENSIONS | L 121×D 56×H 37(mm) | ||
