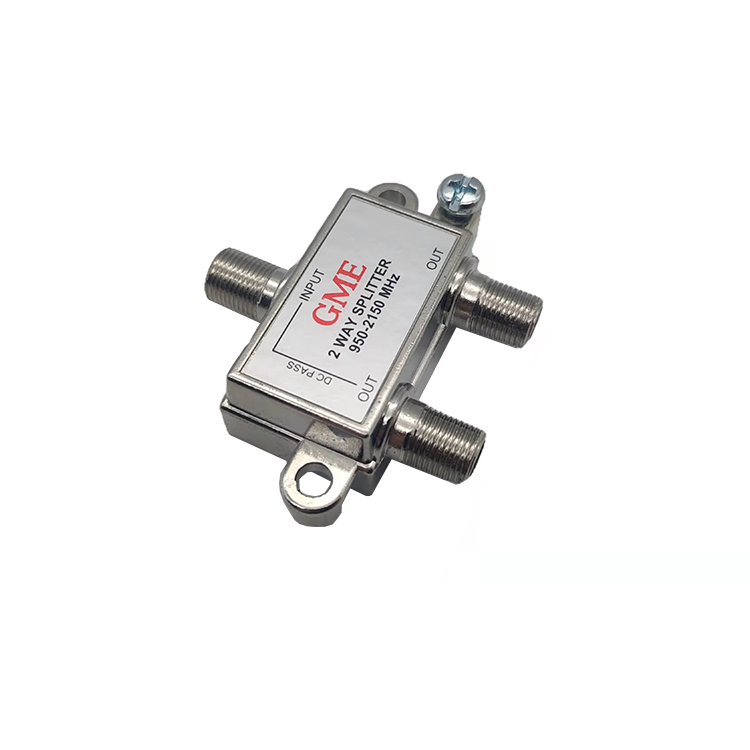

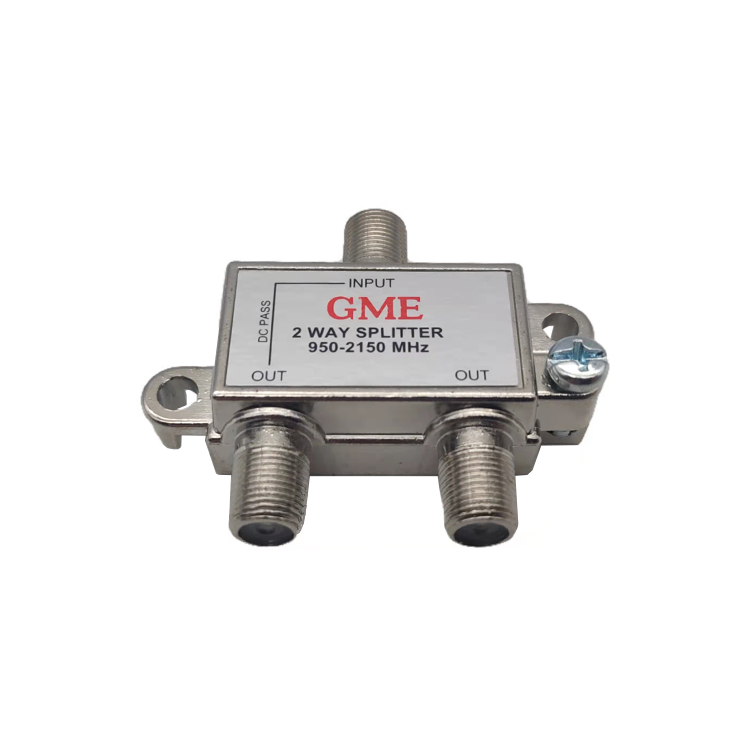

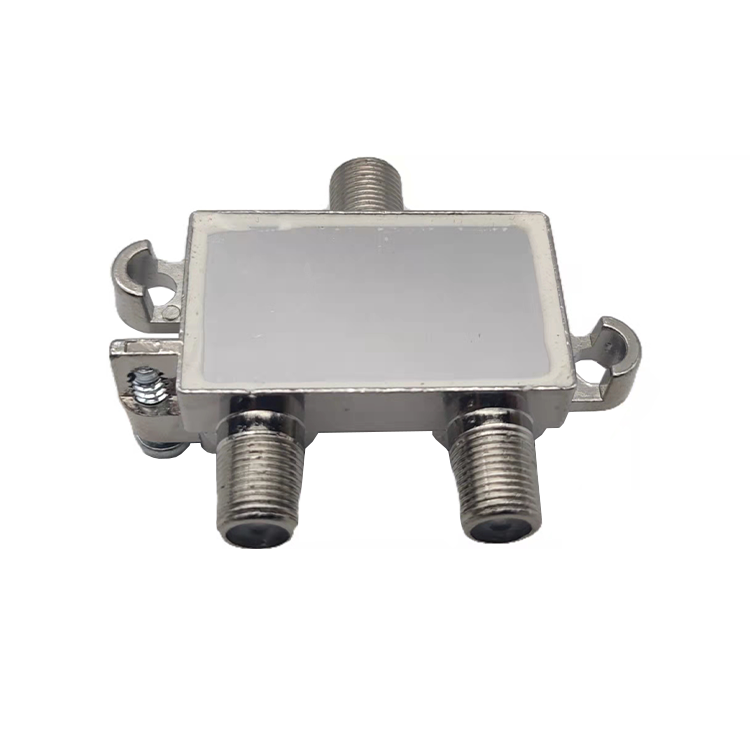

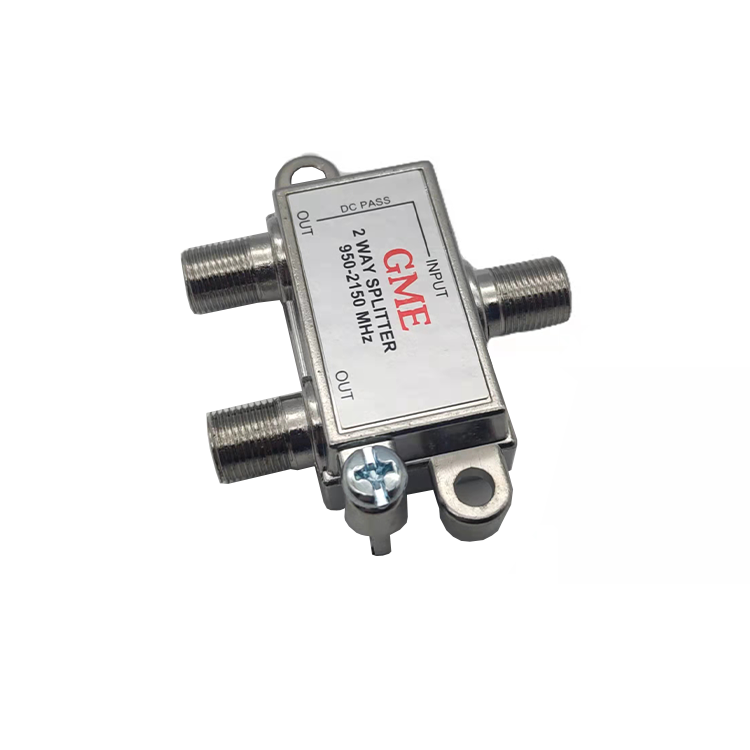

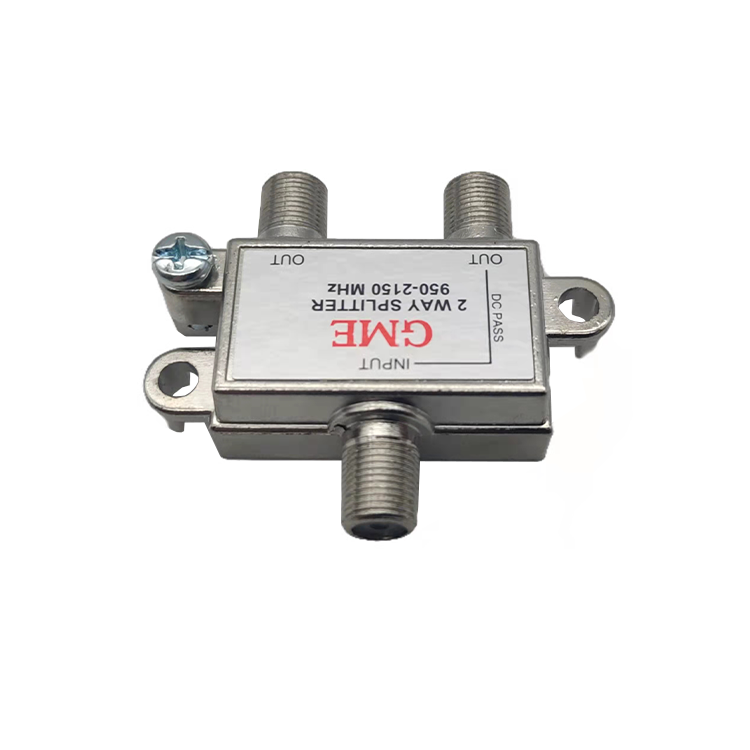

GDST-012 branch distributor

4532H
2 WAY SPLITTER
950-2150MHz

Consultation hotline：0755-27091915

Online Service

Parameter

Place of origin: China
MODEL NO. : GDST-012 (4532H）
DESCRIPTION: 950 ~ 2150 MHz 2 WAY SPLITTER
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
1. FREQ. RANGE
950~ 2150 MHz
2. INSERTION LOSS
-3.8dB
- 4.5 dB MAX.
950 ~ 2150 MHz
3. ISOLATION
- 21 dB
- 20 dB MIN.
950 ~ 2150 MHz
4. RETURN LOSS
    IN/OUT
- 11 dB
- 10 dB MIN.
950 ~ 2150 MHz
5. IMPEDANCE
75 OHM
ALL PORTS
6. CONNECTORS
“F” FEMALE
ALL PORTS
7. DC PASS
OUT2 - IN
8. DIENSIONS (L×D×H)
58×51×16.5 mm
9.WEIGHT
47g
