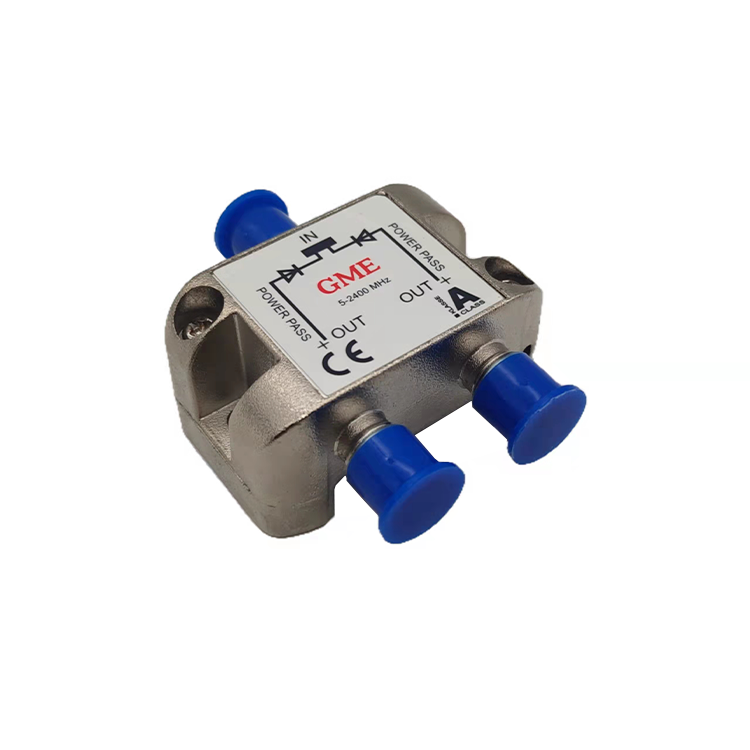

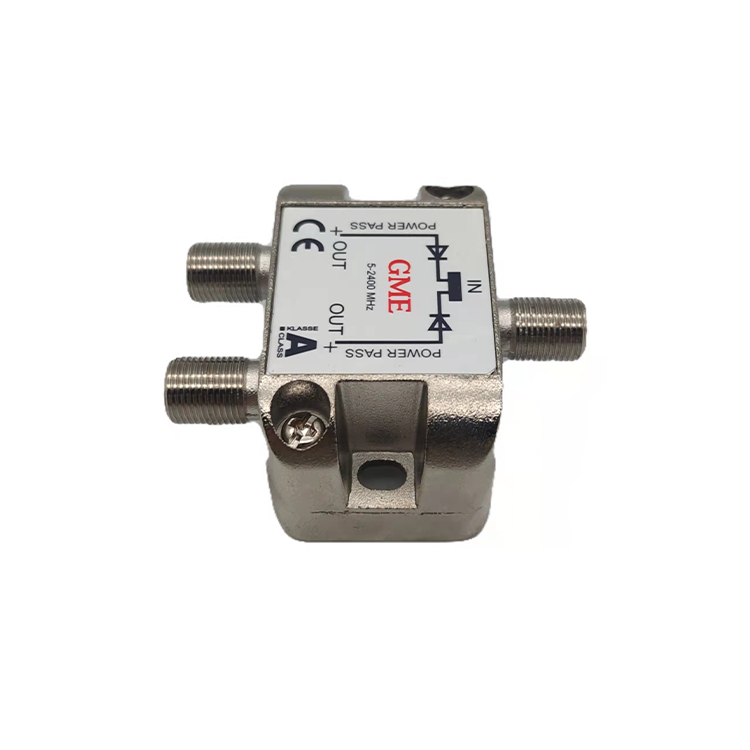

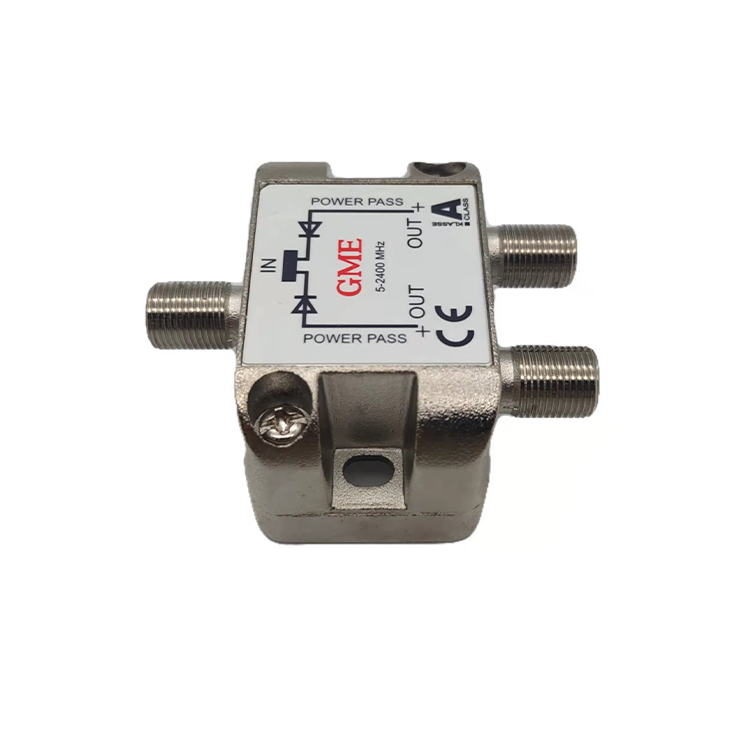

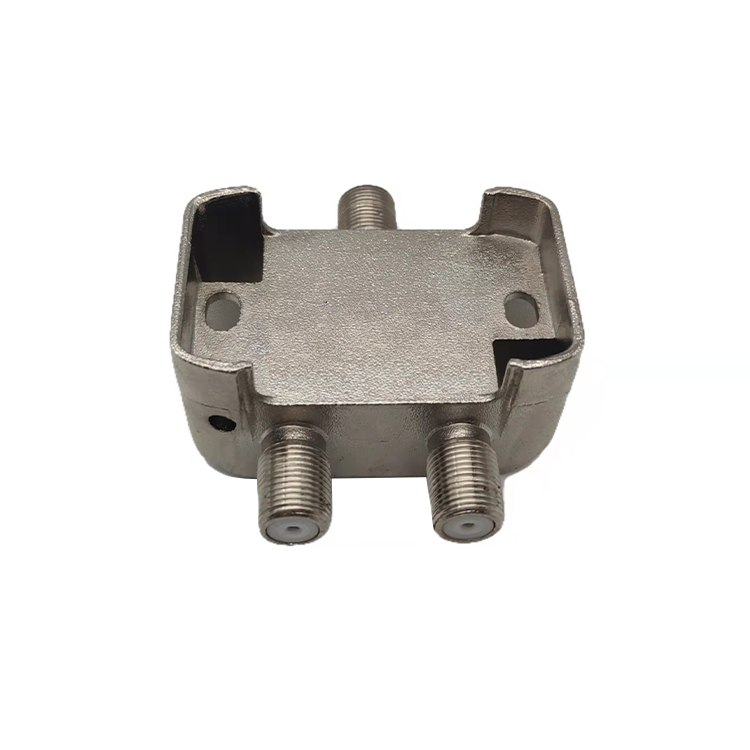

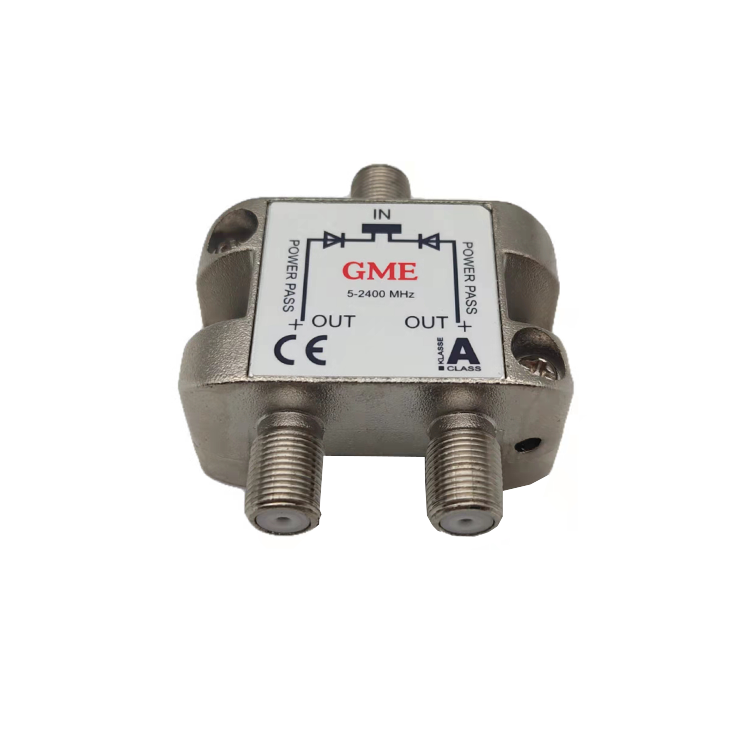

GDST-007 branch distributor

4202S

Two-way F distributor 5-2400 MHz, screening class A, potential equalisation connection, remote feeding max. 24 V/0.5 A (2 outputs), decoupling diodes OUT->IN

Consultation hotline：0755-27091915

Online Service

Details
Online Message

Parameter

Place of origin: China
MODEL NO.: GDST-007 (4202S）
DESCRIPTION: 5 ~ 2400 MHz 2 WAY SPLITTER
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE			5 ~ 2400 MHz
INSERTION LOSS (IN TO OUT)	- 4.0 dB	- 4.0 dB MAX.	5 ~ 47 MHz
	- 4.5 dB	- 5.0 dB MAX.	47 ~ 862 MHz
	- 5.2 dB	- 6.0 dB MAX.	862 ~ 1750 MHz
	- 5.8 dB	- 6.0 dB MAX.	1750 ~ 2150 MHz
	- 7.5 dB	- 8.0 dB MAX.	2150 ~ 2400 MHz
ISOLATION (OUT TO OUT)	- 12 dB	- 10 dB MIN.	5 ~ 47 MHz
	- 22 dB	- 20 dB MIN.	47 ~ 862 MHz
	- 20 dB	- 20~-15 dB MIN.	862 ~ 2150 MHz
	- 12 dB	- 10 dB MIN.	2150 ~ 2400 MHz
RETURN LOSS INPUT	- 11 dB	-10dB MIN.	5 ~ 47 MHz
	-12.5 dB	- 14 dB MIN.	47 ~ 862 MHz
	- 11 dB	- 10 dB MIN.	862 ~ 1750 MHz
	- 11 dB	- 10 dB MIN.	1750 ~2150 MHz
	- 11 dB	- 10 dB MIN	2150 ~ 2400 MHz
OUTPUT	- 11 dB	- 10 dB MIN.	5 ~ 47 MHz
	- 15 dB	- 14 dB MIN.	47 ~ 862MHz
	- 11 dB	- 10 dB MIN.	862 ~ 1750 MHz
	- 11dB	- 10 dB MIN.	1750 ~ 2150 MHz
	- 11 dB	- 10 dB MIN.	2150 ~ 2400 MHz
DC PASS			OUT → IN
IMPEDANCE		75 OHM	ALL PORTS
CONNECTORS		“ F ” FEMALE	ALL PORTS
DIMENSIONS		L 51.2×D 57.2×H 26 mm
