Place of origin: China
|
|
MODEL NO.: GDST-005 (4542T-20dB）
|
|

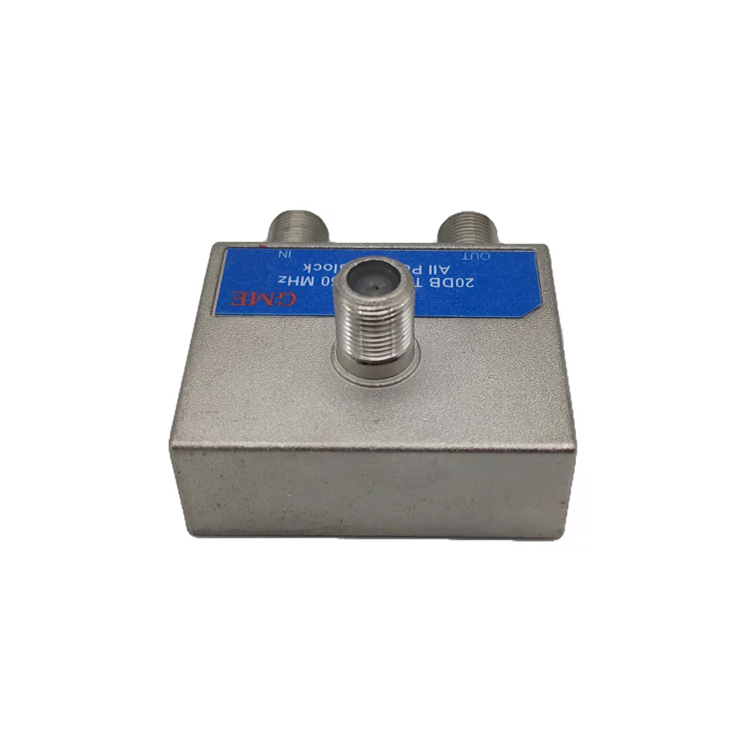

DESCRIPTION: Satellite Tap
|
|
|
|
|
|
|
System Impedance
|
|
|
|
|
Operating IF Frequency Range
|
|
|
|
|
Input port to Output port
|
|
|
2-2150 MHz
|
|
Input port to Tap port
|
|
|
2-2150 MHz
|
|
Flatness in operating frequency range
|
|
±0.2dB max.
|
Over any 36 MHz within the 950-2150 MHz satellite band
|
|
±0.5dB max.
|
Over any 50 MHz within the 475-625 MHz satellite band
|
|
±0.5dB max.
|
within the 2-4 MHz FSK band
|
|
Number of Input ports
|
|
|
All ports shall have 1“ spacing. Ref D-1
|
|
Number of Output ports
|
|
|
All ports shall have I ” spacing. Ref D-1
|
|
Number of Tap ports
|
|
|
All ports shall have 1“ spacing. Ref D-1
Note: All Tap ports shall block DC voltage
|
|
Return Loss
|
|
|
|
|
Input port (applies to all tap values)
|
|
-lldB min.
|
2-475 MHz
|
|
-12dB min.
|
475-625 MHz
|
|
-l2dB min.
|
950-2150 MHz
|
|
Output port (applies to all tap values)
|
|
-lldB min.
|
2-475 MHz
|
|
-12dB min.
|
475-625 MHz
|
|
-l2dB min.
|
950-2150 MHz
|
|
Tap port (applies to all tap values)
|
|
-lldB min.
|
2-475 MHz
|
|
-l2dB min.
|
475-625 MHz
|
|
-12dB min.
|
950-2150 MHz
|
|
20dB Tap Insertion Loss
|
|
|
|
|
Input port to Output port
|
|
-1.3dB max.
|
2-475 MHz
|
|
-1.5dB max.
|
475-625 MHz
|
|
-2.5dB max.
|
950-1820 MHz
|
|
-2.7dB max.
|
1820-2150 MHz
|
|
|
Max. over all Temperature Range and Defined Frequencies
|
|
Input port to Tap port
|
|
-19.2-21.2dB
|
2-475 MHz
|
|
-19.2-21.2dB
|
475-625 MHz
|
|
-19.2-21.2dB
|
950-1820 MHz
|
|
-19.2-21.2dB
|
1820-2150 MHz
|
|
|
Max. over all Temperature Range and Defined Frequencies
|
|
Tap port to Input port
|
|
-21dB max.
|
Return path frequency: 2-40 MHz
|
|
Output port to Tap port Isolation
|
|
-21dB max.
|
2-625 MHz
|
|
|
Undefined
|
625-950 MHz
|
|
|
-20.0dB min.
|
950-1800 MHz
|
|
|
-20.0dB min.
|
1820-2150 MHz
|
|
No DC Power Passing
|
|
|
All ports DC Blocked
|
|
Grounding Block
|
|
Qty 1
|
A Ground screw must be included with the lug. Grounding lug must adhere to NEC 2008 version code 250.126, accommodating
a 10 gauge copper solid or 8 gauge copper clad wire.
|
|
Environmental Requirements:
See Table 2Below
|
|
Indoor or Lock Box Installation
|
Per DIRECTV Reliability Requirements defined in Outdoor Hardware Environmental Specifications IHDPSl0l9.Note: Unit shall not be
exposed
to direct outdoor elements.
|
|
Dimensions
|
|
2.0”*2.0”*1.5”
|
Highly desirable to be as small as possible
|
