GDST-002 branch distributor

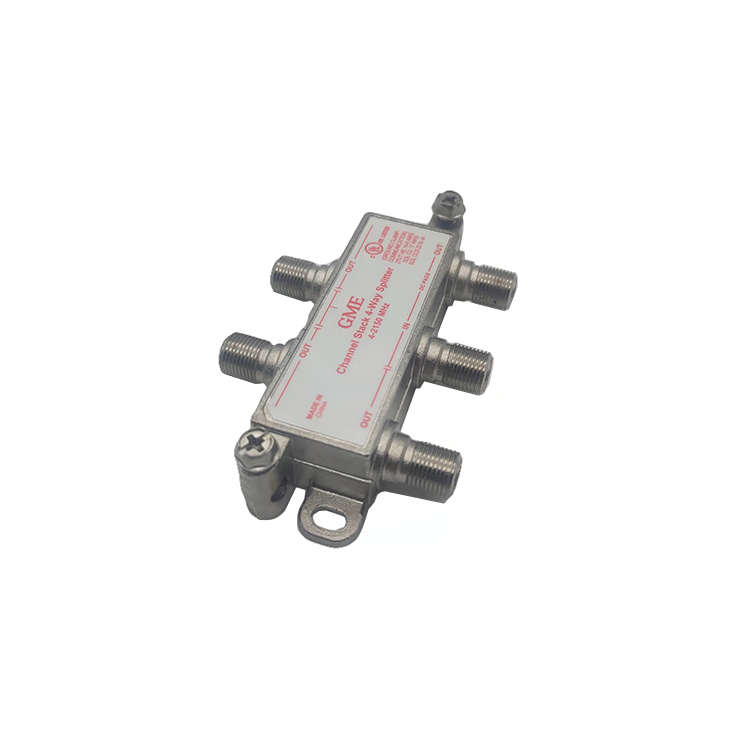

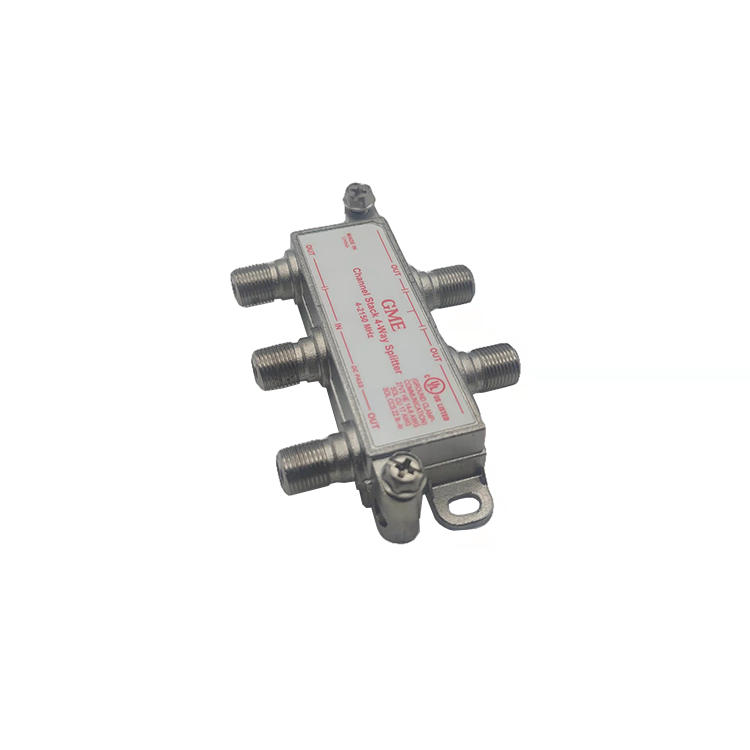

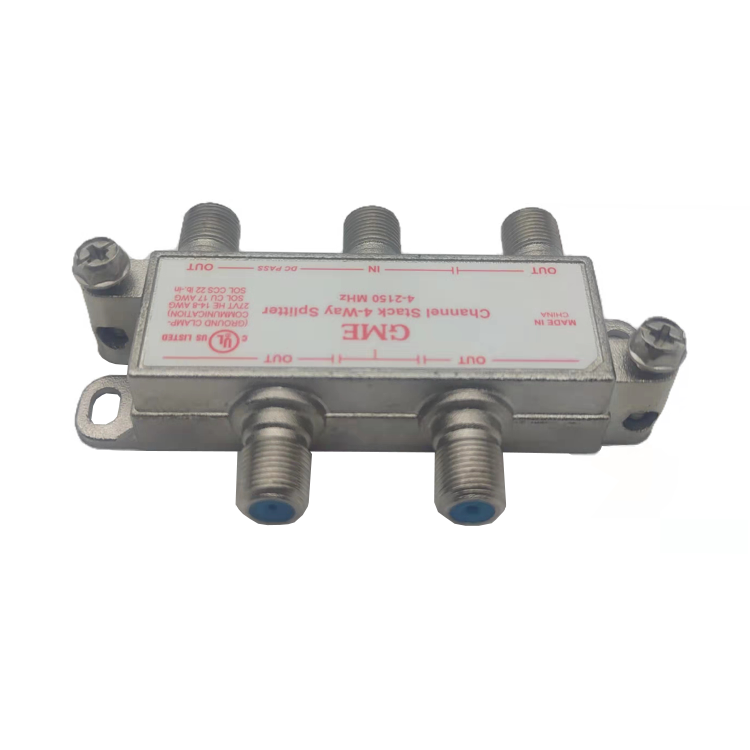

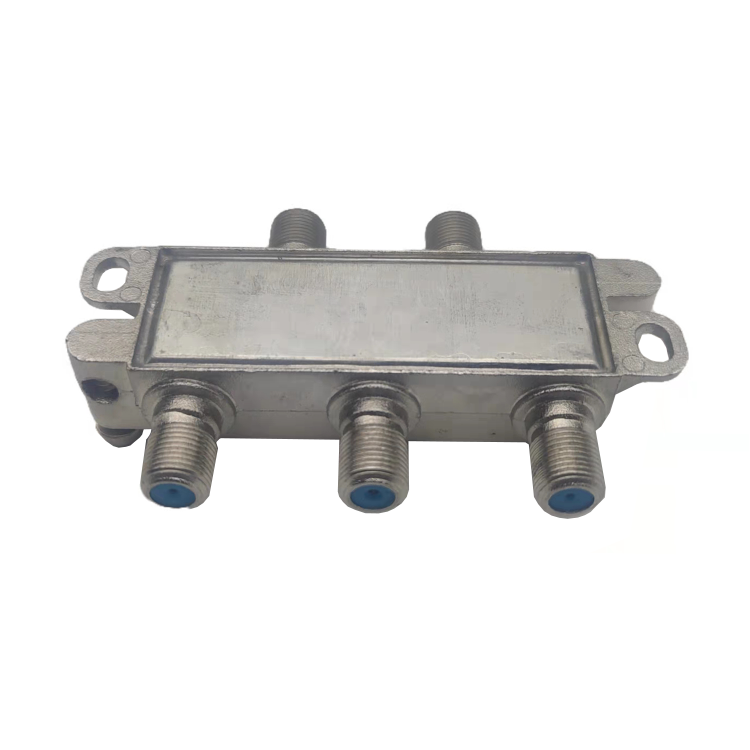

4104S

4WAY SPLITTER
■Zinc die-cast housing with nickel-plated.
■Compact size and light weight.
■Low insertion loss, high return loss and isolation.
■ High RFI by tightening back cover to the housing with teeth RFI≧100dB.
■ Solder back version for super high RFI (≧120dB) is also available.
■ DC power pass (Max. 1A, 30V)
■Grounding terminal provided.

Consultation hotline：0755-27091915

Online Service

Details
Online Message

Parameter

Place of origin: China
MODEL NO.: GDST-002 (4104S）
DESCRIPTION: 4-way Channel stacker splitter with surge protection on INPUT port（ferrite balun）
ITEM	TYPICAL	QC LIMIT	TEST CONDITIONS
Band width
FSK band			4-7MHz
Reserve band			50-575 MHz
MoCA band			650-875 MHz
SAT band			950-2150 MHz
Insertion loss	7.8dB	8.0dB max	4-7MHz
	8.2dB	8.5dB max	50-575 MHz
	8.6dB	9.0dB max	650-875 MHz
	9.5dB	10.5dB max	950-2150 MHz
Passband flatness	0.15dB	0.3dB max	4-7MHz
	0.6dB	0.9dB max	50-575 MHz
	0.35dB	0.6dB max	650-875 MHz
	1.7dB	2.0dB max	950-2150 MHz
		0.25dB max	p-p,any 6MHz band over 50-860MHz
		0.25dB max	p-p,any 25MHz band over 900-2150MHz
Isolation	21dB	16dB min	4-7MHz
	22dB	20dB min	50-575 MHz
	20dB	18dB min	650-875 MHz
	20dB	18dB min	950-2150 MHz
Return loss	11dB	10dB min	4-7MHz
	12dB	11dB min	50-575 MHz
	17dB	15dB min	650-875 MHz
	14dB	10dB min	950-2150 MHz
DC Voltage pass		29VDC max	One output to input port
Peak applied voltage		29VDC max	Must survive when applied to any or all ports for ≤ 24 hours.
Dc current pass		2A max	One output to input port
Dc resistance		0.25 ohm max	Does not apply to cable
Dc voltage drop		0.41V max	Does not apply to cable
Impedance		75 ohm	All ports
Connector All ports		F Type female	F ports are epoxy sealed
Operate temperature		-35℃ to +70℃
Surge Withstand Capability		4KV /100A	@Unidirectional surge ,INPUT PORT Only
Housing Finish		Cupronickel Plating	All surface
