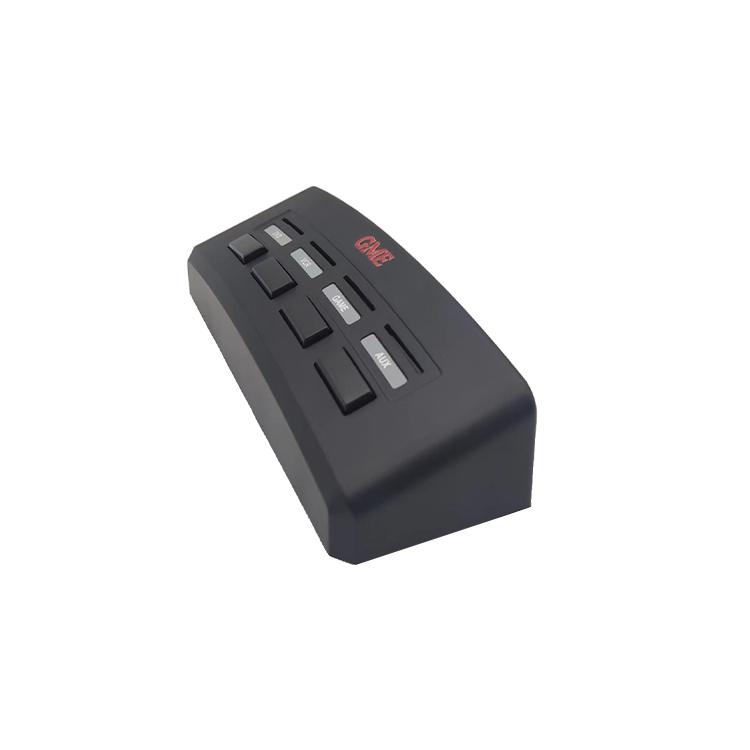

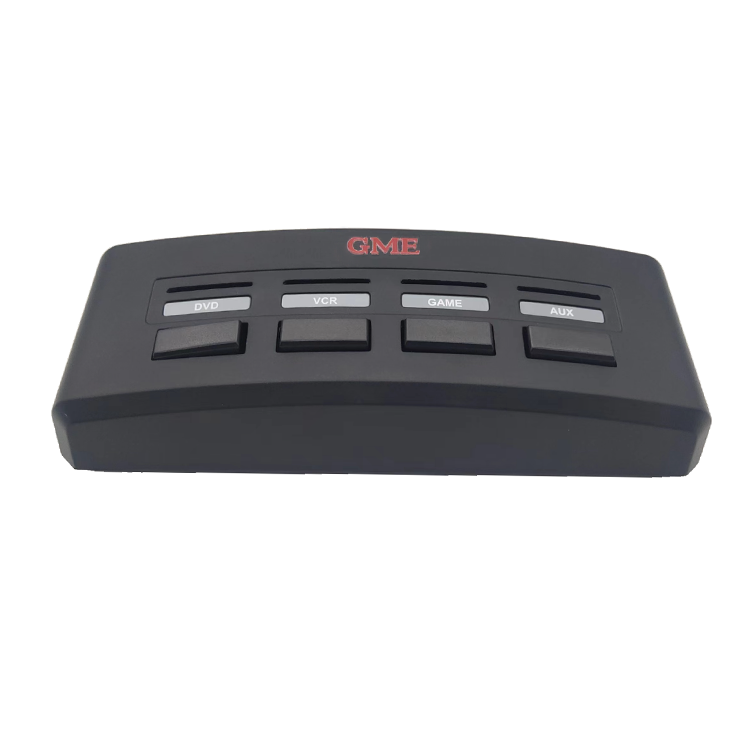

GDSS-010 select switch

15-313

Interruptor selector de A/V,
4 entradas/1 salida

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDSS-010(15-313)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
VIDEO :
1. Input Level	1 Vp-p
2. Input Signal Separation	45.0 dB	40 dB MIN.
3. Output Signal Level	1 Vp-p	0.95 Vp-p MIN.
4. Differential Phase		2° MAX.
5. Differential Gain		5 % MAX.
S-VIDEO :
1. S-Video Input Level Y :		1.0 Vp-p	75 OHMS Load
C :		0.63 Vp-p	75 OHMS Load
2. S-Video Output Level Y :		1.0 ± 0.1 Vp-p	75 OHMS Load
C :		0.63 ± 0.1 Vp-p	75 OHMS Load
3. Composite Video Level		0.95 ± 0.1 Vp-p	75 OHMS Load
AUDIO :
1. Input Level L&R	1 Vp-p
2. Response		± 1 dB	20 Hz ~ 20 KHz
3. L&R Cross Talk		75 dB MIN.
4. Output Level L&R	1 Vp-p	0.95 Vp-p MIN.
5. Total harmonic distortion		2 % MAX.
6. Operating Temperature		0 ℃ ~ 50 ℃	Indoor only

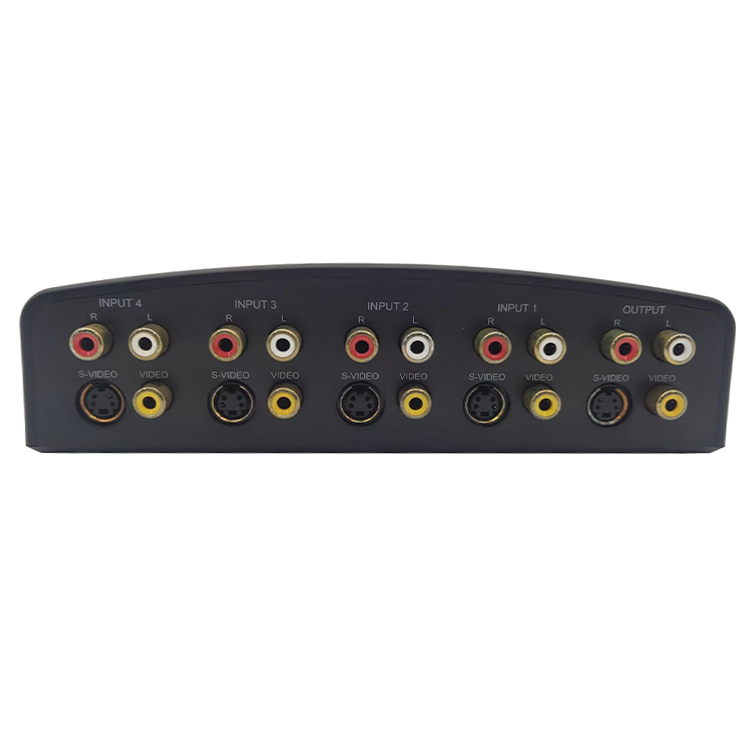

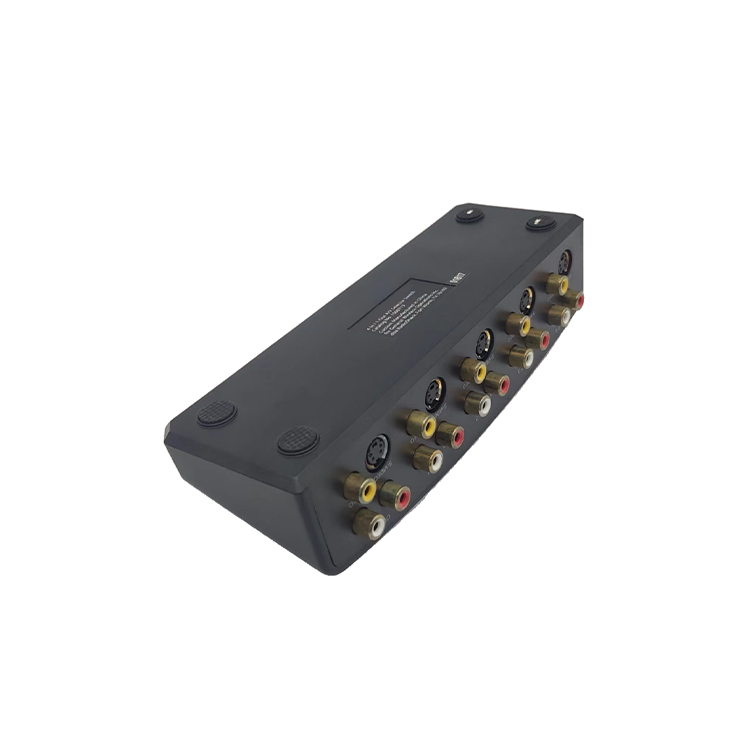

CONNECTOR :
1. INPUT 1		RCA JACK / S-VIDEO “GOLD”
2. INPUT 2		RCA JACK / S-VIDEO “GOLD”
3. INPUT 3		RCA JACK / S-VIDEO “GOLD”
4. INPUT 4		RCA JACK / S-VIDEO “GOLD”
5. OUTPUT		RCA JACK / S-VIDEO “GOLD”
