GDSS-006 select switch

SWS2325W/17

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDSS-006(SWS2325W/17)

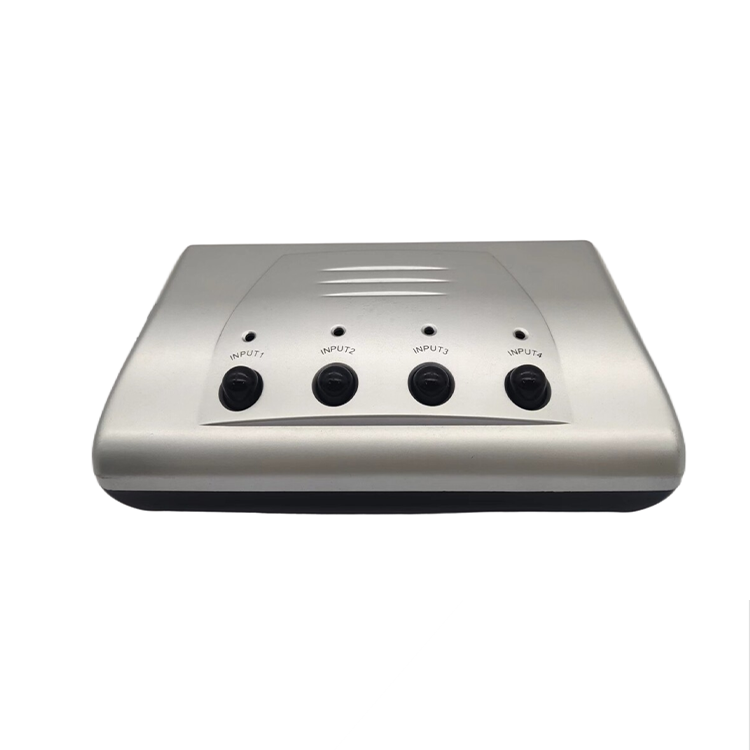

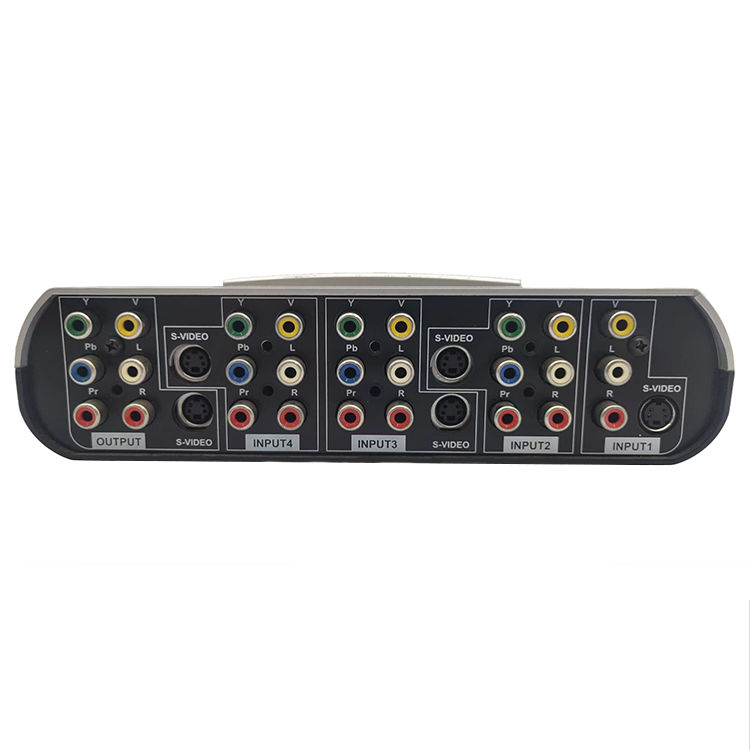

DESCRIPTION : 4 INPUT 1 OUTPUT A/V SWITCH
ITEM		TYPICAL	Q.C LIMIT	TEST CONDITIONS
VIDEO
INPUT LEVEL		1Vp-p		LOAD: 75 OHM
INPUT SIGNAL SEPARATION		45 dB	40 dB MIN.
OUTPUT SIGNAL LEVEL		1Vp-p	0.95Vp-p MIN.	LOAD: 75 OHM
CONNECTOR			RCA JACK
AUDIO
INPUT LEVEL L&R		1Vp-p		L: 400 MHz R: 1 KHz LOAD: 600 OHM
L&R CROSS TALK		75 dB	70 dB MIN.
OUTPUT LEVEL L&R		1Vp-p	0.95Vp-p MIN.	L: 400 MHz R: 1 KHz LOAD: 600 OHM
TOTAL HARMONIC DISTORTION			1% MAX.
CONNECTOR			RCA JACK
S-VIDEO
INPUT LEVEL:	Y	1Vp-p		LOAD: 75 OHM
INPUT LEVEL:	C	0.6Vp-p		LOAD: 75 OHM
OUTPUT LEVEL:	Y	1Vp-p	0.95Vp-p	LOAD: 75 OHM
OUTPUT LEVEL:	C	0.6Vp-p	0.5Vp-p	LOAD: 75 OHM
CONNECTOR			S-VIDEO JACK
Y ’Pr ’Pb
INPUT LEVEL:	Y	1Vp-p		LOAD: 75 OHM
	Pr	0.5Vp-p		LOAD: 75 OHM
	Pb	0.5Vp-p		LOAD: 75 OHM
OUTPUT LEVEL:	Y	1Vp-p	0.95Vp-p	LOAD: 75 OHM
	Pr	0.5Vp-p	0.4Vp-p	LOAD: 75 OHM
	Pb	0.5Vp-p	0.4Vp-p	LOAD: 75 OHM
CONNECTOR			RCA JACK
