GDMS-009 multi-road switch

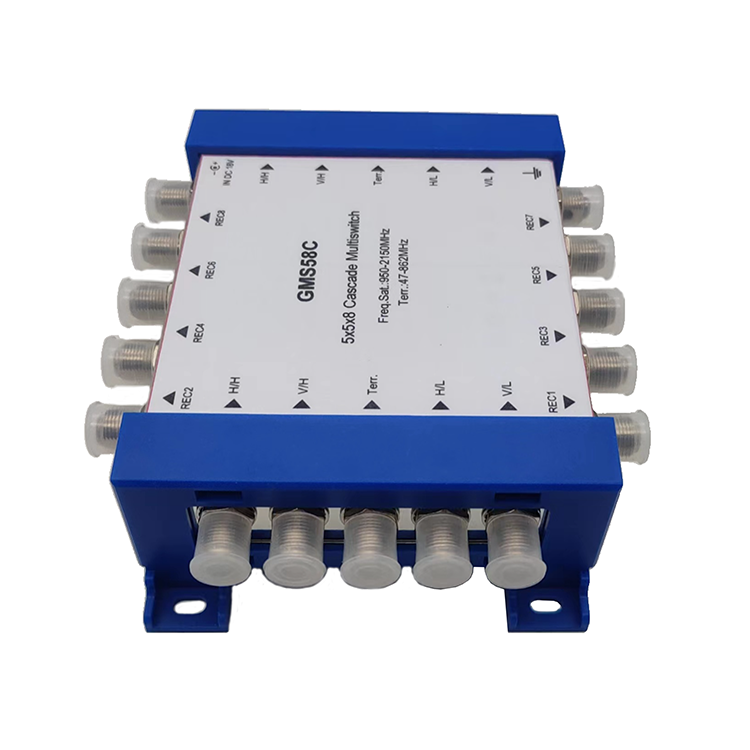

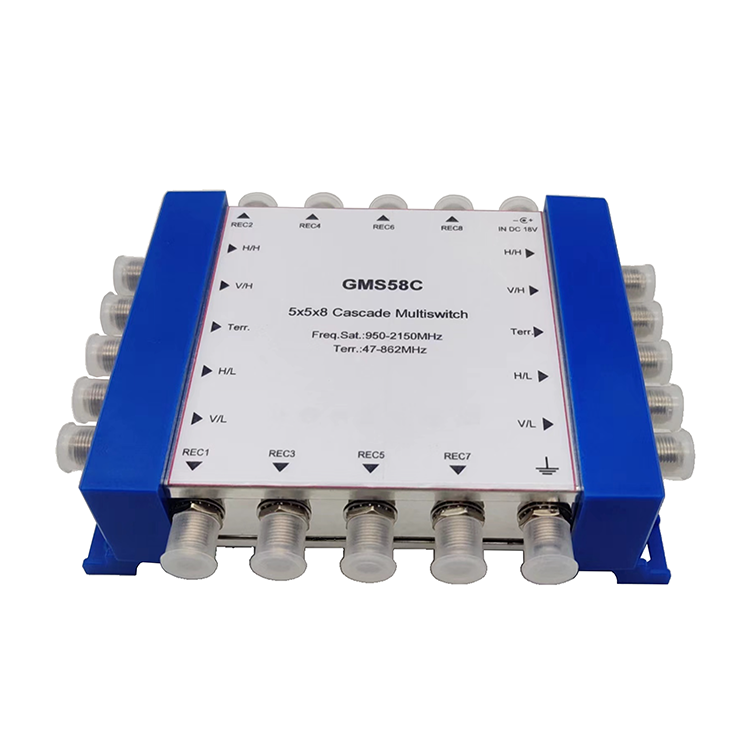

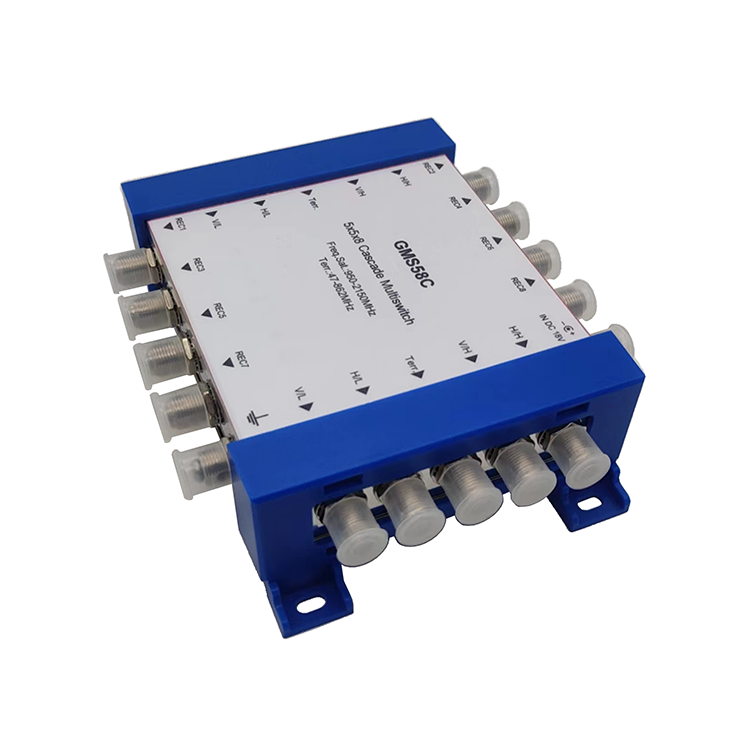

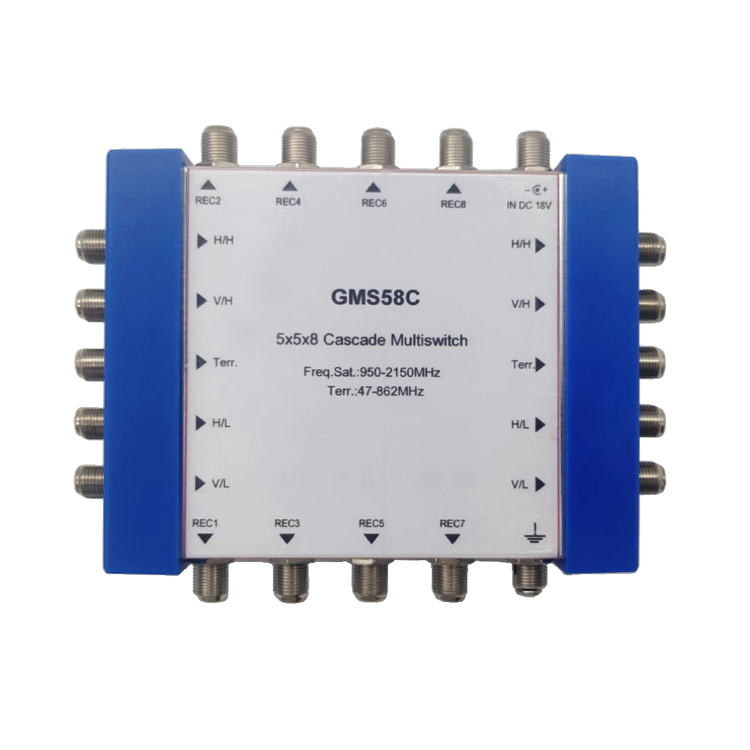

GMS58C

■4 satellite IF and 1 terrestrial TV inputs for 8 satellite receiver
■4 satellite IF inputs selected by 13V、18V and 22KHz signal
■Built-in amplifier
■Low insertion loss, high isolation and return loss
■SAT-IF-PATHs to the subscribers are active and supplied by the receiver

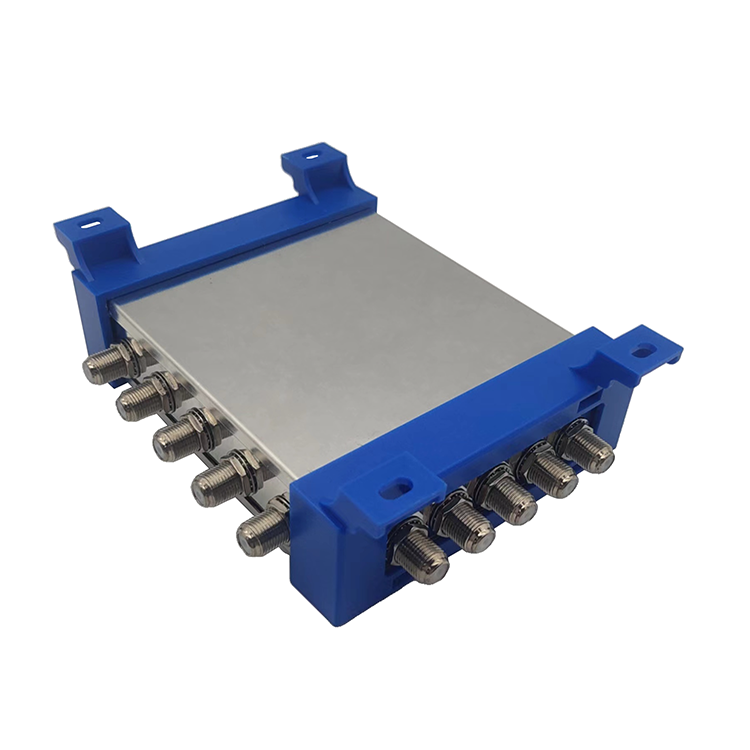

■Sheet metal housing with plastic holder
■Design good for indoor usage



Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDM-009(GMS58C)
Item
Specifications
Remark
Frequency Range
Terr.:47~862MHz SAT:950~2150MHz
Inputs
4 SAT+1 Terr.
F connectors
Outputs
8 Receiver
F connectors
Thru Loss
Terr.
4dB
SAT
4dB
Insertion Loss
Terr.
0dB
SAT
0dB
Return Loss
Terr.
10dB
SAT
10dB
Stop band attenuation
Terr.
25dB
SAT
25dB
Isolation
LNB-LNB
35dB
H/V
30dB
REC-REC
Terr.:25dB SAT:30dB
SAT Output level
100dBμV @35dB IMA3,EN50083-3
Terr. Output level
85dBμV @60dB IMA3,EN50083-5
Switching Voltage
V:10~14.5V H:15~20V
Power supply
IN:90~264V OUT:18V 1600mA
Dimensions (w,d,h)
155×120×42
mm
