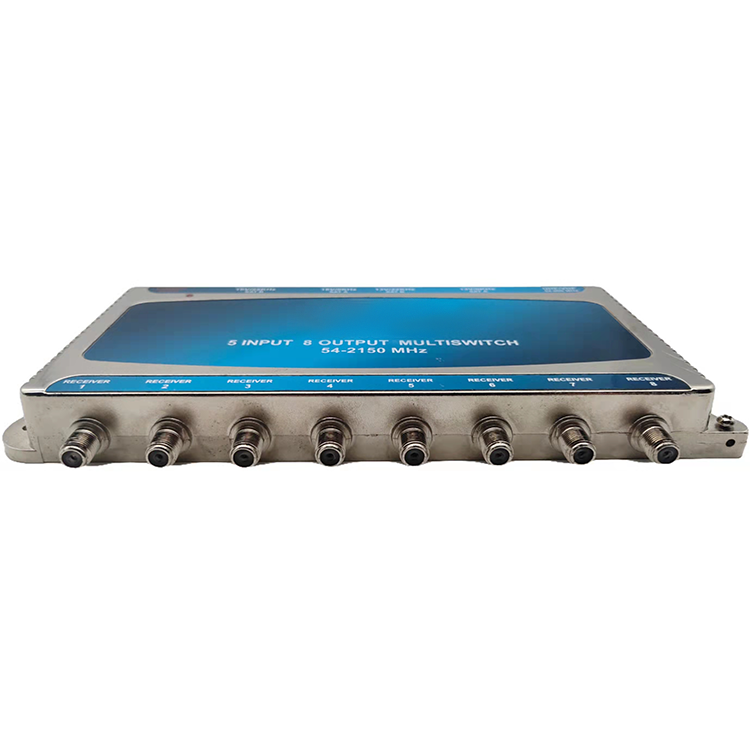

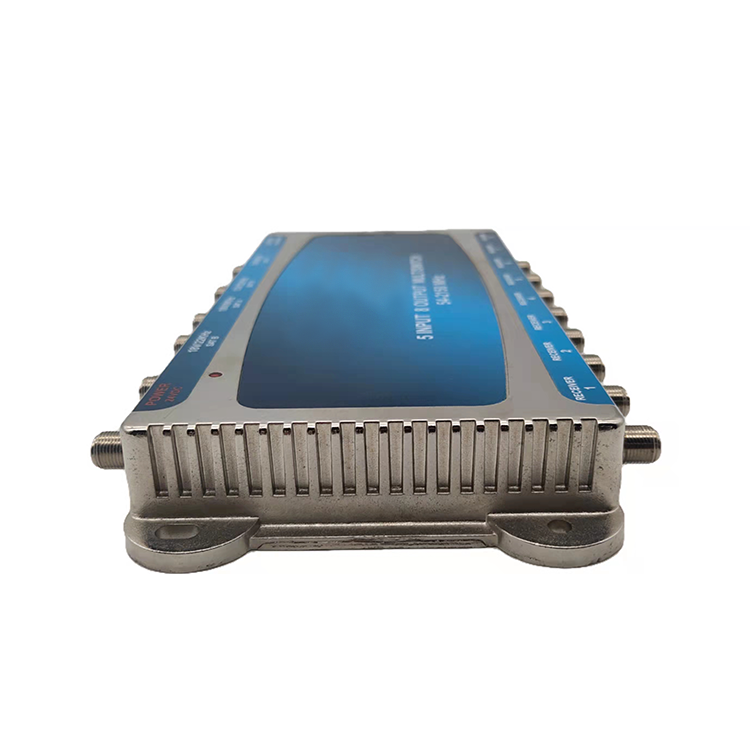

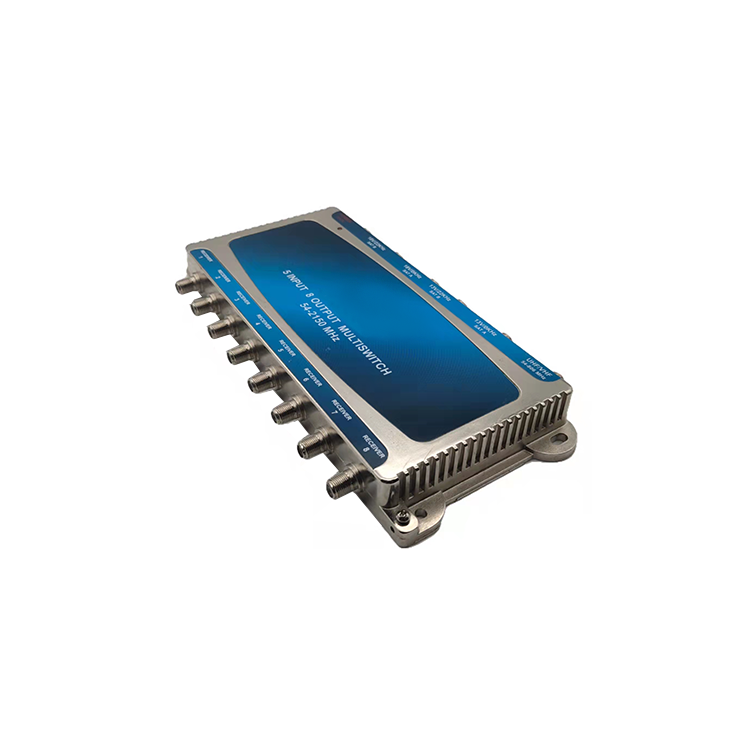

GDMS-004 multi-road switch

4058-22K

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number: GDMS-004(4058-22K)
Input Freq. Range (ANT In)	40-806 MHz
Input Freq.Range (LNB In)	950-2150 MHz
Output	40-2150 MHz
Insertion Loss 40-216 MHz	-3dB
217-806 MHz	-2dB
950-1750 MHz	2dB
1751-2150 MHz	0dB
Flatness 40-216 MHz	±2dB
217-806 MHz	±2.5dB
950-1750 MHz	±3.0dB
1751-2150 MHz	±3.0dB
Isolation Sat In to Sat in 950-2150 MHz	-35dB
Isolation Out to Out 40-806 MHz	-25dB
950-2150 MHz	-30dB
Cross Polarization 950-1750 MHz	-35dB
1751-2150 MHz	-30dB
Isolation B/W 950MHz & 860MHz Sat Port	-25dB
860MHz & 950MHz Ant Port
Return Loss Ant. In 40-806 MHz	-10dB
Sat. In 950-2150 Mhz	-10dB
Output 40-806 MHz	-10dB
950-1450 MHz	-10dB
1451-2000 MHz	-10dB
2001-2150 MHz	-6dB
Input Capability 1dB Compression Ant Port	103dBμV
Input Capability 1dB Compression Sat Port	96dBμV
DC Pass Sat In	400 mA
Connectors (all port)	F-Female
Switch Voltage LNB A (18V / OKHz)	15.5 VDC~19.5 VDC
LNB C(14V/22KHz)	12.5 VDC~14.0 VDC
LNB D(14V\|OKHz)	12.5 VDC~14.0 VDC
Adaptor Power Input	120VAC/60Hz
Adaptor Power Output	24VDC/1000mA W/PTC
22KHz Signal Frog & Amplified at LNB
