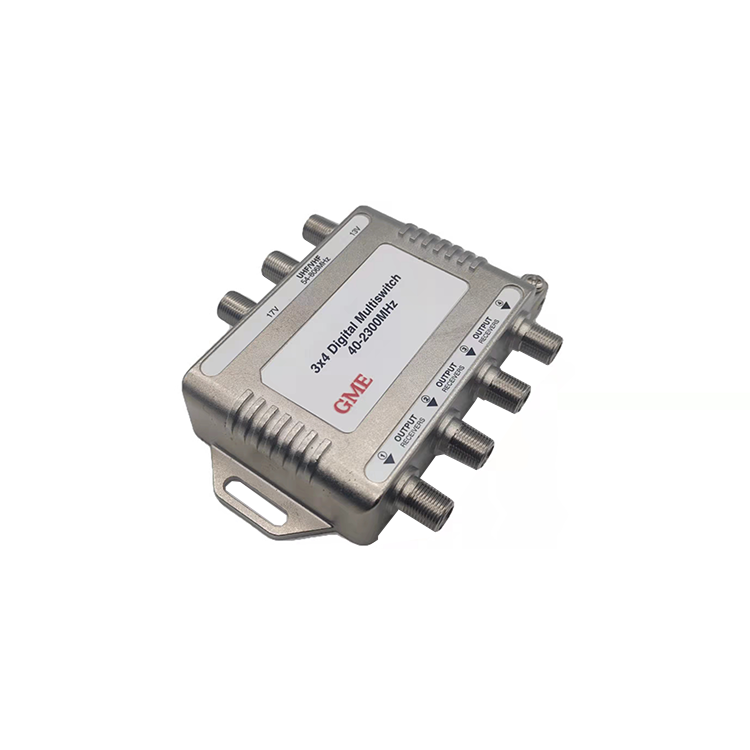

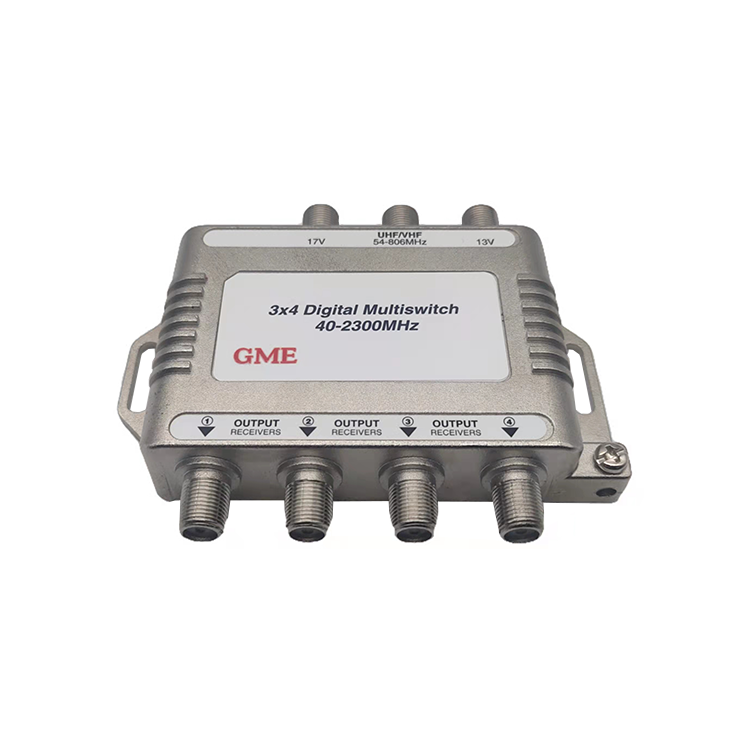

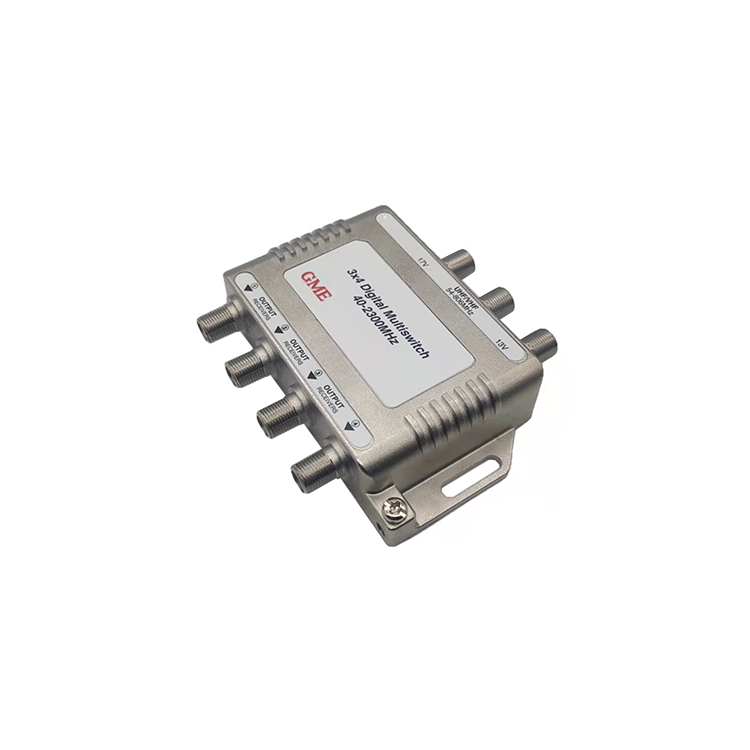

GDMS-001 multi-road switch

4034MN

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDMS-001(4034MN)
Parameter	Q.C limit	Test Coditions
Satellite Input Frequency	950-2150 MHz	RHCP&LHCP Polarizations
Off-air Input Frequency ReturnLos	54-806 MHz
Off-air Input/Output ports	-10dB min	54 ~ 806MHz
Satellite Input/Output ports	-10dB min	950 ~ 2150 MHz
Max aggregate input power	-10.5dBm	Per input,Satellite band
Noise Figure	10dB max	950 ~ 2150 MHz
Satellite Insertion Loss/Gain	0 ~ +5 dB max	950~2150 MHz
Off-air Insertion Loss/Gain	-12dB max	54 ~ 806 MHz
StopBandRejection
Off-air to Satellite	30dB min
Satellite to Off-air	25dB min
Gain Flatness
24MHz	1dB max	975 ~ 2150 MHz
36MHz	1.5dB max	975 ~ 2150 MHz
1200MHz	5dB max	950 ~ 2150 MHz
Port to Port Isolation
Input -Input(Cross-pol)	-30dB min	950 ~ 2150 MHz
Output -Output(Cross-pol,Cross-Talk)	-30dB min	950 ~ 2150 MHz
Output -Output(Same pol)	-25dB min	950 ~ 2150 MHz
Output -Output(TV Range)	-20dB min	54 ~ 806 MHz
Selection Control LHCP(18V)	17.75 to 21V	To be used as ref. only
Selection Control RHCP(13V)	9.5 to 14V	To be used as ref. only
13/18 Threshold Switching Voltage	14.1 to 14.8V
13V/18V Switching Time	50ms
DC Loss	0.5V	@450mA, 18V Selected
Multi-switch DC Current	80mA max	@18V Selected
Bias Current to LNB	290mA	Per Input
Bias ANT IN Port	0mA	DC Block
Operating Temperature	-20 to +50℃
Mechanical	8710218mm
Outline	F type female
Connector	Zinc alloy 3#
Housing	Cupernickel plating t：0.1um
Plating	Silicone

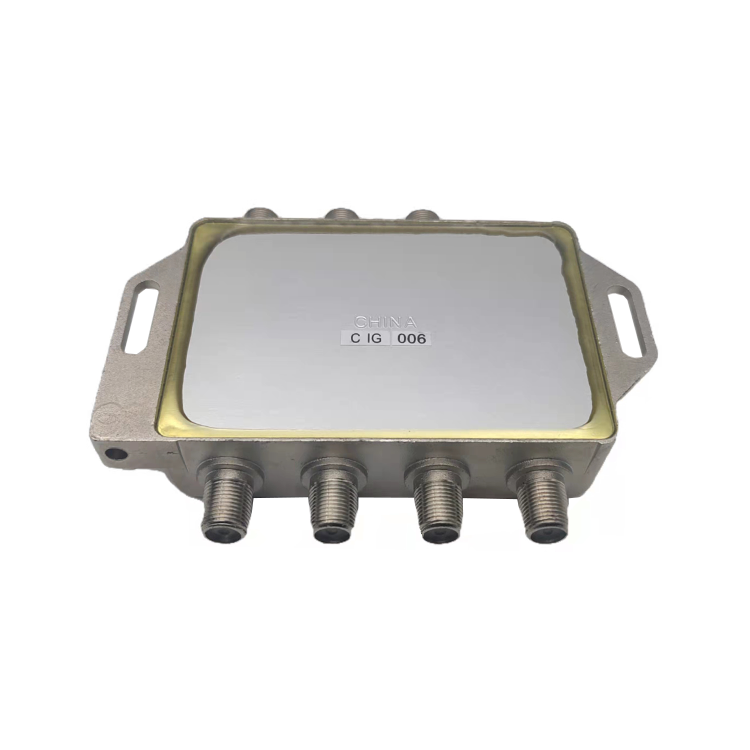

Rear cover attachment method to the housing	AL
Rear cover material
