Model Number:GDM-031(GBM-860AL3)

INPUT

Video Input

HDMI

Audio Input

HDMI

Video System

480i/p, 576i/p, 720p,1080i/p

Caption

Composite Video

COMPRESSION

Video

MPEG2

Video Resolution

1080p 25 / 30 Max

Video Bit rate

18Mbps Max

Audio

MPEG-1 Audio Layer 2,AAC-LC, AC3

Editable field

PMT PID, Video PID, Audio PID, Short Name , Long Name, PSIP TSID, Major NO., Minor NO.,Source ID

RF OUTPUT

Type

1 Multiplex QAM with a digital TV service

Frequency Range

57~861 MHz

Output Level

90 dBuV Min.

Channel Level Adjustment

0 dB ~ -30dB

MER

35dB Typically

Attenuation step

1dB per step

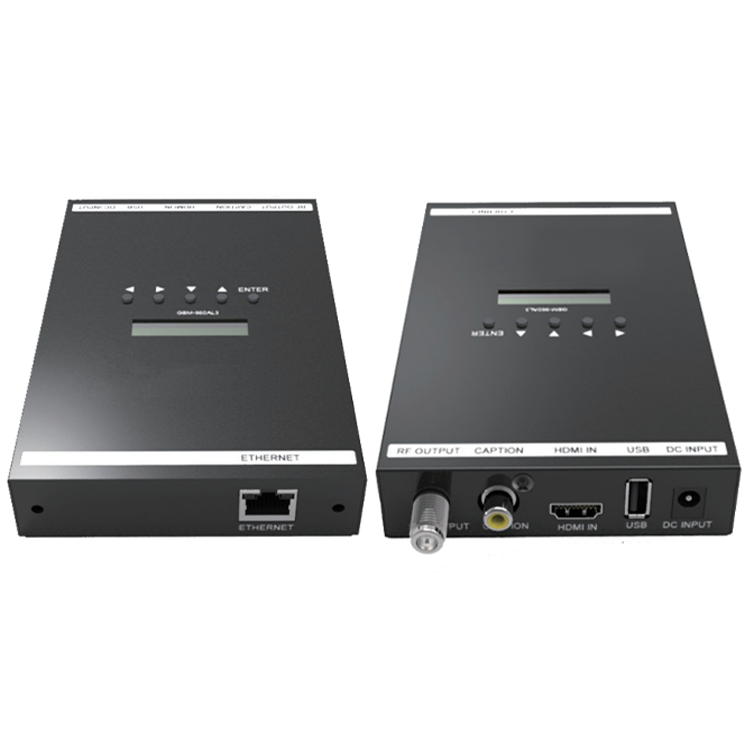

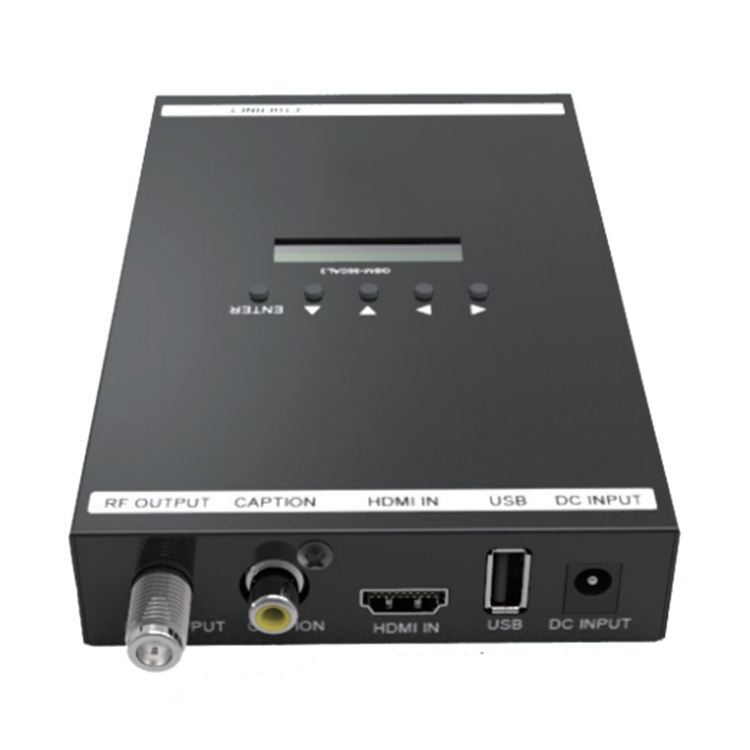

CONNECTIONS

HDMI IN

HDMI IN

RF Output

1 QAM RF output

Caption

RCA

LAN

Web Management

USB

S/W Update

GENERAL

Modulation

Standard：QAM (J.83 Annex B) Constellation：256QAM, 64QAM Bandwidth：6MHz Channel Type：STD Closed Captioning Support

Power Supply

12 VDC 1.0 A

Display

LCD panel @ 2 x 16 characters.

Dimension

153.8 x 101.4 x 25.6 mm

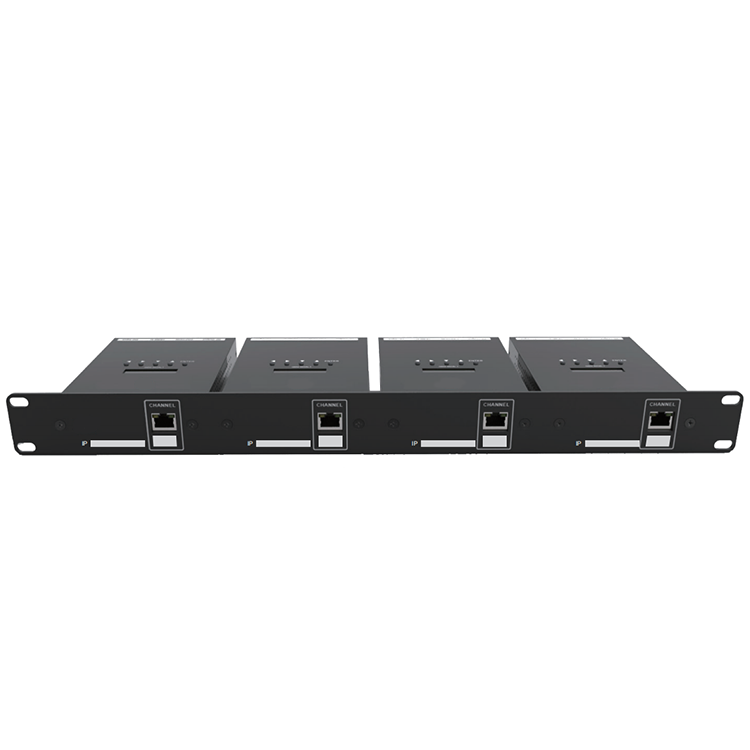

Rack Mount

4units in 1U Height Shelf(Option)

Environmental for operating

Temperature:5°C- 40°C Relative Humidity:80% @ 30°C
