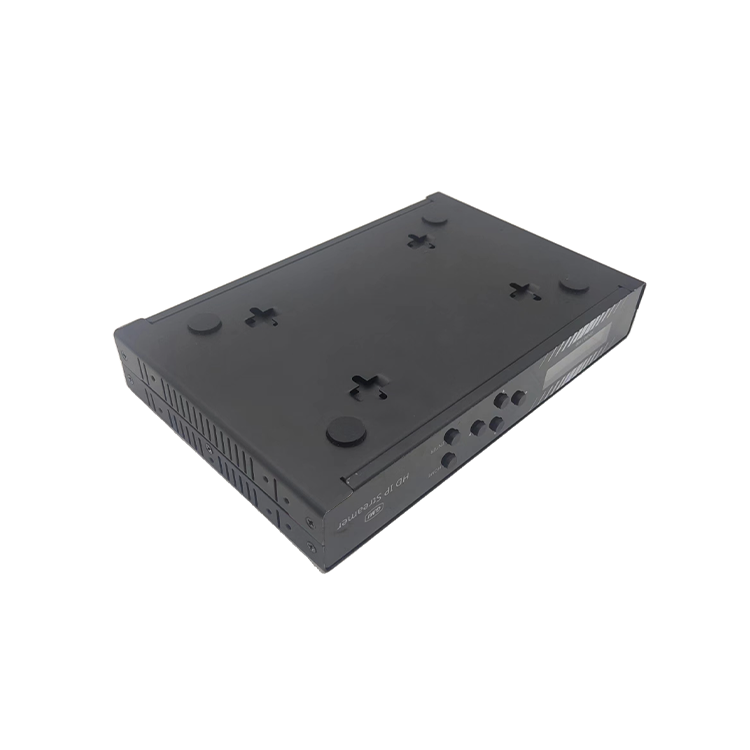

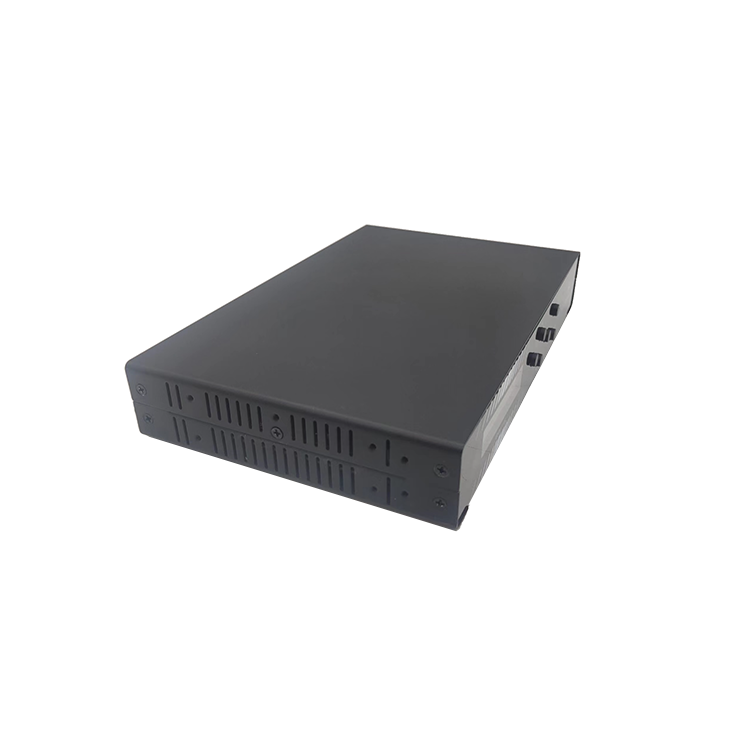

GDM-029 Digital modulator

(GHIM-1100)

    GMI's GHIM-1100 HD IP Streamer allows the user to stream any one audio/video source  over a IP Network to Smart HDTV's or connected computers within the IP Network. The IP Streamer accepts a HDMI, Component, or Composite video input and the unit is  designed to deliver a rich HD/SD Streaming experience for its users deploying MPEG-2 or  H.264 standards.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDM-029(GHIM-1100)

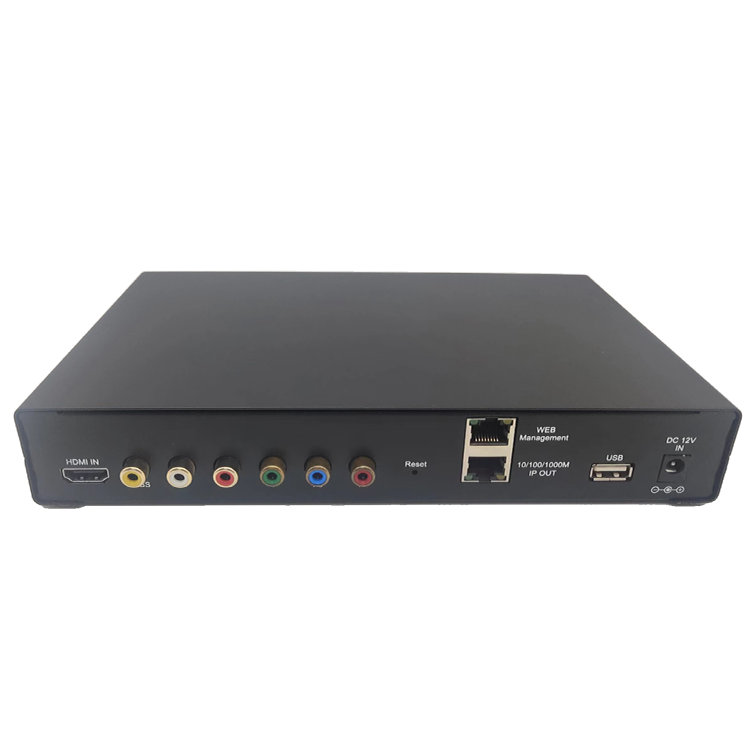

INERFACES
Ethernet x 2
1Gbps, RJ-45 (Web Management & IP Out)
Input Channel x 4
HDMI, YPbPr, CVBS
Audio Input
Analog, Coaxial
USB Input
USB 2.0 With MPEG-4,tsvideos File system FAT32(32G),NTFS(2T)
ENCODING
Video Format
HD H.264 AVC/HP@L4.0
SD MPEG-2/MP@ML
Audio Format
MPEG2 / AAC
Resolution
FHD 1080P25,1080P30 1080i50 1080i60
HD 750P50 20P60 SD 480i/p,576i/p
Video Bit Rrate
H.264 12 Mbps MAX
Audio Bit Rrate
MPEG-2 8 Mbps MAX
Audio Sample Rate
384Kbps 48KHz
INTPUT
Video Input
HDMI 1080P 25/30, 1080i 50/60 Max,
PYPbPr 1080i,720P, 576i/P,480i/
CVBS NTSC, PAL
Y Input Level
1V±0.2Vp-p
Pb/Pr Input Level
0.7V±0.1Vp-p
CVBS Input Level
1V±0.2Vp-p
Streaming Protocols
DLNA
UDP / RTP multicasting
UDP / RTP unicasting
HTTP Live Streaming (HLS)
OTHER
Power Supply
12v adaptor
Display
LCD panel @ 2x 16 characters
Dimension
235mm x 160mm x 40mm
Environmental for Operating
Temperature 5℃-40℃
Relative Humidity 80% @ 30℃
