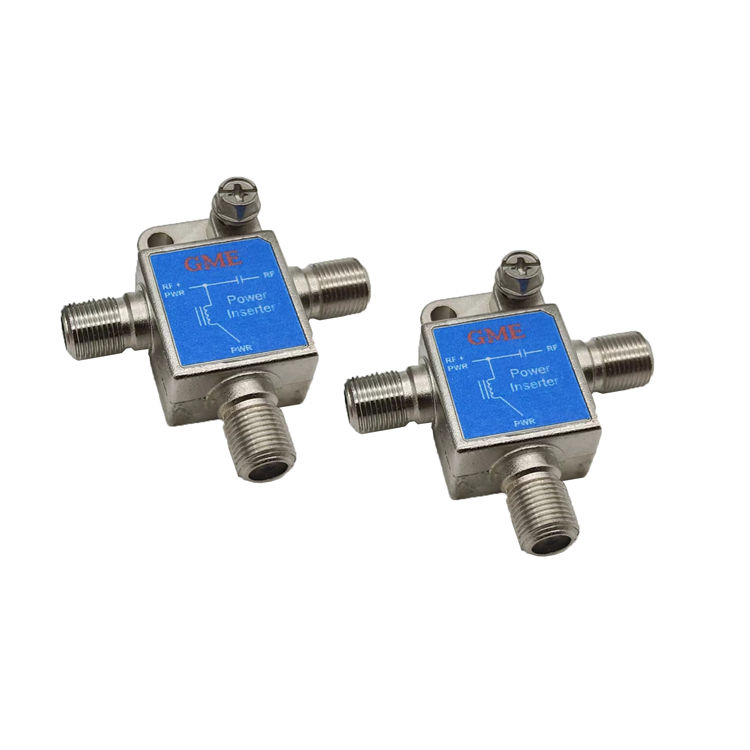

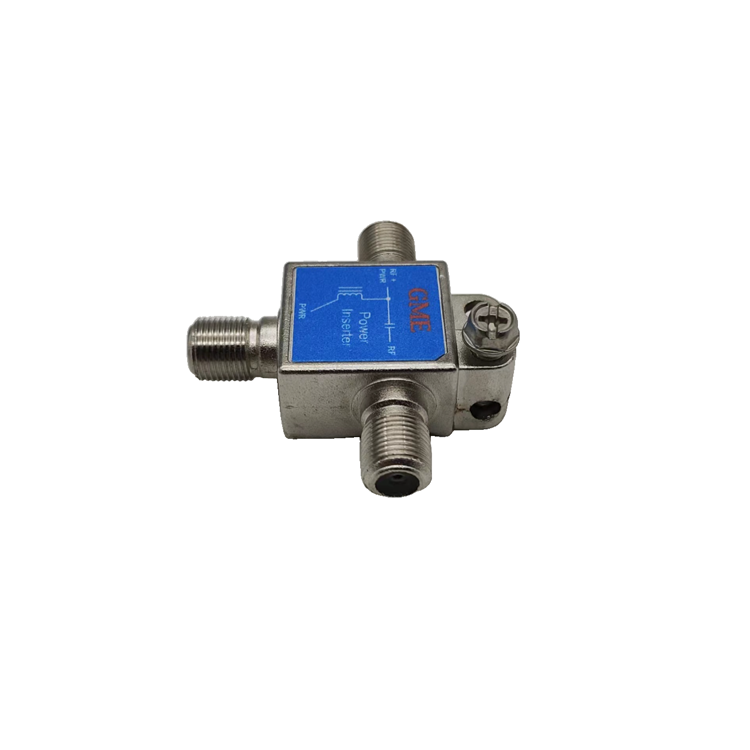

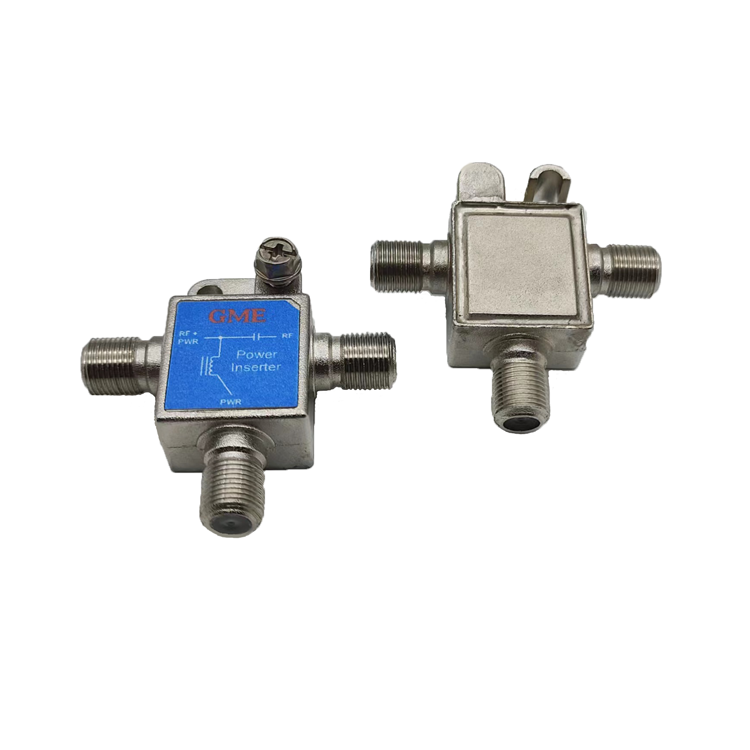

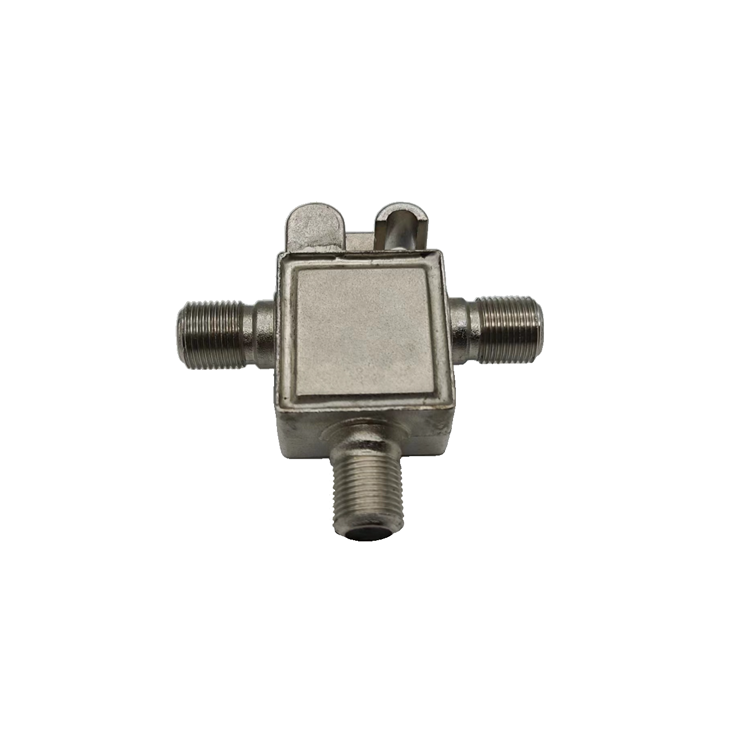

Model Number:GDINS-005(Inserter-1.5A)

Electrical RF

Operating frequency

5 – 1218MHz

RF/RF+PWR ports

Insertion loss (RF toRF+PWR)

-0.8 dB Max.

5 – 1218 MHz

Isolation (PWR in to RF+DC)

65dB Min.

5 – 1218MHz

Return loss (RF＆RF+PWR port)

-18dB Min.

5 – 1218 MHz

RF shielding

105dB Min

Minmum per ANSI/SCTE 48-2 2008 extended to 1218MHz

Input power RF

+23dBm Min

Minmum without damage

Power input

Operating voltage

+25VDC Min

Operating current

1.5A Max

Surge withstand (All ports)

6KV

ANSI/IEEE C62.41 using combination wave with 2 ohm source Must withstand 10 alternating positive and negative pulses

Eenvironmental

Operating temperature

-40 to +65℃

Operating altitude

-60 to +4000 mAMSL

Operating humidity

5 to 95﹪ RH

Storage temperature

-40 to +85℃

Transport aititude

-60 to +12000 mAMSL

Transport shock＆vibration

Category A

GR-63-CORE paragraphs 5.3.1.1,5.3.2 and5.4.3

Salt spray

ANSI/SCTE 153 2008 compliant

Resistance power to RF+power

mΩ

250

Maximum -40～+60℃,Ipwr=1.5A

ESD

Per IEC/EN61000-4-2

Contact discharge

KV

8

Mechanical

outline

50*47*18mm

weight

45g

connector

Type F female

ANSI/SCTE 01 2006 compliant

Ground bonding

ANSI/SCTE 153 2008and ANSI/SCTE 129 2007compliant

Housing

Zinc alloy 3#

Plating

Cupernicke plating t：0.1um

Rreliability

MTBF

Hrs

10,000,000 min

Calculated per telcordi SR323,issue 3,Uncon- trolled environment at 65℃ ambient

Regulatory compliance

ROHS compliance

yes

Full compliance to EU＆china ROHS

standars

Marking & Labeling

Model & Date Code

Marked with part number and date code
