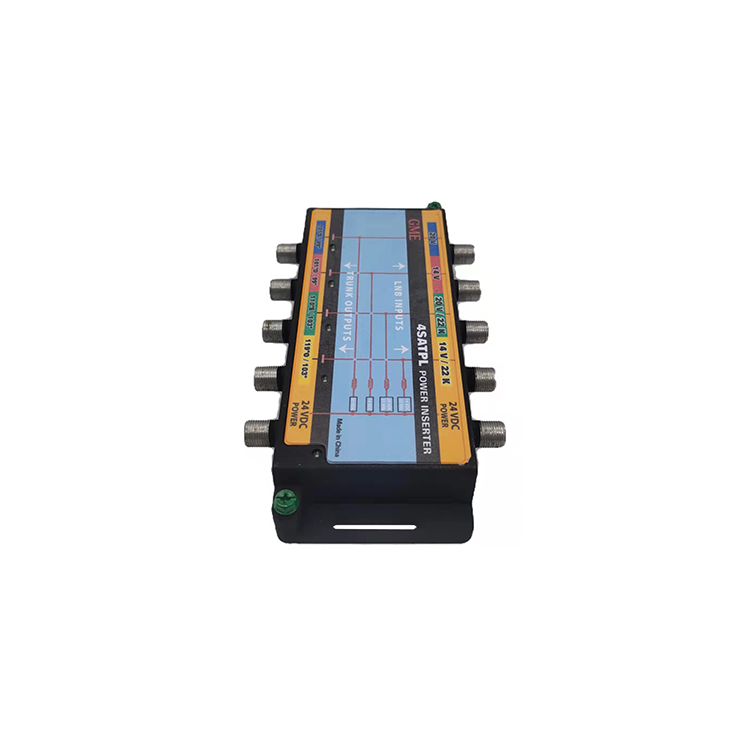

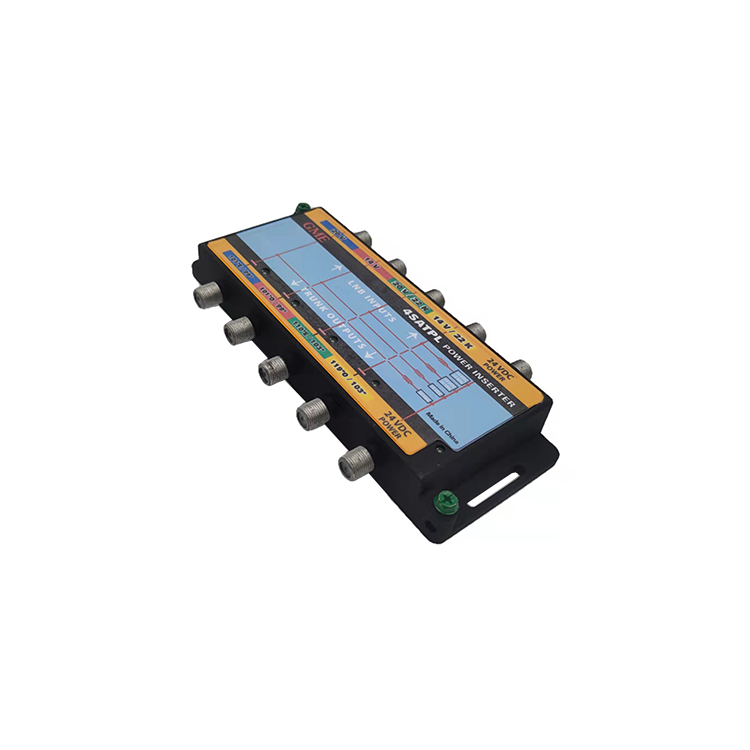

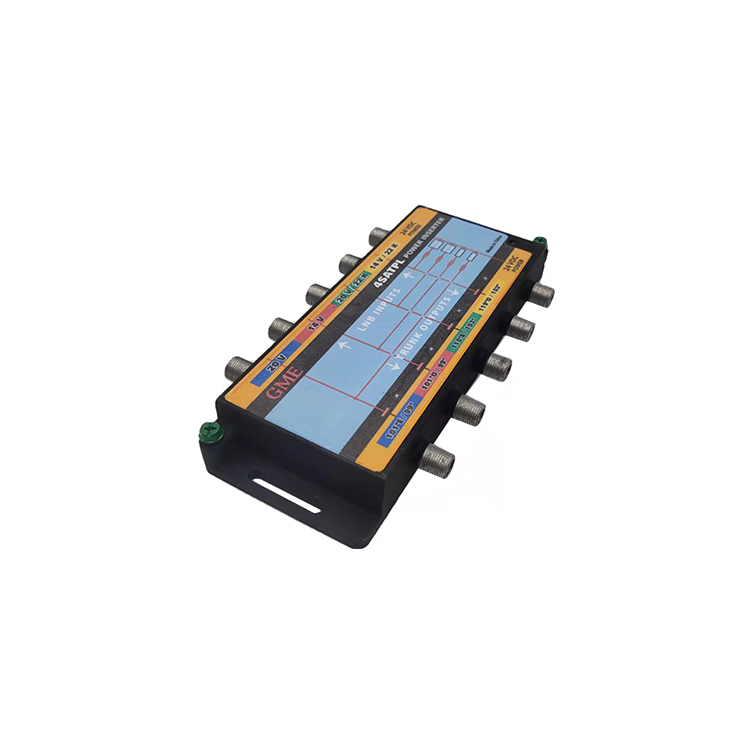

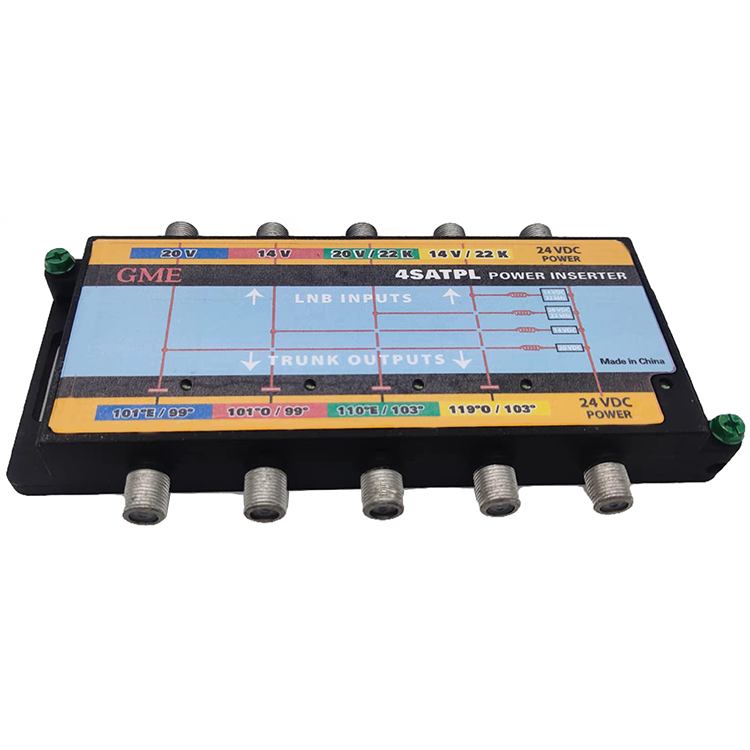

Gdins-003 Inserter

(4SATPL)

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDINS-003(4SATPL)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE			50-2400 MHz
INSERTION LOSS	-0.8dB	-1.5dB MAX	50-1450 MHz
	-1.5dB	-2.5dB MAX	1451-2400 MHz
ISOLATION
LNB TO LNB	-40dB	-35dB MIN	50-2400 MHz
TRUNK OUT TO TRUNK OUT	-40dB	-35dB MIN	50-2400 MHz
CROSS POLARIZATION	-40dB	-35dB MIN	50-2400 MHz

RETURN LOSS	-15dB	-12dB MIN	50-1450 MHz
	-14dB	-10dB MIN	1451-2400 MHz

OUTPUT VOLTAGE
14V/14V/22KHz PORT		13-13.8VDC	@50-500 mA
20V/20V/22KHz PORT		19-20VDC	@50-500 mA
22KHz SIGNALCHARACTERISTICS FREQ		22±5KHz
DUTY CYCLE		±50﹪
LEVEL		600±150mVp-p

POWER ADAPTOR
INPUT		100-240VAC 50/60Hz	POWER SWITCHING
OUTPUT		24VDC/2000mA

IMPEDANCE		75 OHM	ALL PORTS
CONNECTOR		“F”TYPE FEMALE	ALL PORTS
