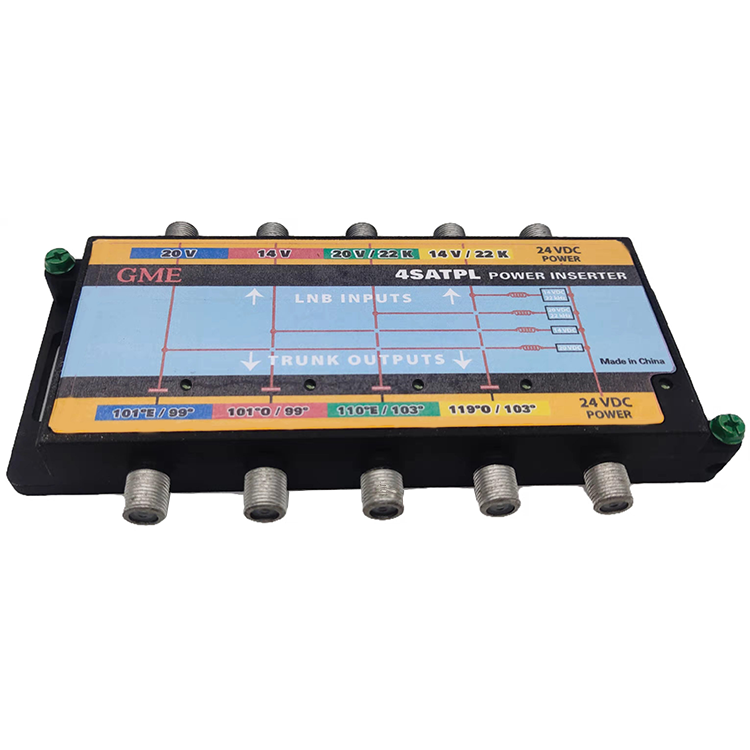

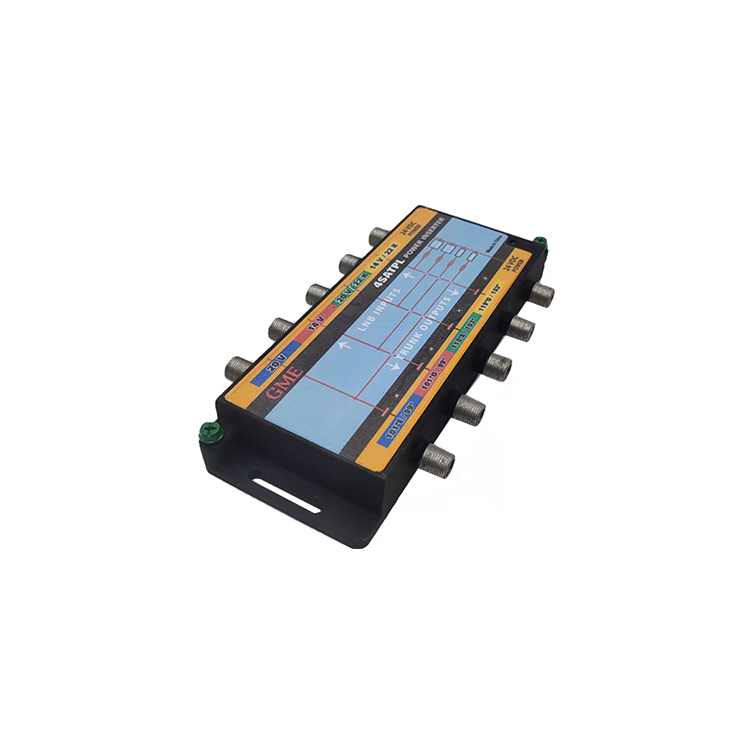

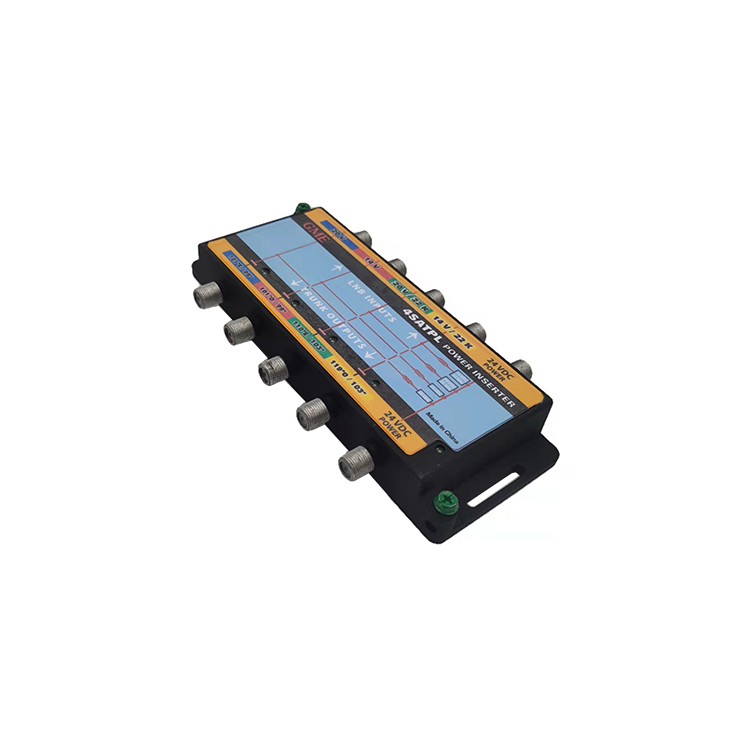

Gdins-003 plug-in
(4SATPL)
Satellite Power Inserter
Consultation hotline：0755-27091915
Online ServiceParameter
|
Place of Origin:Guangdong,China
|
|||
|
Model Number:GDINS-003(4SATPL)
|
|||
|
ITEM
|
TYPICAL
|
Q.C LIMIT
|
TEST CONDITIONS
|
|
FREQ RANGE
|
50-2400 MHz
|
||
|
INSERTION LOSS
|
-0.8dB
|
-1.5dB MAX
|
50-1450 MHz
|
|
-1.5dB
|
-2.5dB MAX
|
1451-2400 MHz
|
|
|
ISOLATION
|
|||
|
LNB TO LNB
|
-40dB
|
-35dB MIN
|
50-2400 MHz
|
|
TRUNK OUT TO TRUNK OUT
|
-40dB
|
-35dB MIN
|
50-2400 MHz
|
|
CROSS POLARIZATION
|
-40dB
|
-35dB MIN
|
50-2400 MHz
|
|
RETURN LOSS
|
-15dB
|
-12dB MIN
|
50-1450 MHz
|
|
-14dB
|
-10dB MIN
|
1451-2400 MHz
|
|
|
OUTPUT VOLTAGE
|
|||
|
14V/14V/22KHz PORT
|
13-13.8VDC
|
@50-500 mA
|
|
|
20V/20V/22KHz PORT
|
19-20VDC
|
@50-500 mA
|
|
|
22KHz SIGNALCHARACTERISTICS FREQ
|
22±5KHz
|
||
|
DUTY CYCLE
|
±50﹪
|
||
|
LEVEL
|
600±150mVp-p
|
||
|
POWER ADAPTOR
|
|||
|
INPUT
|
100-240VAC 50/60Hz
|
POWER SWITCHING
|
|
|
OUTPUT
|
24VDC/2000mA
|
||
|
IMPEDANCE
|
75 OHM
|
ALL PORTS
|
|
|
CONNECTOR
|
“F”TYPE FEMALE
|
ALL PORTS
|
|
