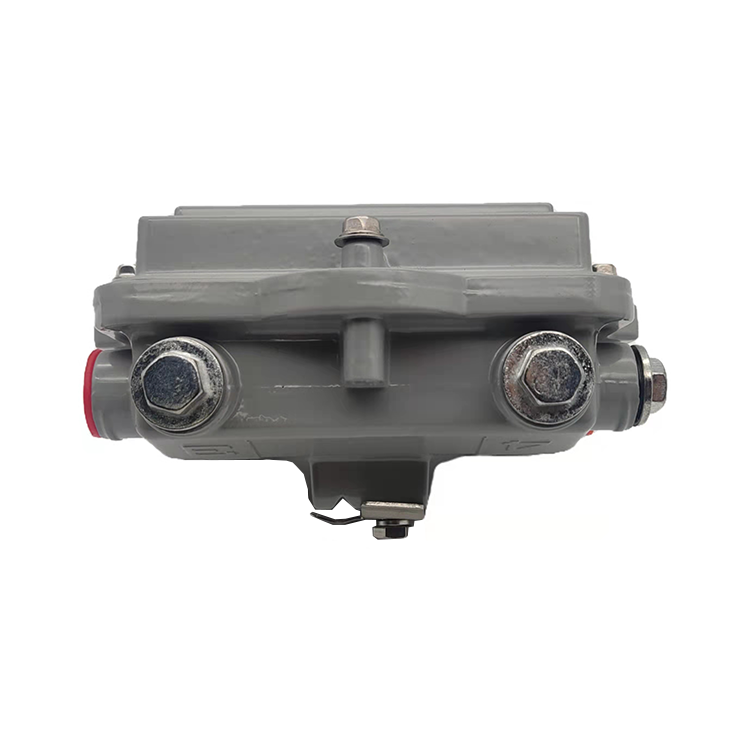

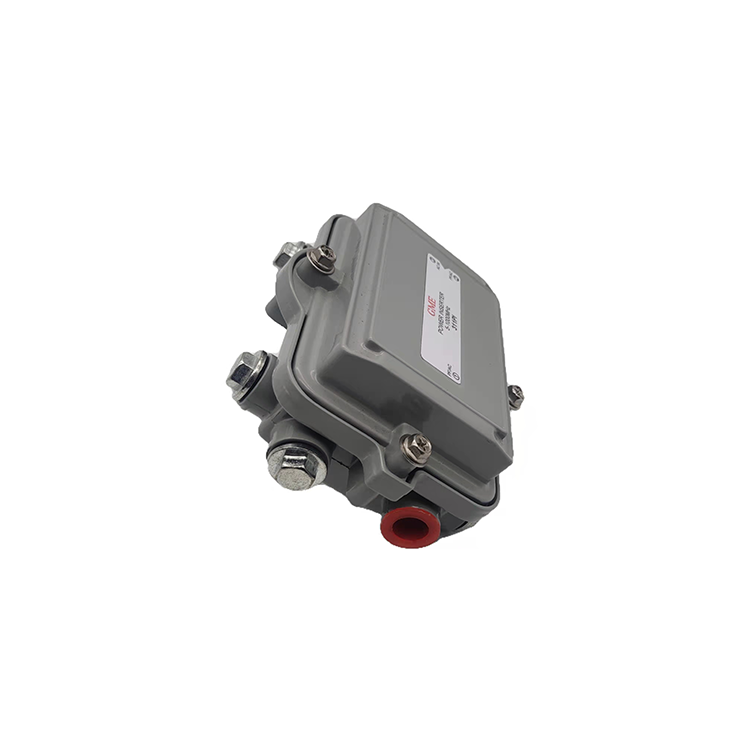

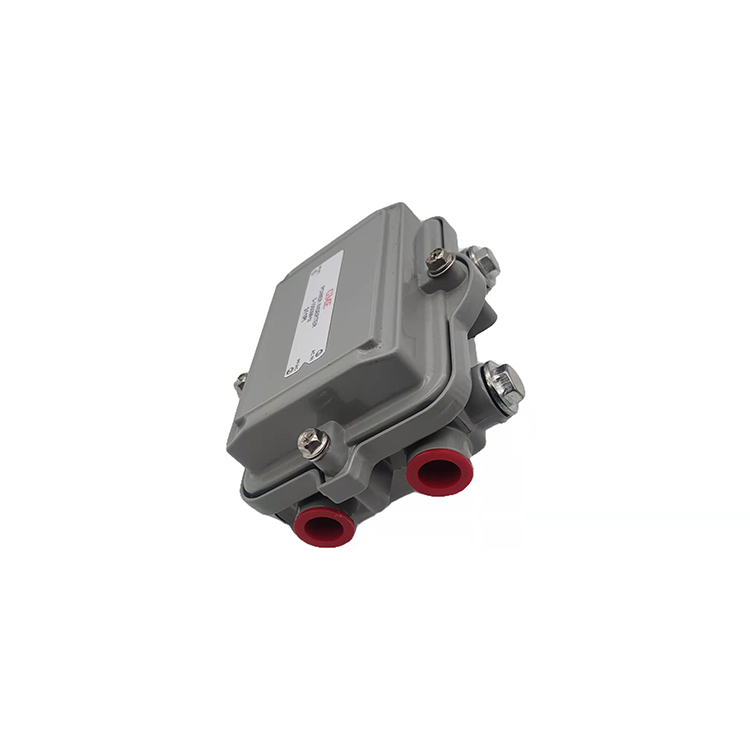

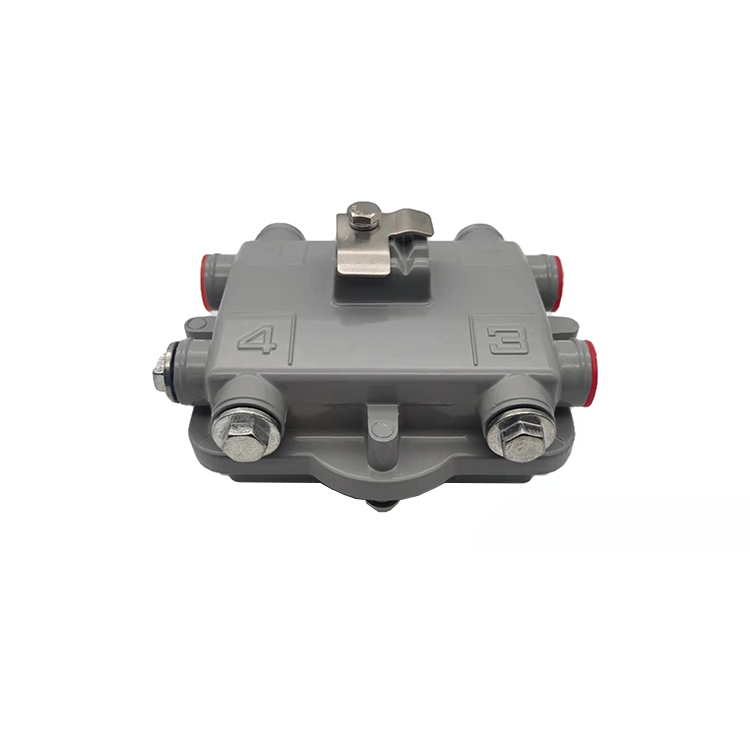

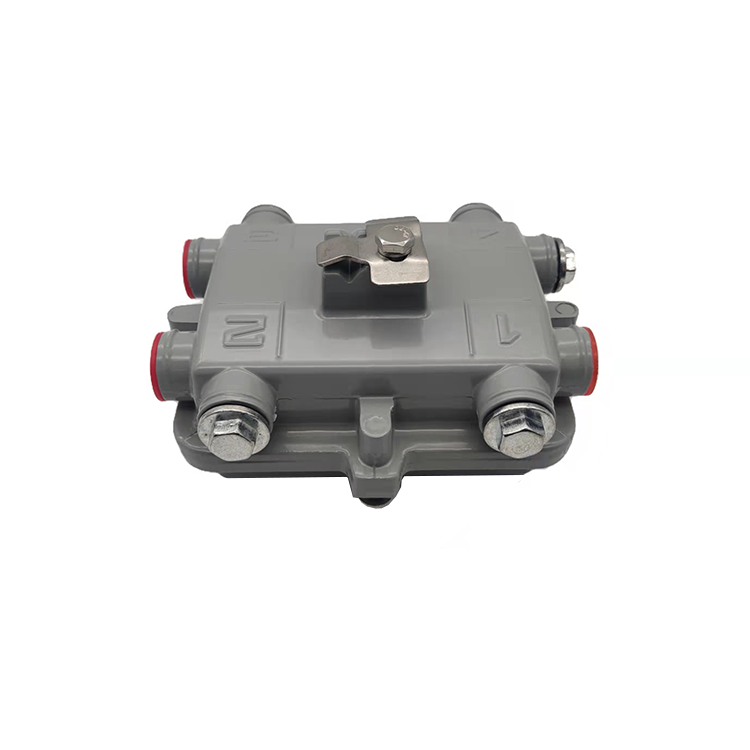

GDINS-002 Inserter

(311PI)

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDINS-002(311PI)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
1. FREQ. RANGE			5 - 1000 MHz
2. INSERTION LOSS	- 0.5 dB	-1.0 dB MAX.	5 - 40 MHz
	- 0.5 dB	-1.0 dB MAX.	41 - 470 MHz
	- 0.8 dB	-1.0 dB MAX.	471 - 860 MHz
	- 1.0 dB	-1.5 dB MAX.	861 - 1000 MHz
3. ISOLATION (RF TO AC)	-60 dB	-58 dB MIN.	5 - 40 MHz
	-50 dB	-45 dB MIN.	41 - 470 MHz
	-45 dB	-40 dB MIN.	471 - 860 MHz
	-40 dB	-35 dB MIN.	861 - 1000 MHz
4. RETURN LOSS (RF PORT)	-20 dB	-18 dB MIN.	5 - 40 MHz
	-20 dB	-18 dB MIN.	41 - 470 MHz
	-20 dB	-18 dB MIN.	471 - 860 MHz
	-18 dB	-16 dB MIN.	861 - 1000 MHz
5. AC PASS		12A MAX	AC TO RF
