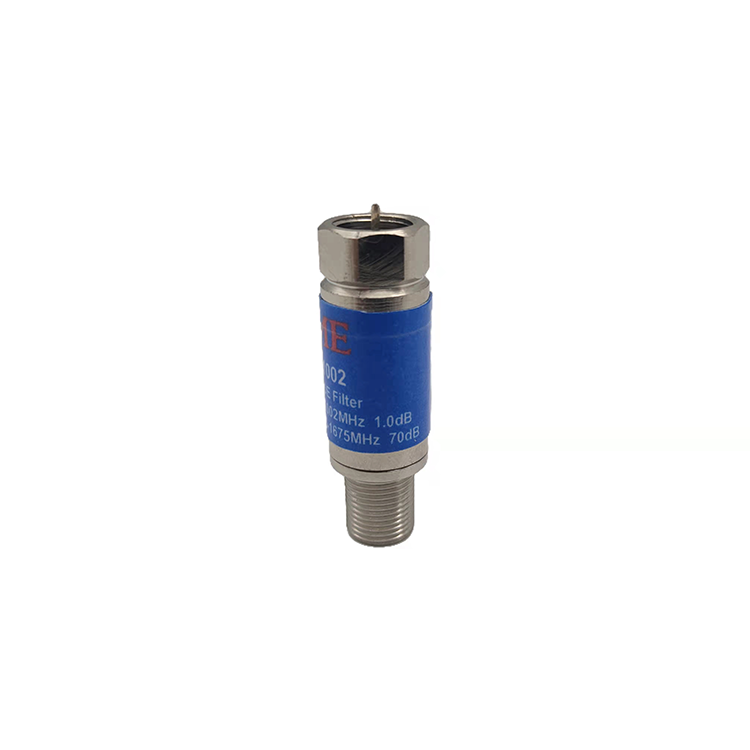

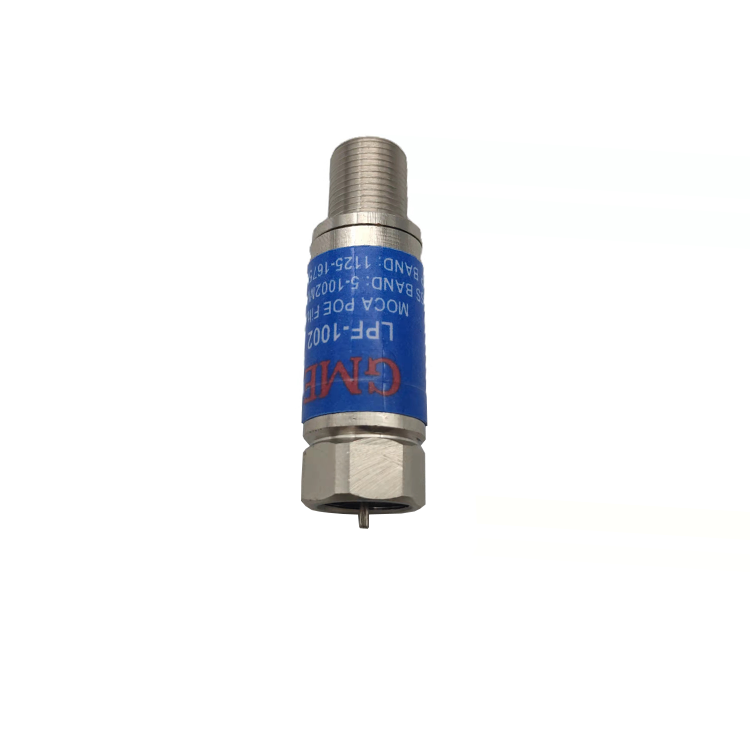

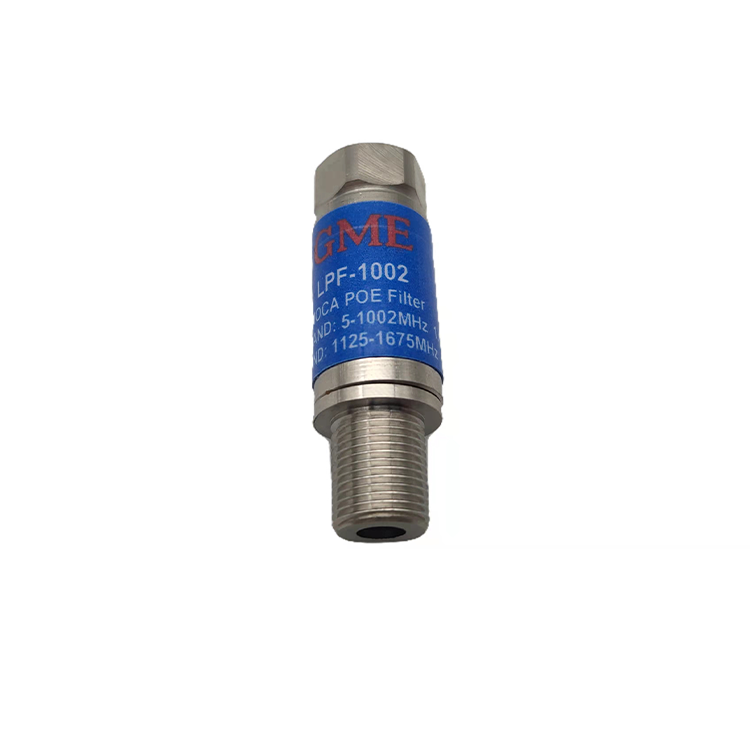

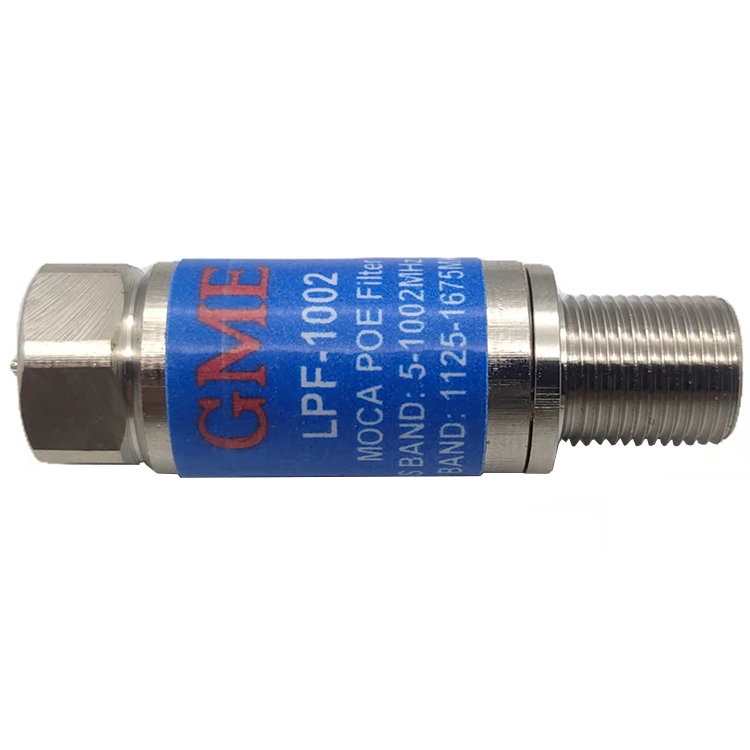

GDF-005 catv filter

LPF-1002-70

Consultation hotline：0755-27091915

Online Service

Parameter

Place of original: China
MODEL NO. : GDF-005 (LPF-1002-70）
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
Nominal RF impedance
75 ohms
Pass band
5-1002MHz
Rejection band
1125-3000MHz
Insertion loss
0.15dB max.
5 ~ 65 MHz
0.95dB max.
65~860 MHz
2.0dB max.
860 ~ 1002 MHz
Return loss
18dB min.
5 ~ 65 MHz
16dB min.
65~860 MHz
16dB min.
860 ~ 1002 MHz
Band rejection
70dB min.
1125~ 3000 MHz
RFI Shielding
100dB min.
Surge withstand
Conform to ANSI/SCTE 81
2003, IEEEC62.41-1991 Cat
B3 combination waveform,
6KV 3000A
