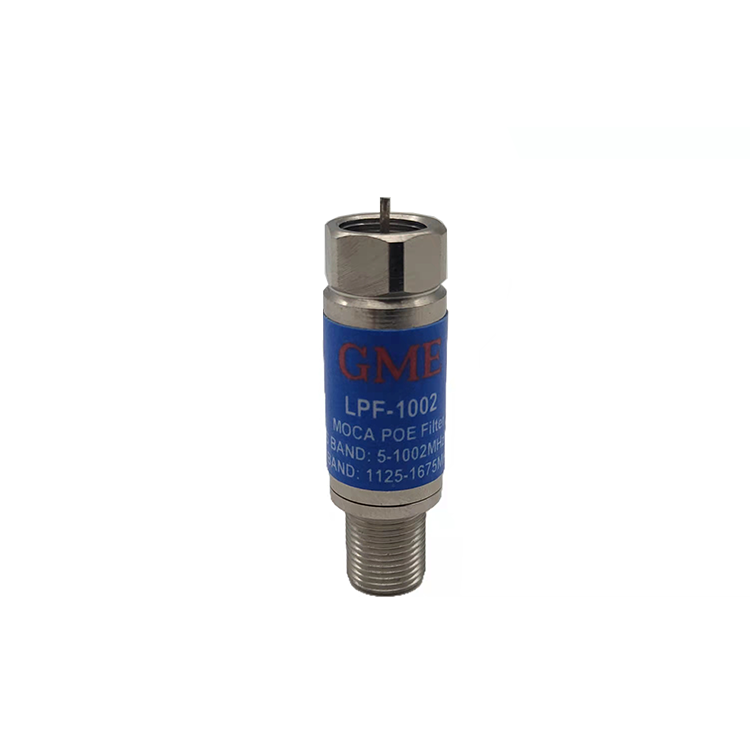

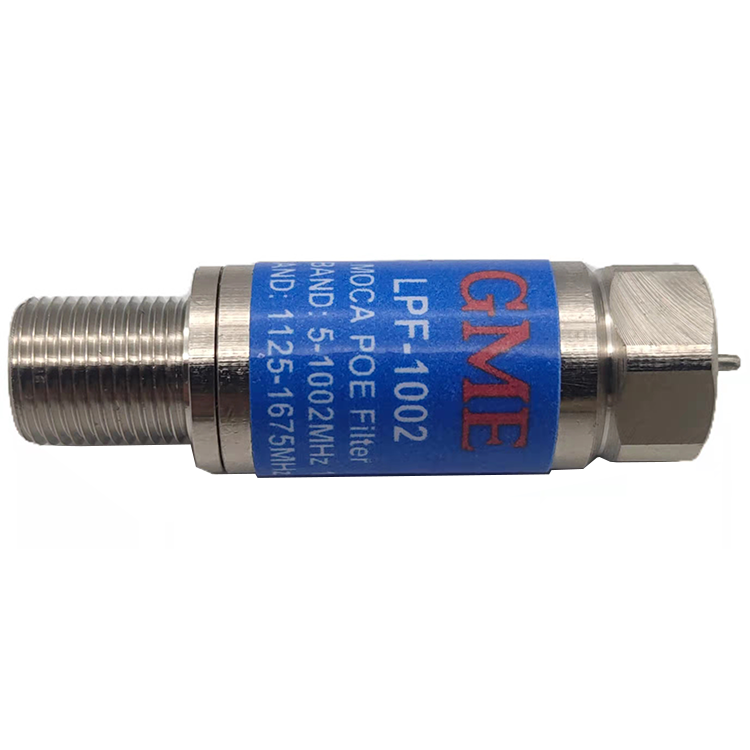

GDF-003 catv filter

LPF-1002-35

Consultation hotline：0755-27091915

Online Service

Parameter

Place of original: China
MODEL : GDF-003 (LPF-1002-35)
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
Nominal RF impedance
75 ohms
Pass band
5-1002MHz
Rejection band
1125-1525MHz
Insertion loss
1.5dB max.
5 ~ 1002 MHz
Return loss
14dB min.
5 ~ 1002 MHz
1.5dB max.
1125 ~ 1525 MHz
Band rejection
35dB min.
1125 ~ 1525 MHz
RFI Shielding
100dB min.
Surge current
IEEE 6KV A3
Delay inequality
5ns max
5-1002MHz (any 3.58MHz)
Operating temp
-40 °F - 140 °F
