GDF-001 catv filter

3823

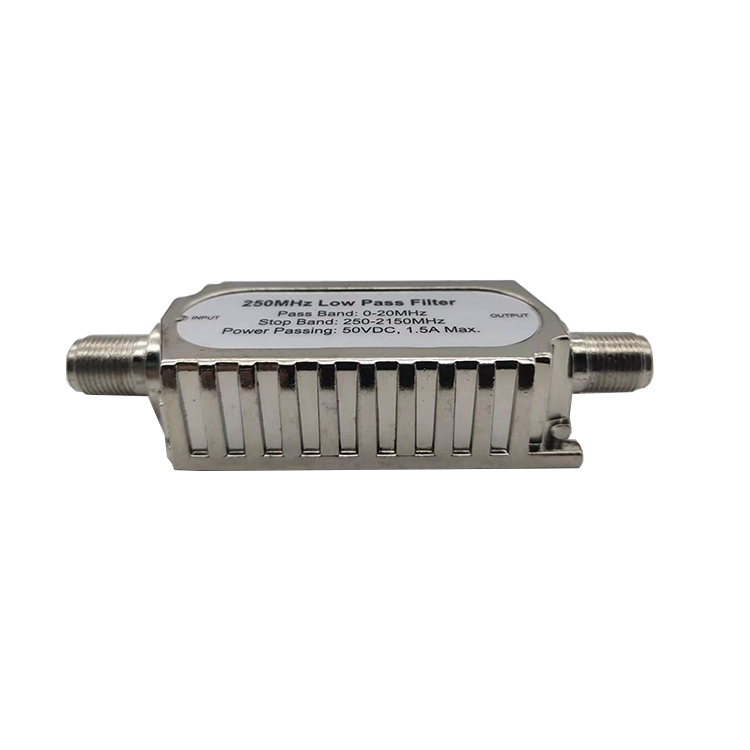

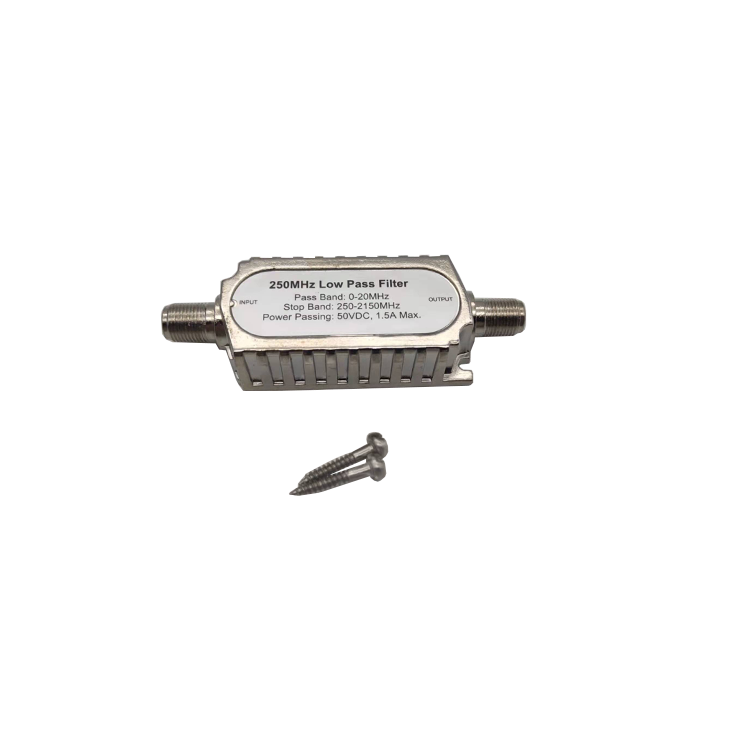

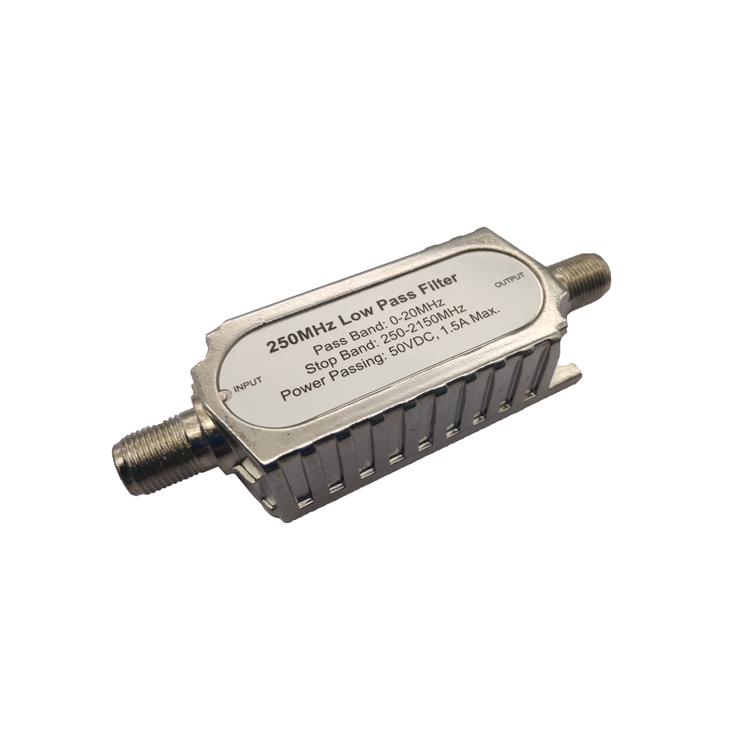

250MHz Low Pass Filter

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin: Guangdong,China
MODEL NO. : GDF-001 (3823)
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
Freq range
250-2150MHz
         Pass band
0-20MHz
         Stop band
250-2150MHz
Insertion Loss
        Pass band
-0.5dB
-0.8dB max
0-20MHz
Attenuation
       Stop band
40dB
30dB min
250-2150MHz
       Return Loss
-20dB
-18dB min
0-20MHz
Power Passing
50VDC/1.5A max
Output to Input
Connector
F type female
Input and output
Operature temperature
-15℃ to +55℃
