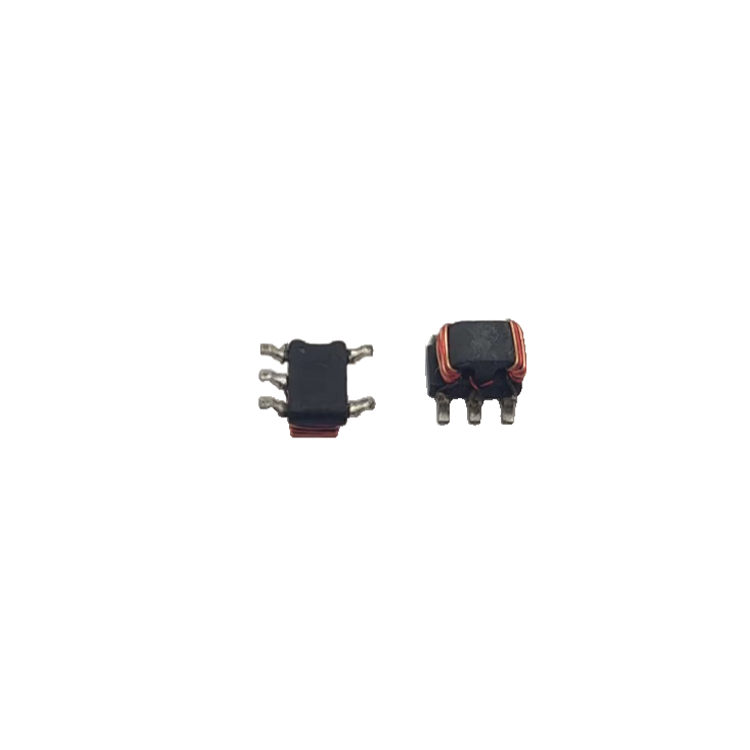

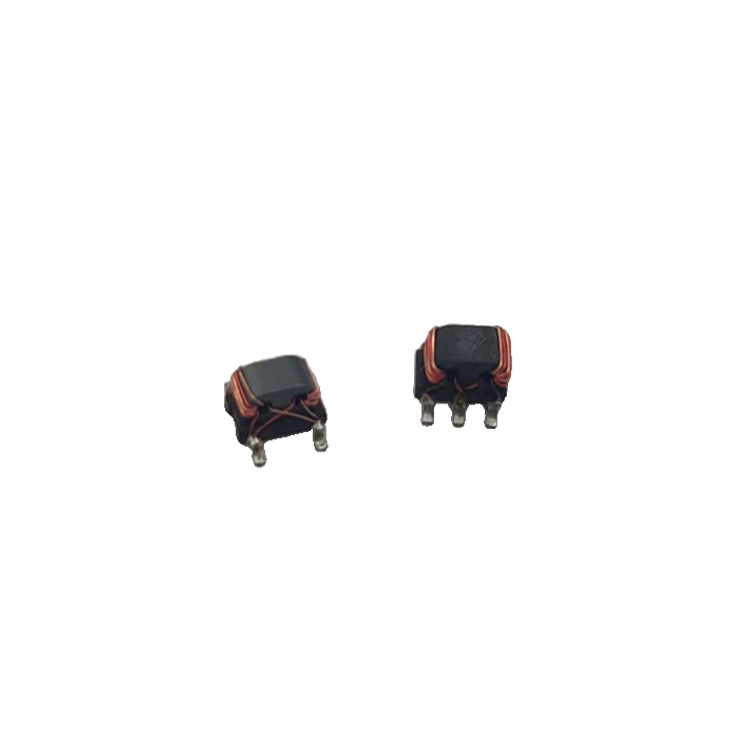

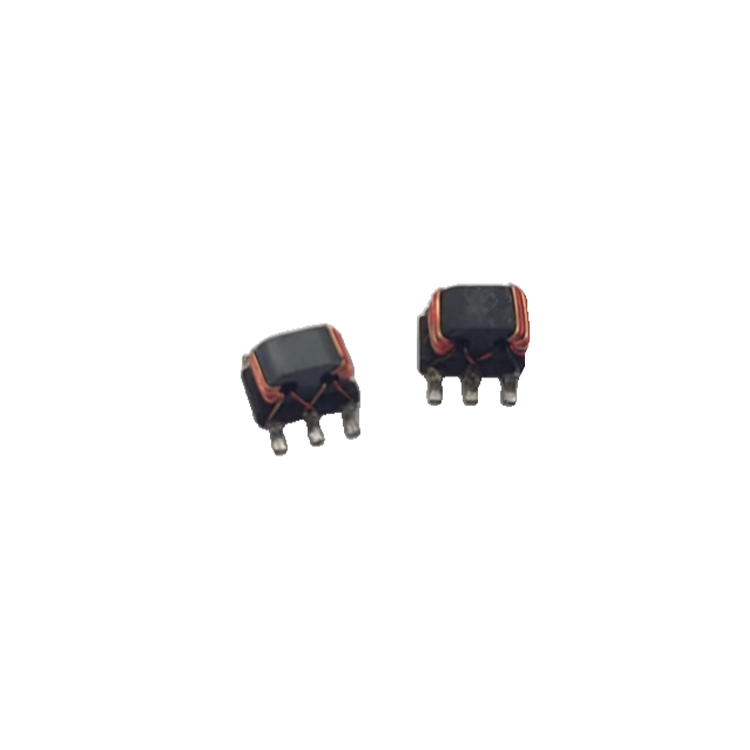

GDBA-005 Baron

(BM-1 )

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-005(BM-1)
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Main line loss
out1	5 - 900 MHz	dB		1.2	2.0
out2	5 - 900 MHz	dB		1.5	2.5
Amplitude Balance	5 - 900 MHz	dB	0	0.7	1.5
Phase Balance	5 - 900 MHz	Degrees	0	3	15
Input Return Loss	5 - 470 MHz	dB	15	18
	470 - 900 MHz	dB	12	16
