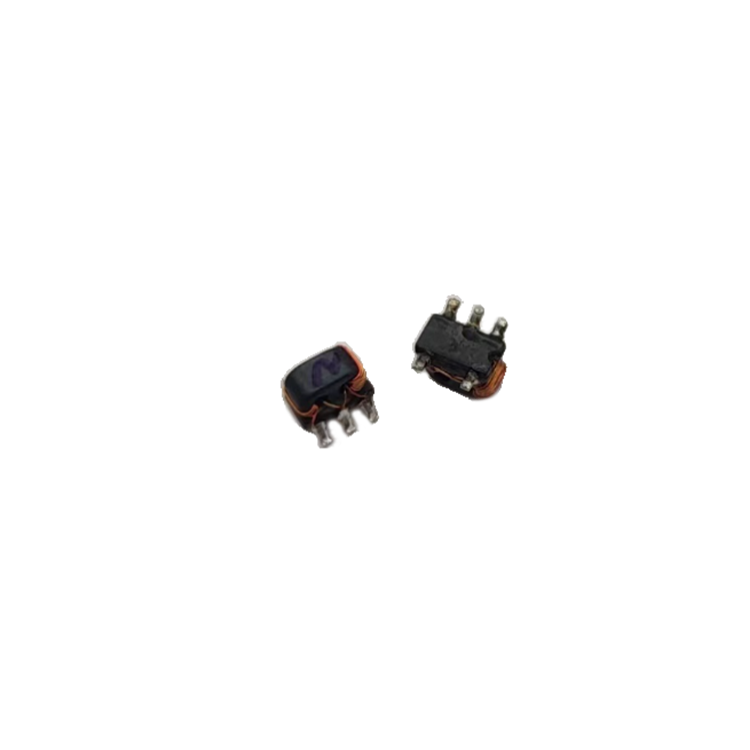

GDBA-003 Baron

(BDC-1G-16dB )

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-003(BDC-1G-16dB )
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Coupling		dB		16
Coupling Loss	5 - 1000 MHz	dB		16.0	±1.0
Main Line Loss	5 - 1000 MHz	dB	0.3	0.6	1.5
Input Return Loss	5 - 1000 MHz	dB	16	24
Output Return Loss	5 - 1000 MHz	dB	16	26
Coupling Return Loss	5 - 1000 MHz	dB	16	24
Isolation	5 - 1000 MHz	dB	20	45
