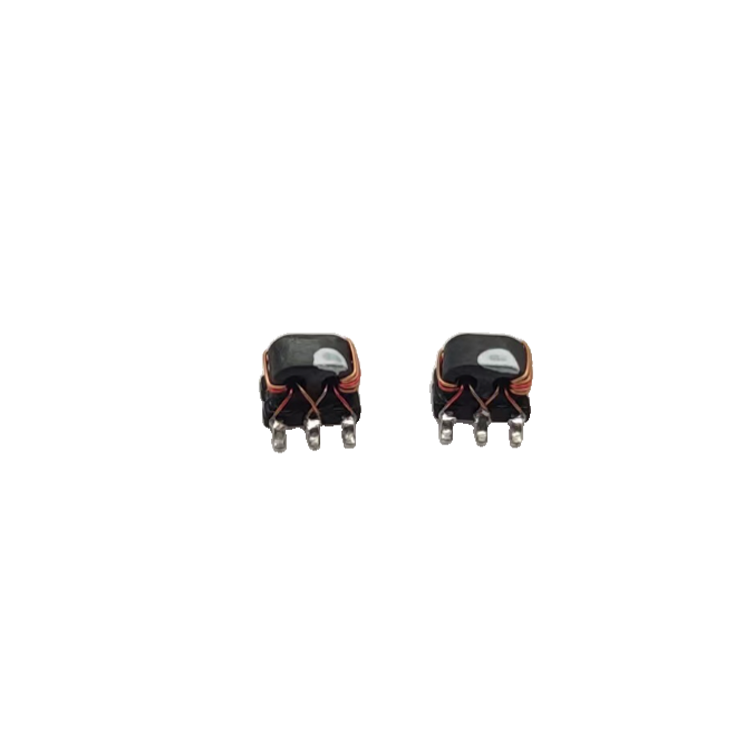

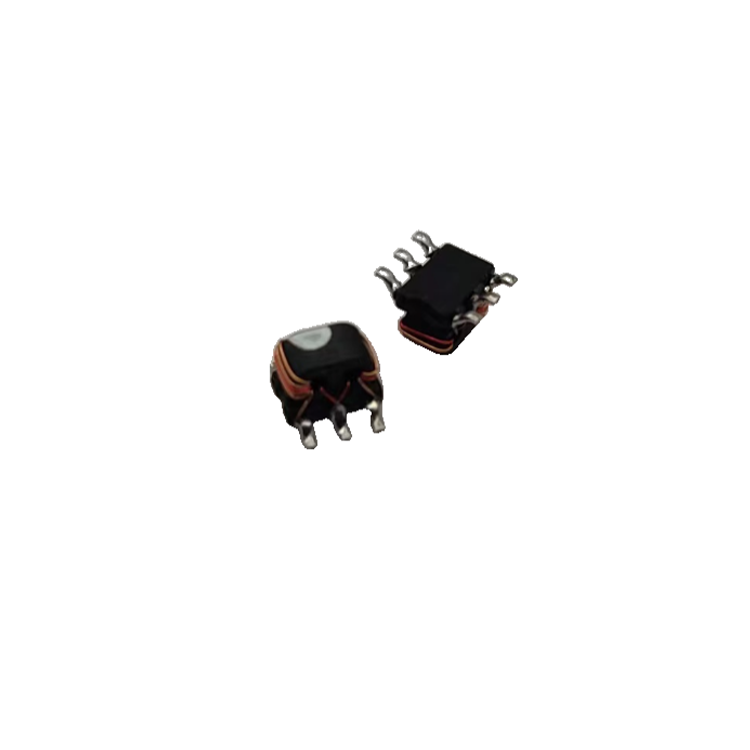

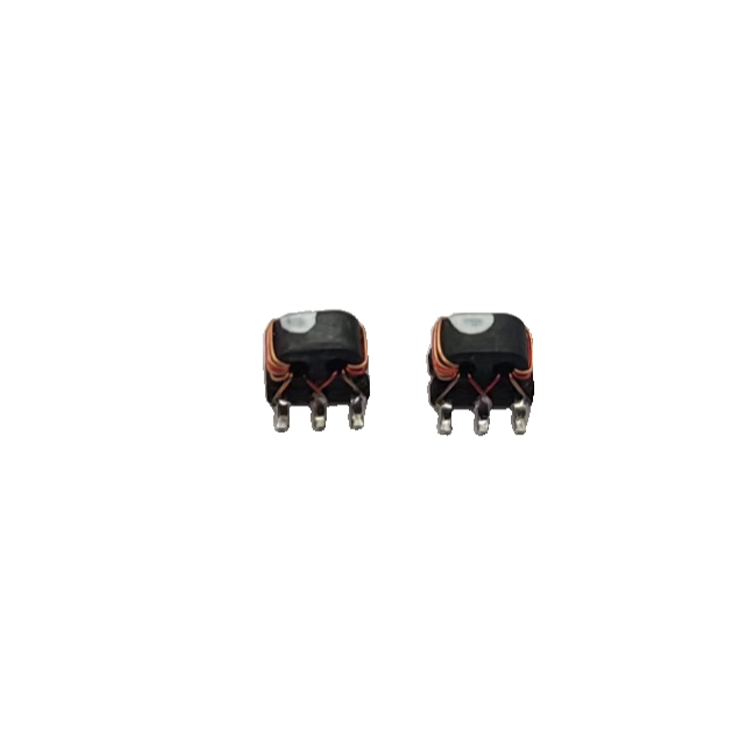

GDBA-001 Baron

(BS-1G-1 )

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-001(BS-1G-1 )
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Insertion loss
In to out1	5 - 1000 MHz	dB		3.5	4.0
In to out2	5 - 1000 MHz	dB		3.5	4.0
Input Return Loss	5 - 1000 MHz	dB	16	20
Output Return Loss	5 - 1000 MHz	dB	16	20
Isolation	5 - 250 MHz	dB	25	27
	250 - 1000 MHz	dB	20	23
