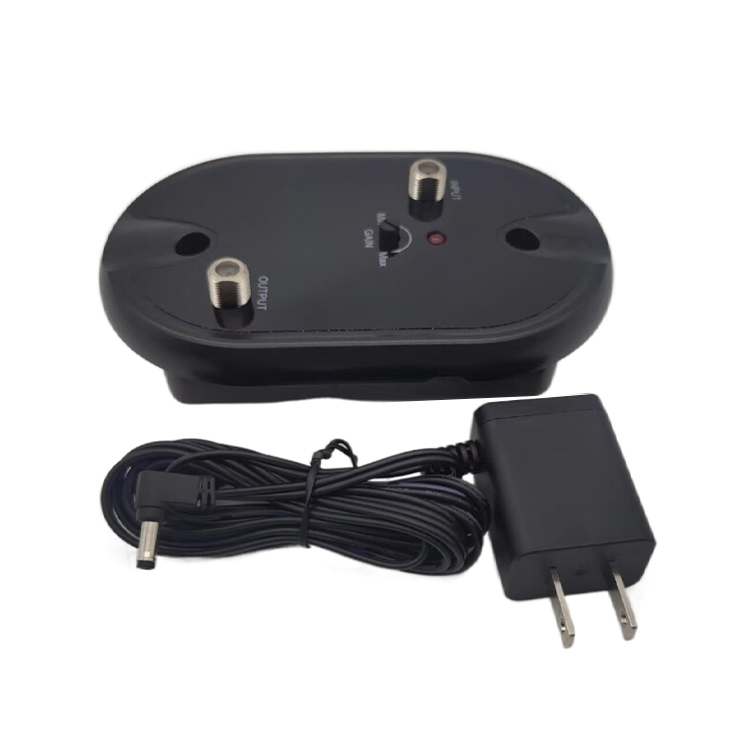

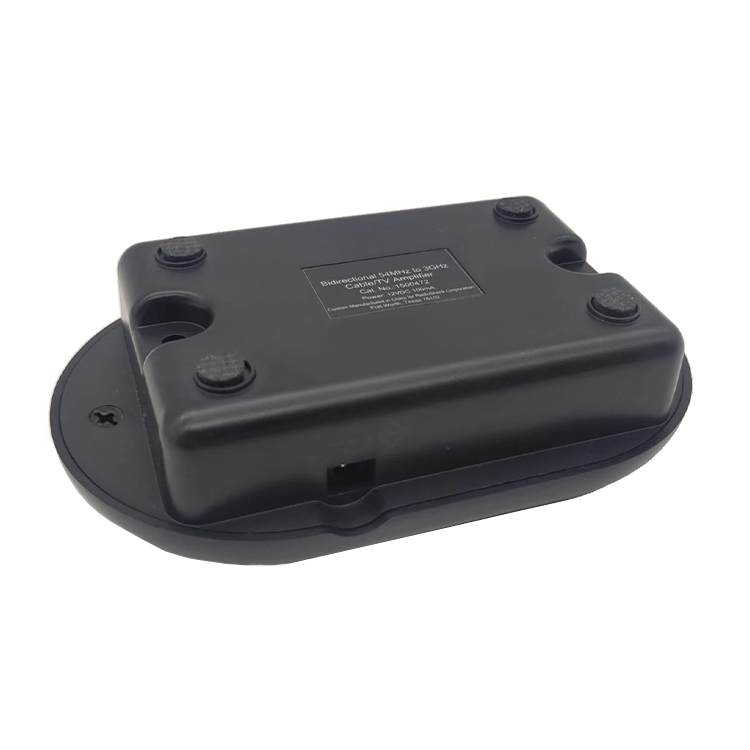

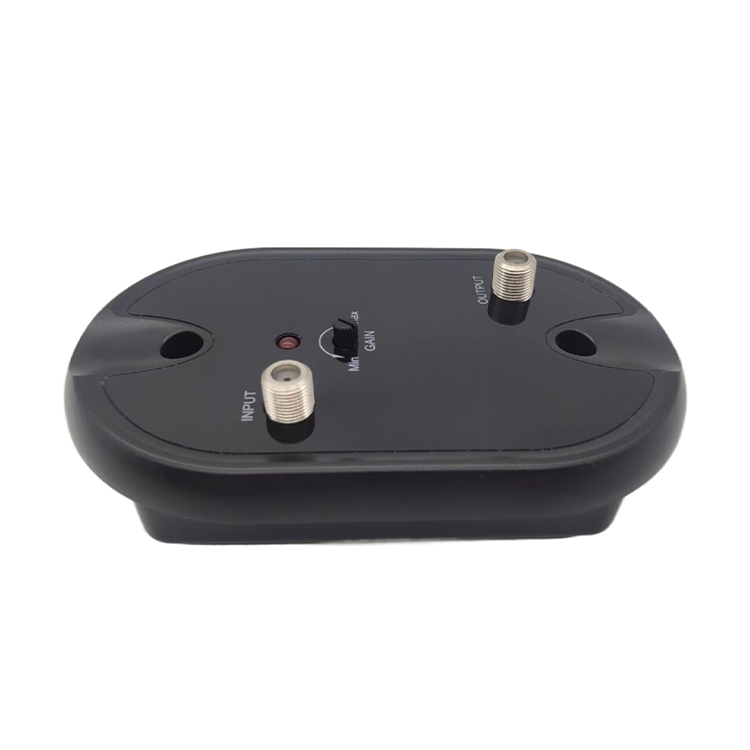

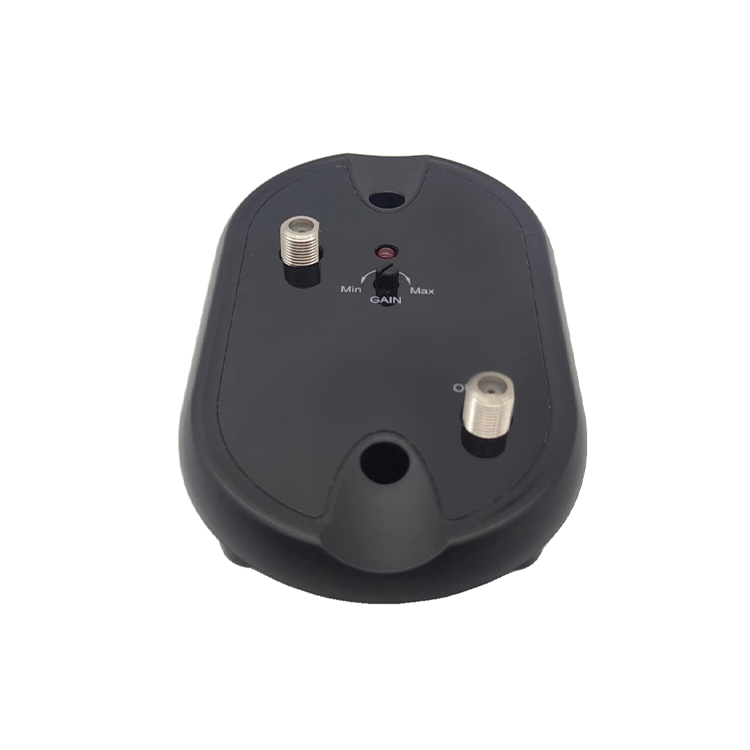

GDAMP-060 TV amplifier

(1500472-C)

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-060-2(1500472-C)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
Freq. Range
Forward path			54 – 3000 MHz
Reverse Path			5- 40 MHz
Forward Path
Gain		15 dB Min	54–100 MHz
		16 dB Min	101–1000 MHz
		13 dB Min	1001- 2150 MHz
		10 dB Min	2151–3000 MHz
Gain Adjustment Range		8 dB min
Reverse Path
Insertion Loss		- 4 dB max.	5 – 40 MHz
Input capacity
1dB compressoin	103dBuv	101dBuv max	At 61.25MHz input
Noise figure
		7.5dBmax	54-1000MHz
		8.5dBmax	1001-2000MHz
		9.5dBmax	2001-3000MHz
Power adaptor
input		100-240VAC,50/60Hz
output		5VDC/200mA
