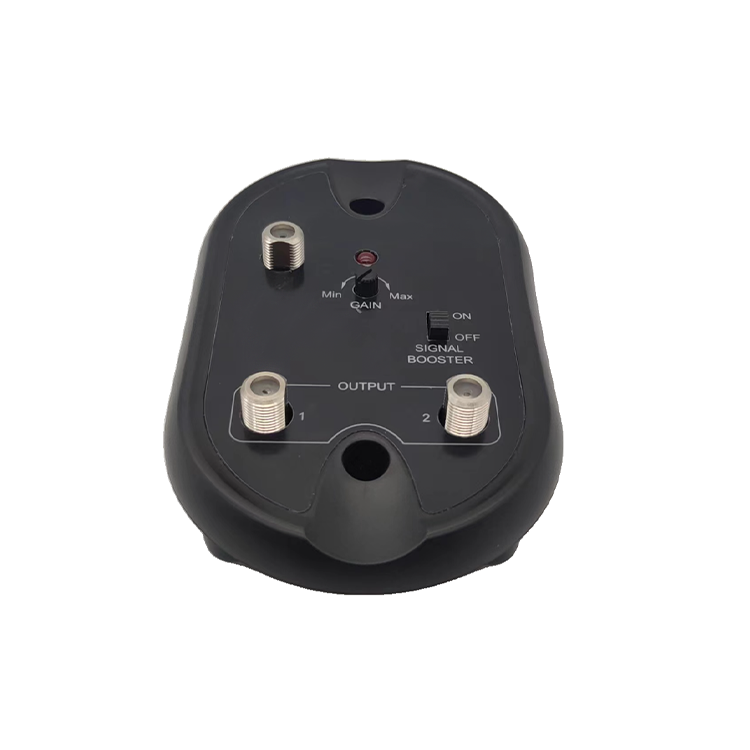

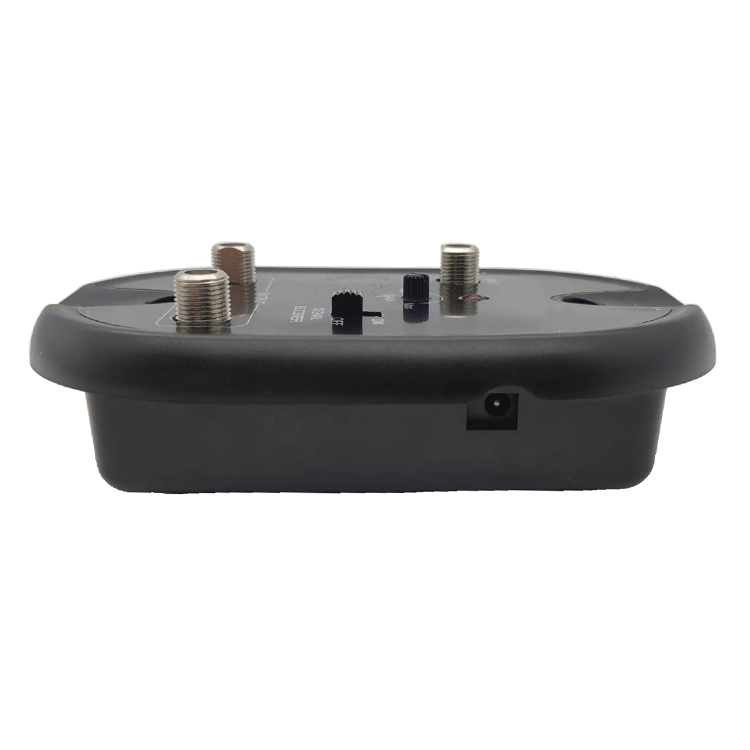

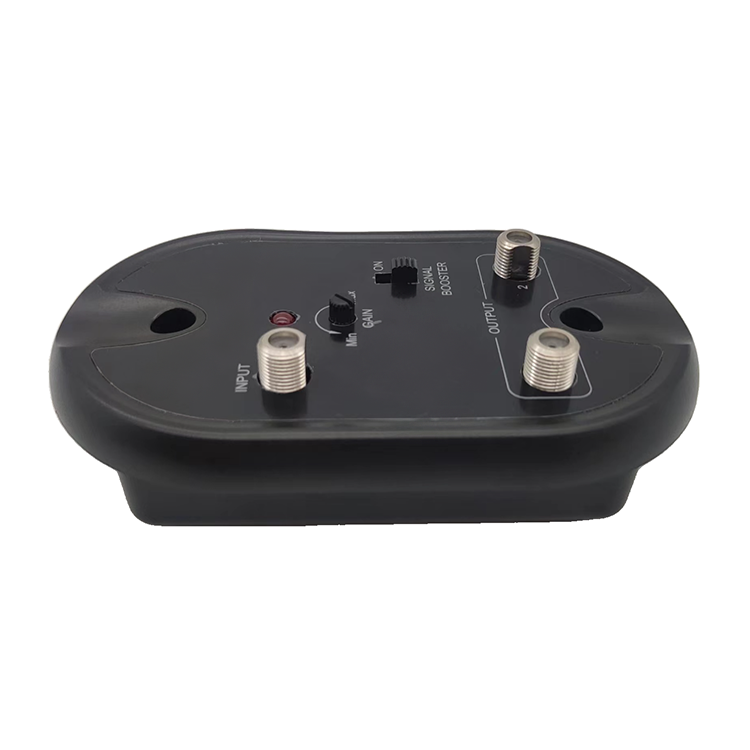

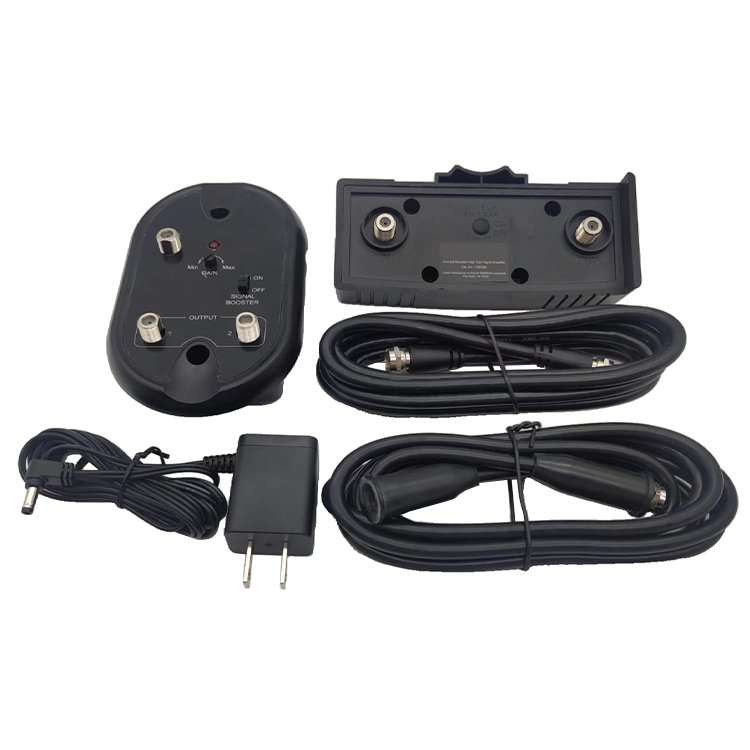

GDAMP-059 TV amplifier

(1500526-C)

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-059 (1500526-C)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
Freq. Range			54 – 806 MHz
Gain
Signal booster on	38dB	33dBmin	54 – 216 MHz
	36dB	31dBmin	470-806MHz
Signal booster off	25dB	22dBmin	54 – 216 MHz
	25dB	20dBmin	470-806MHz
Gain adj range		8dBmin	54 – 806 MHz
FM trap
88MHz / 120MHz	-2.5dB	-3.5dB max.	@BETWEEN TO OVER GAIN
95~108 MHz	-15dB	-12dB min.	@BETWEEN TO OVER GAIN
Input capability
1dB compressoin		70dBuv max	At 61.25MHz input
		73dBuv max	At 471.25MHz input
Noise Figure	3.5 dB	5dBmax	54 – 806 MHz
Impedance		75 ohm	IN/OUT Port
Connector		Type “F” Female	IN/OUT Port
Power adaptor
input		100-240VAC,50/60Hz
output		5VDC/200mA
