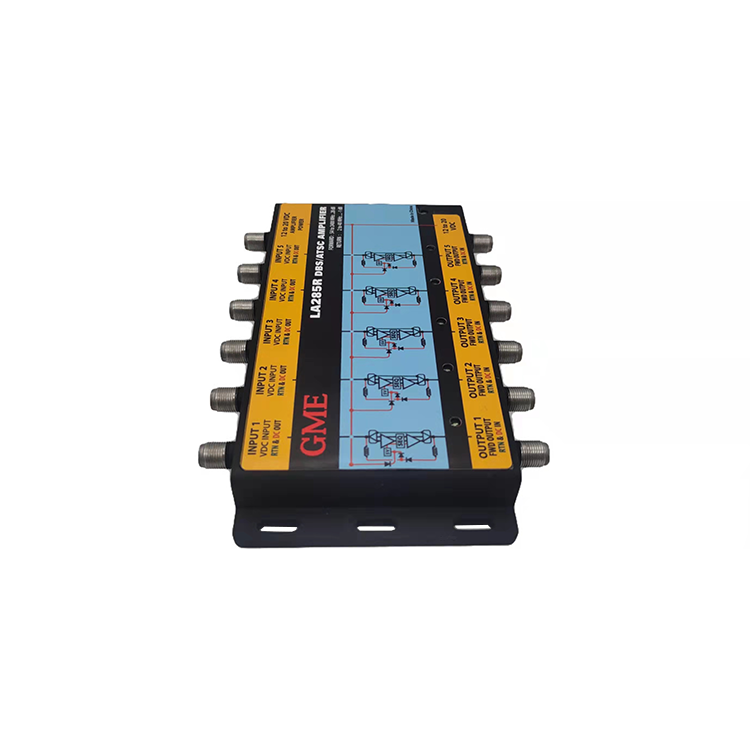

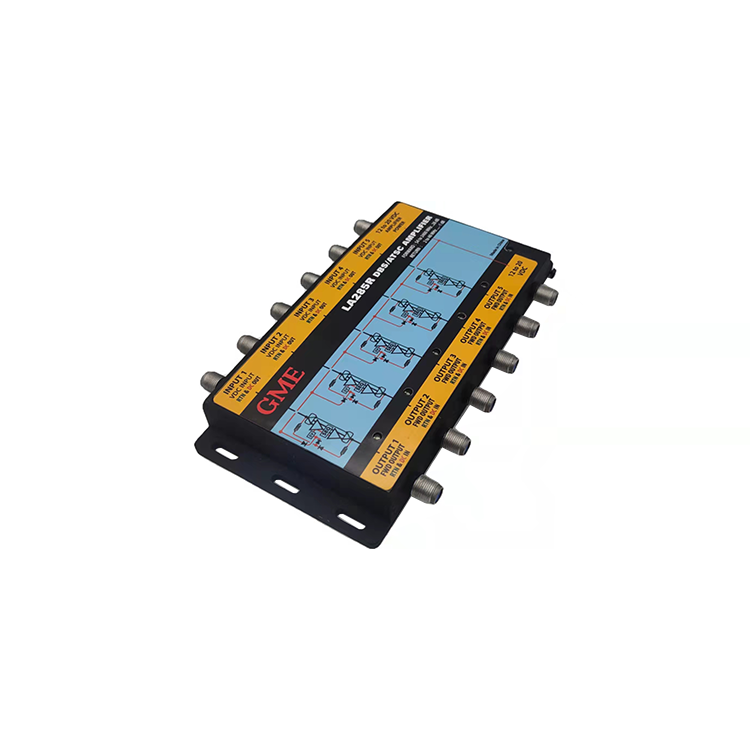

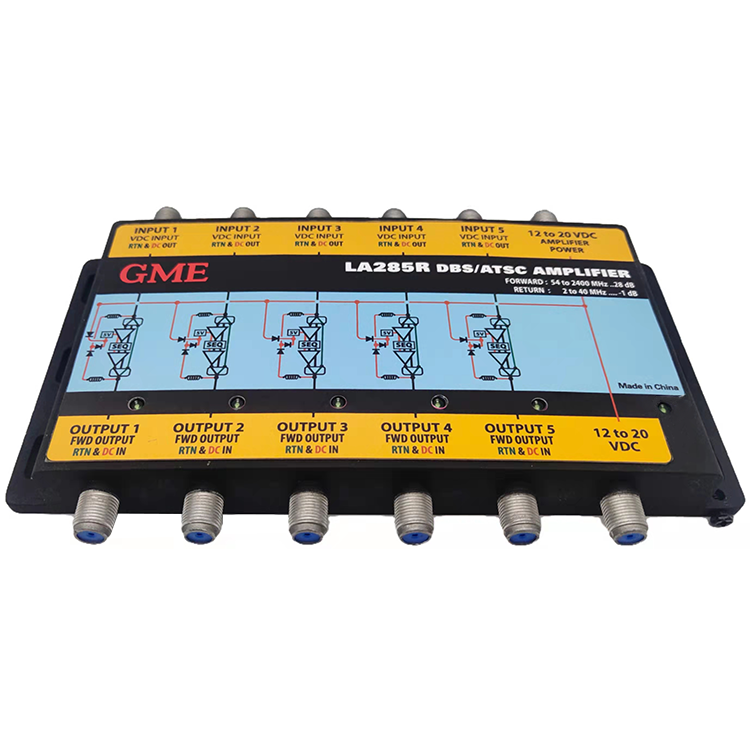

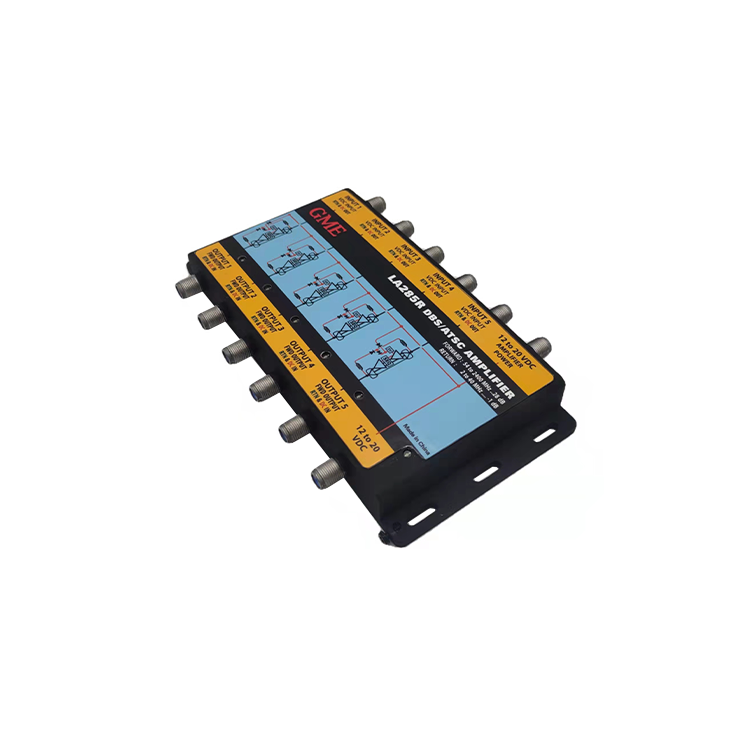

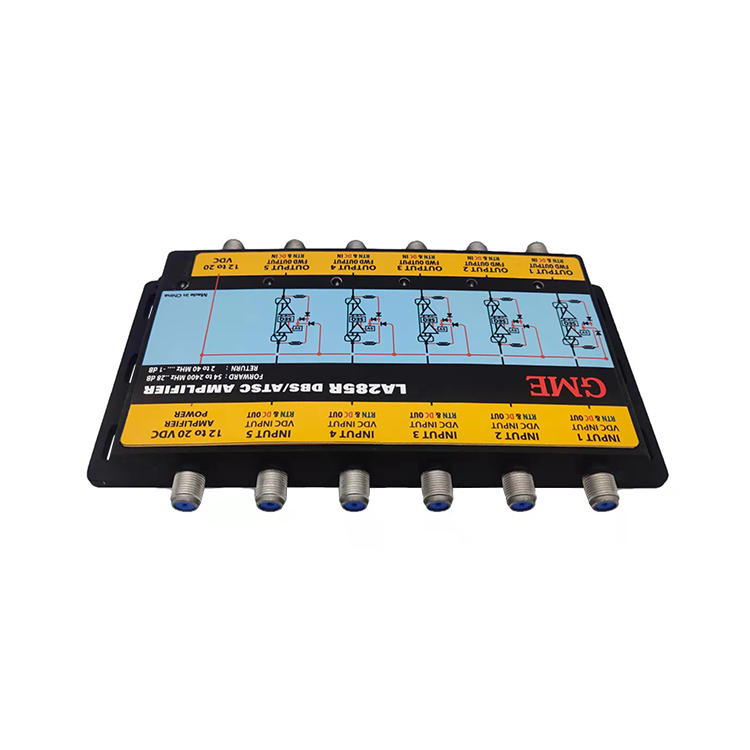

Gdamp-034 amplifier

LA285R

54 to 2400 MHz DBS, OTA, CATV line powered amplifi er with 30 dB forward gain and passive subband return.

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-034(LA285R)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE
RETURN PATH			2-42 MHz
FORWARD PATH			54 ~ 2400 MHz
GAIN	+19dB	+17dB MIN	54 MHz
	+20dB	+18dB MIN	100 MHz
	+26dB	+24dB MIN	950 MHz
	+29dB	+27dB MIN	1450 MHz
	+32dB	+28dB MIN	2150 MHz
	+32dB	+28dB MIN	2400 MHz
INSERTION LOSS	-3.8 dB	-4.8 dB MAX	2-42 MHz
RETURN LOSS INPUT	-12 dB	-10 dB MIN	2-42 MHz
	-12 dB	-10 dB MIN	54 ~ 2400 MHz
OUTPUT	-12 dB	-10 dB MIN	2-42 MHz
	-12 dB	-10 dB MIN	54 ~ 2400 MHz
ISOLATION INPUT TO INPUT	-40 dB	-35dB MIN	2-42MHz
	-40 dB	-35dB MIN	54 ~ 2400 MHz
OUTPUT TO OUTPUT	-40 dB	-35dB MIN	2-42 MHz
	-40 dB	-35dB MIN	54 ~ 2400 MHz
CROSS POLARIZATION	-40 dB	-35dB MIN	2-42 MHz
	-40 dB	-35dB MIN	54 ~ 2150 MHz
	-35 dB	-30dB MIN	2151 ~ 2400 MHz
INPUT CAPABILITY
(1dB COMPRESSION)	96 dBuV	94 dBuV MAX.	AT 250 MHz INPUT
	94 dBuV	92 dBuV MAX.	AT 950 MHz INPUT
WORKING VOLTAGE		12 ~ 36VDC
IMPEDANCE		75 OHM
CONNECTOR		“F”TYPE FEMALE	ALL PORTS
DC PASSING			OUTPUT ð INPUT
