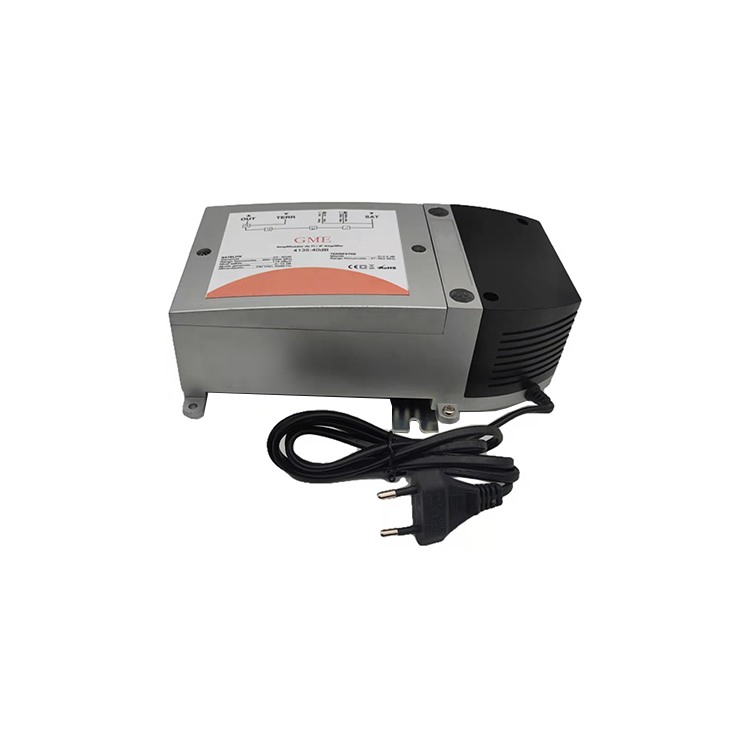

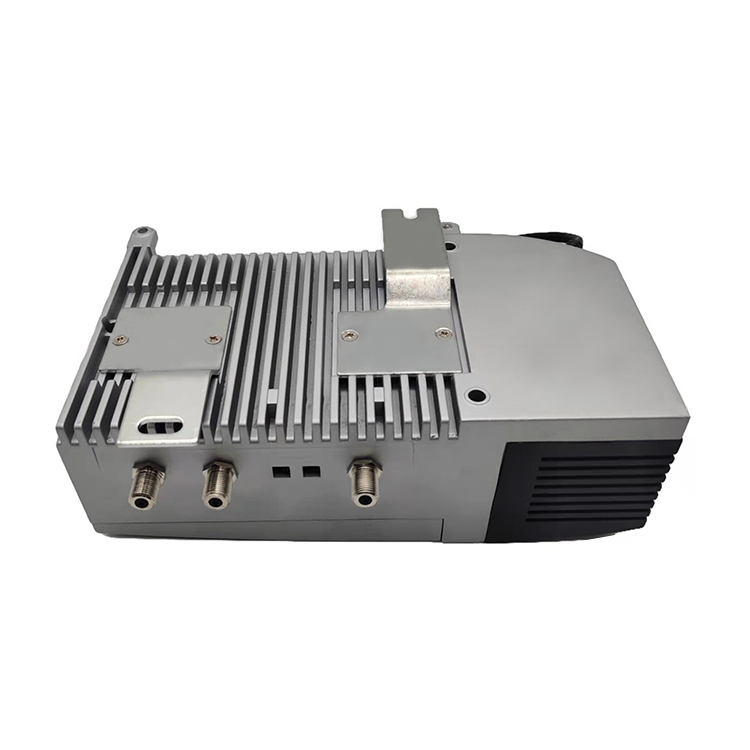

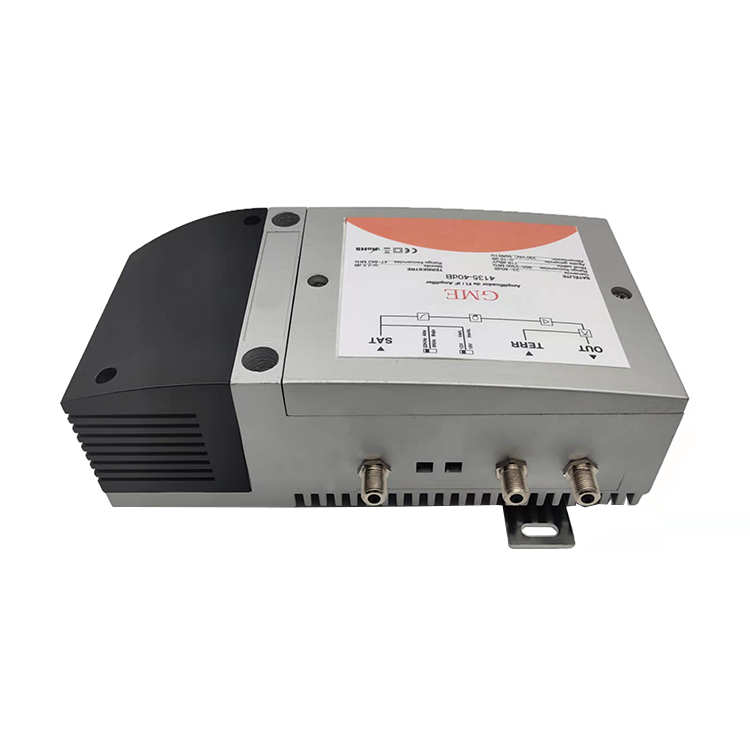

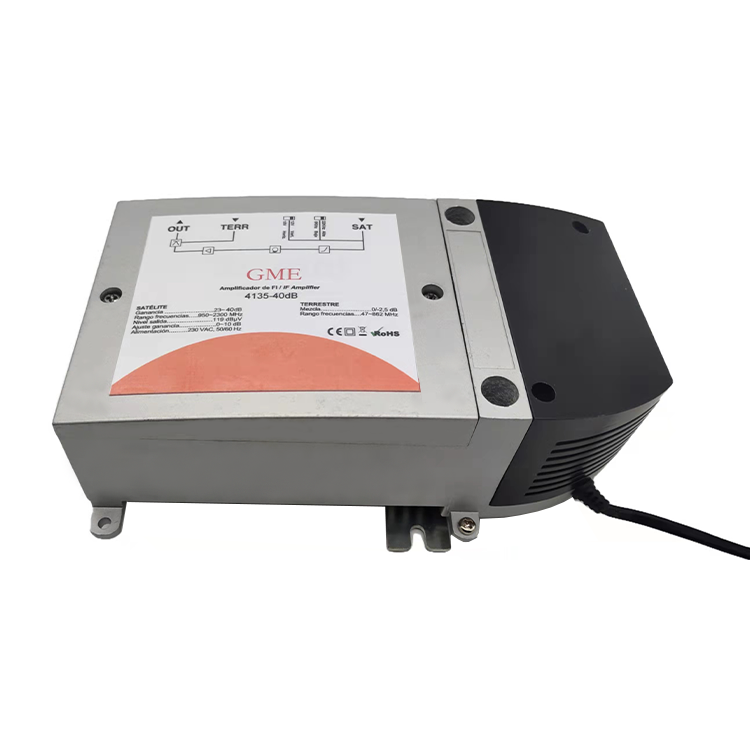

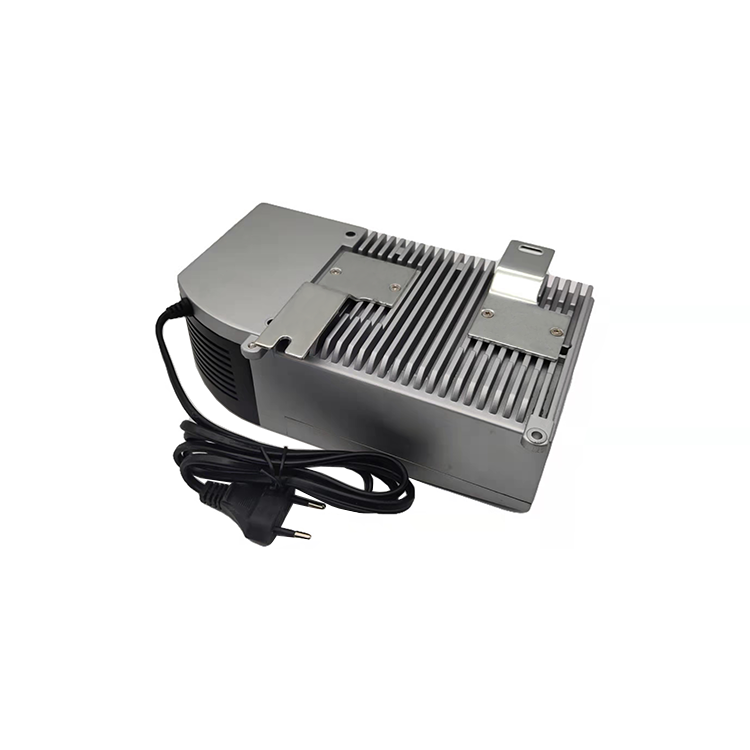

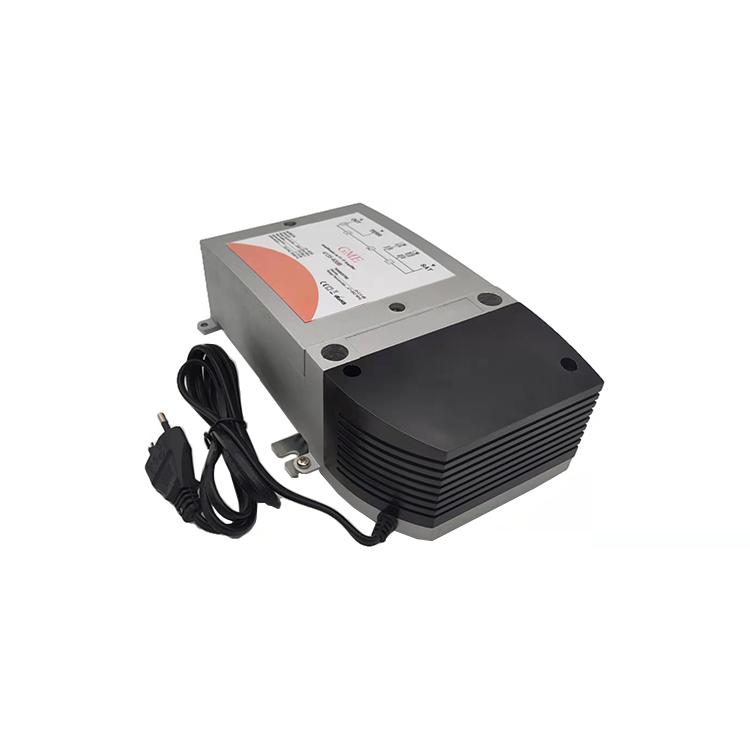

Gdamp-027 amplifier

4135-40dB

Amplificador FI con mezcla RF IF Amplifier with RF mixing

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-027(4135-40dB)
FREQUENCY (MHz)	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE TERR.			47 ~ 790 MHz
SAT.			950 ~ 2400 MHz
INSERTION GAIN (LOSS)
TERR. TO OUT	- 1.5 dB	- 2.5 dB MAX.	47 ~ 698 MHz
TERR. TO OUT	- 4.5 dB	- 5.5 dB MAX	698 ~ 790 MHz
SAT. TO OUT	+ 35 dB	+ 33 dB MIN.	950 MHz
	+ 40 dB	+ 39 dB MIN.	1450 MHz
	+ 42 dB	+ 40 dB MIN.	2150 MHz
	+ 42 dB	+ 41 dB MIN.	2400 MHz
REJECTION
SAT.	-35 dB	-30 dB MIN.	47 ~ 790 MHz
TERR.	-43dB	-42 dB MIN.	950 ~ 2400 MHz
		-15 dB MIN.	@806 MHz
		-45 dB MIN.	@822 MHz
		-42 dB MIN.	@862 MHz
GAIN CONTROL	18 dB	15 dB MIN.	950 ~ 1450 MHz
	15 dB	12 dB MIN.	1451 ~ 2400 MHz
INPUT CAPABILITY
(1dB COMPRESSION)	89dBuV	88dBuV MIN.	AT 950 MHz INPUT
OUTPUT LEVEL(IMD3=35dB)	122dBuV	121dBuV MAX	AT 950MHz and 952MHz
OUTPUT VOLTAGE
SAT. / VEST.		11.0 ~ 13.0VDC	AT 0 ~ 300mA
SAT. / HORIZ.		17.0 ~ 19.0VDC	AT 0 ~ 300mA
POWER SUPPLY
CONNECTOR		“ F ” TYPE FEMALE	ALL PORTS
IMPEDANCE		75 ohms	ALL PORTS
22KHz OUTPUT LEVEL		650±250mVp-p
FREQUENCY		22±4KHz
