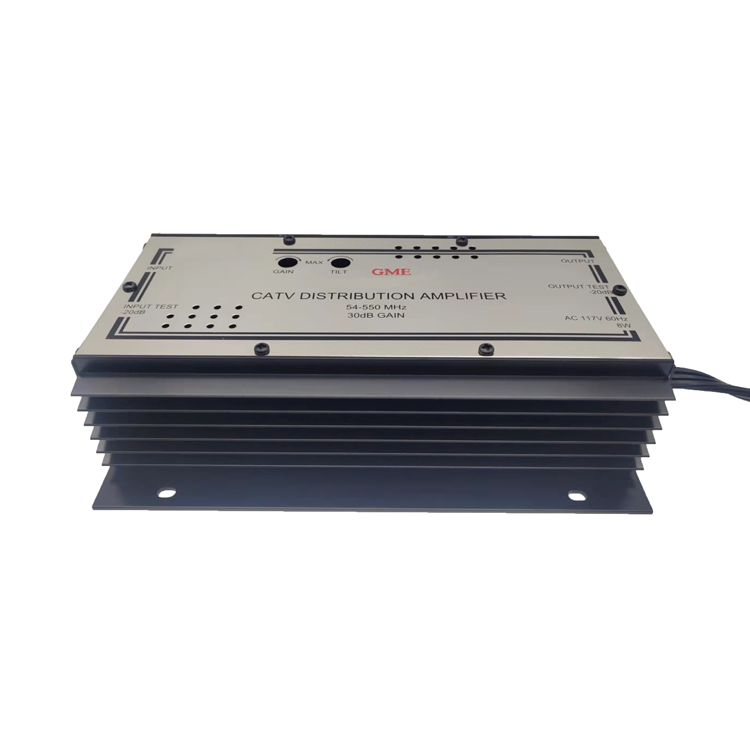

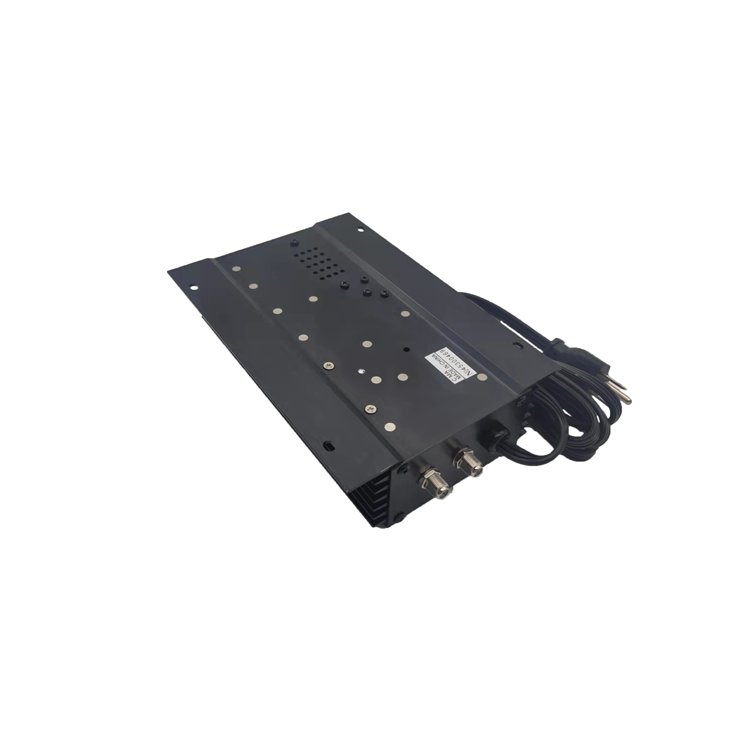

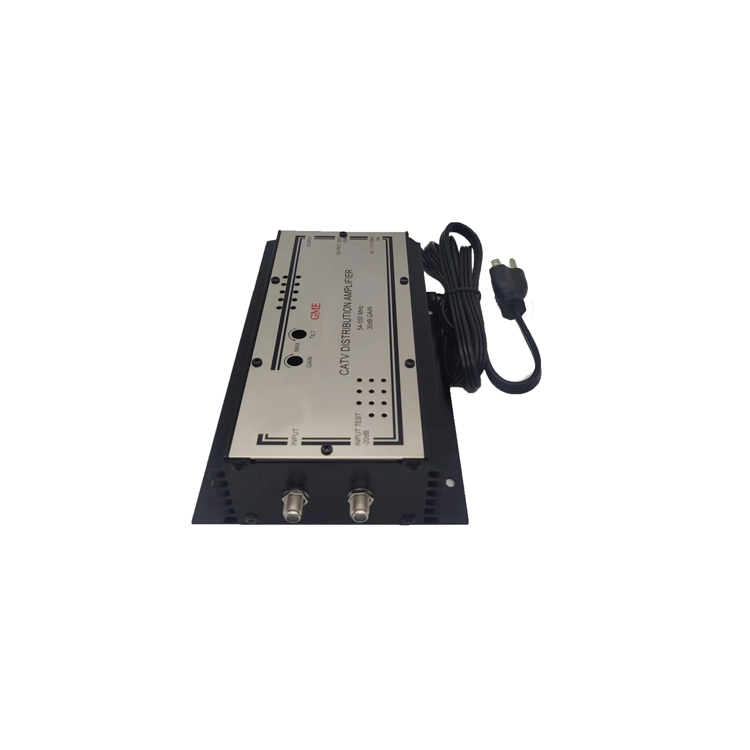

Gdamp-019 amplifier

The HCA Series amplifiers incorporate high quality push-pull hybrid modules to provide the highest output and lowest distortion levels possible. A regulated power supply along with an extra large heatsink case provide the reliability required for operation in the most hostile environments.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong, China
Model Number:GDAMP-019
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
1.FREQ.RANGE
50~550 MHz
2.GAIN
30 dB
28 dB MIN.
3.TILT CONTROL
16 dB
14 dB MIN.
4.GAIN CONTROL
16 dB
14 dB MIN.
5.FLATNESS
±1.5 dB
ANY 100MHz BAND
6.RETURN LOSS
          INPUT
12 dB
8 dB MIN.
          OUTPUT
15 dB
12 dB MIN.
7.POWER
AC117V/60Hz
108~125VAC
Frequency Range
950-2150MHz
Function
signal amplified
Insert Loss
-2.5dB
Return Loss
-12dB
Noise Figure
6dB
Power SUpply
12-21VDC
Gain
10-14dB
