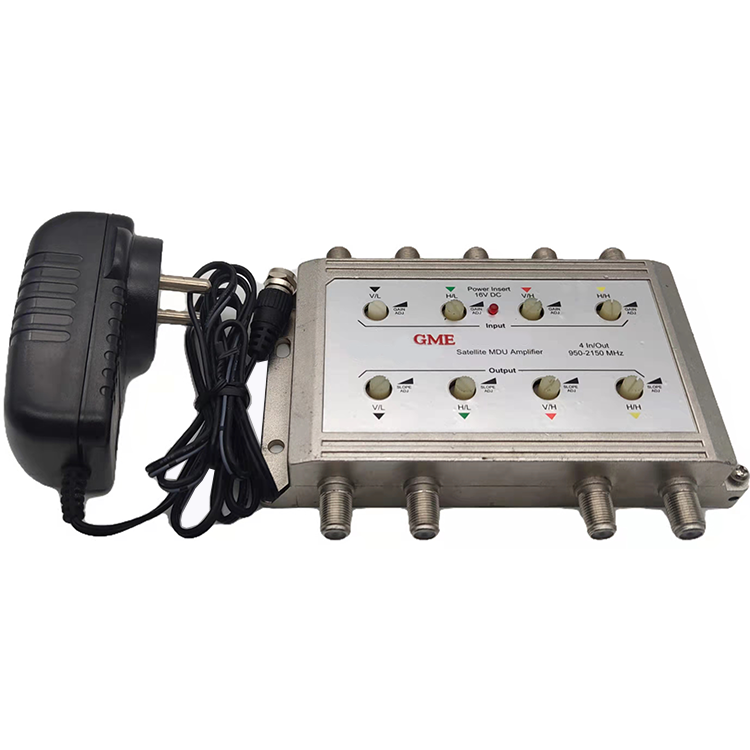

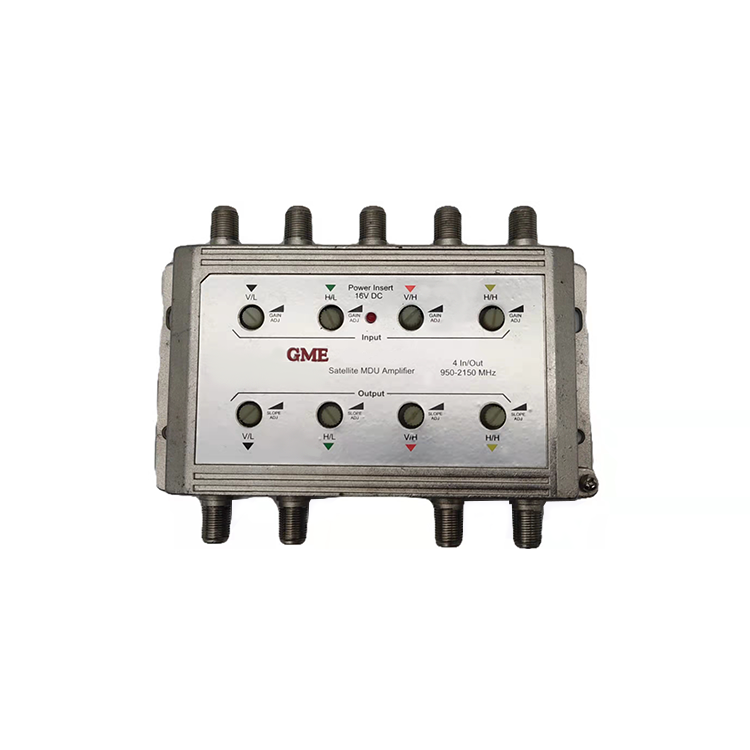

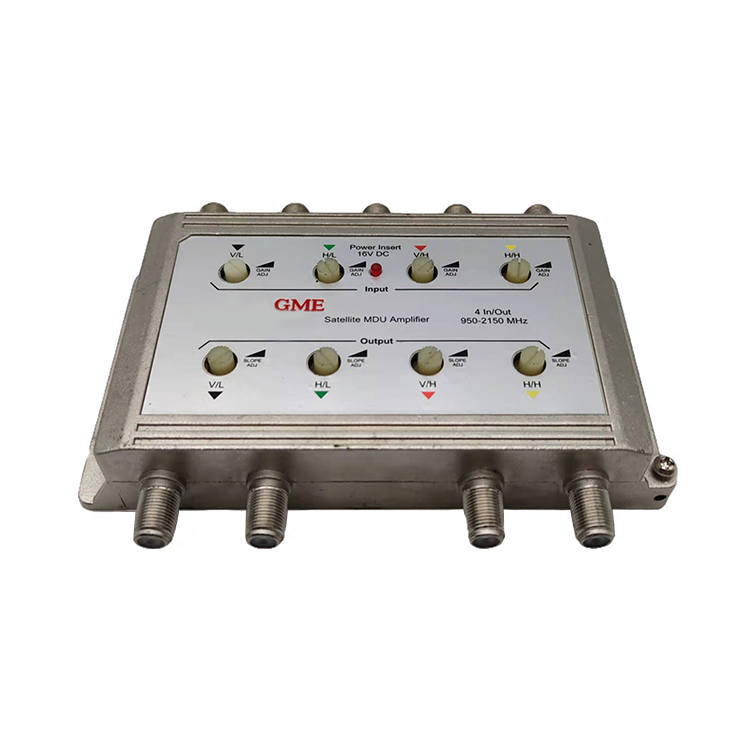

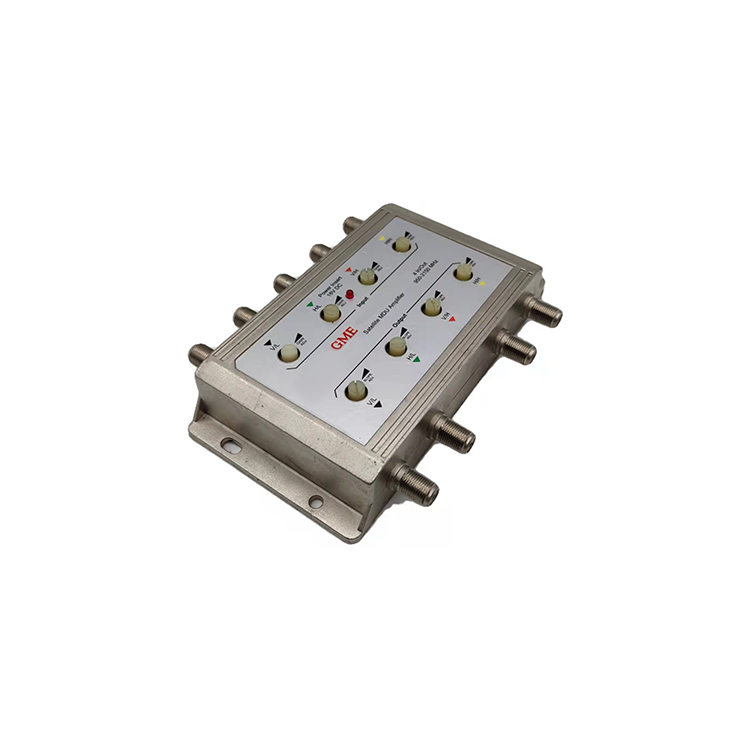

Gdamp-016 amplifier

4430

Satellite MOD Amplifier.

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-016(4430)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
No.of satellite inputs		4
No.of satellite outputs		4
Frequency range			950-2150MHz
Gain	+30dB	+28dB Min	950-2150MHz
Gain control adj		0-20dB	950-2150MHz
Slope control adj		0-10dB	950-2150MHz
Noise figure		8dB max	With slope min
Operating input level		-65dBm to -25dBm
Isolation
Input to input	-35dB	-30dB Min	950-1450MHz
	-30dB	-25dB Min	1451-2150MHz
Output to output	-35dB	-30dB Min	950-1450MHz
	-30dB	-25dB Min	1451-2150MHz
Return loss
Satellite input	-12dB	-10dB Min	950-1450MHz
	-10dB	-8dB Min	1451-2150MHz
Satellite output	-10dB	-8dB Min	950-1450MHz
	-18dB	-7dB Min	1451-2150MHz
Output capability
1dB compression		-7dBm min	12 transponders inputs
@ Gain control: Max. Gain			each -34dBm typ.

1dB compression		-13dBm min	12 transponders inputs
@ Gain control: Min. Gain			each -16dBm typ.

Pix Forzen			12 transponders inputs
@ Gain control: Max. Gain		-6.7dBm min	each -7.6dBm typ.

Pix Forzen			12 transponders inputs
@ Gain control: Min. Gain		-9.0dBm min	each -7.6dBm typ

Composite Triple Beat		-37dBm max.	Test Frequencies;
@ f2+f1		@ 2f2-f1: -60dB	f1: 950MHz
		at output	f2: 956MHz


Current to LNB
Supply voltage to LNB		350mA Min
Power adaptor		16.5V-19.0VDC	100-240VAC input/
			18VDC 1A output
Connector		“F”Type female	All ports
Impedance		75 ohms	All ports
Mounting			Mountable with screws
Grounding			Terminal for grounding to
			be available
