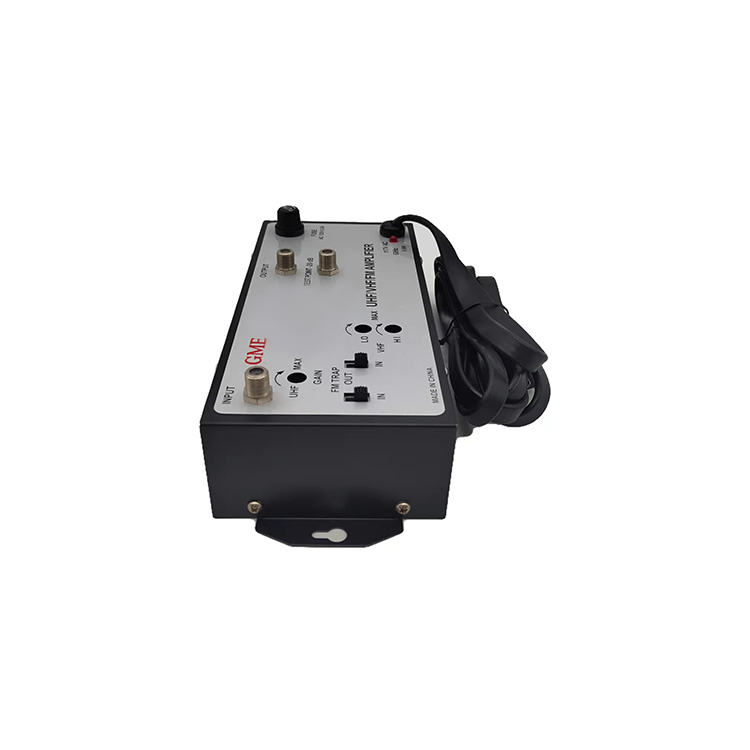

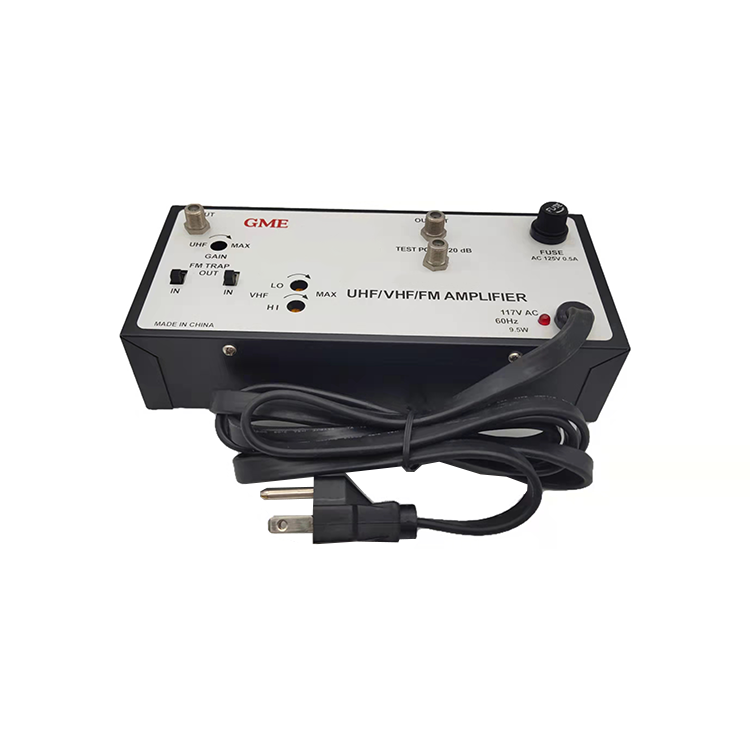

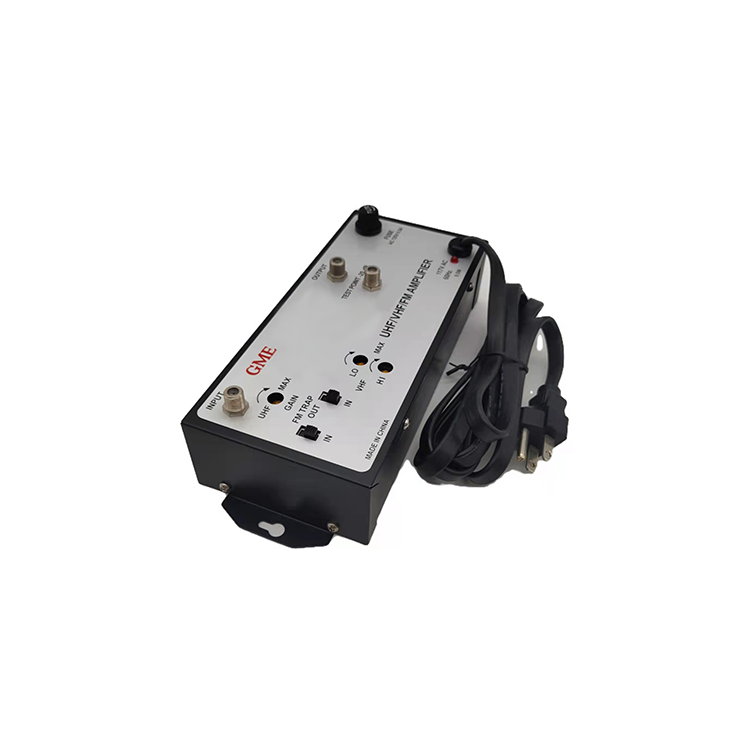

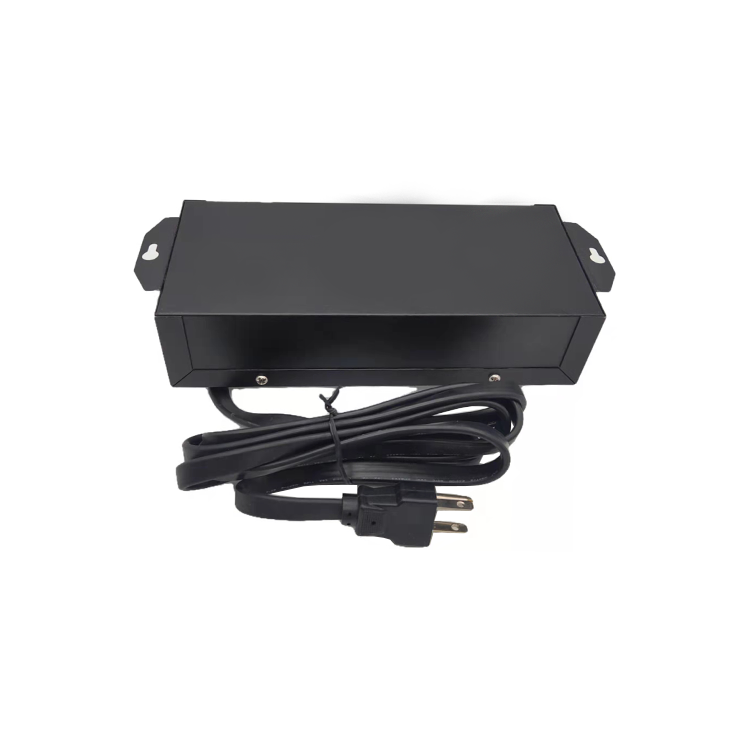

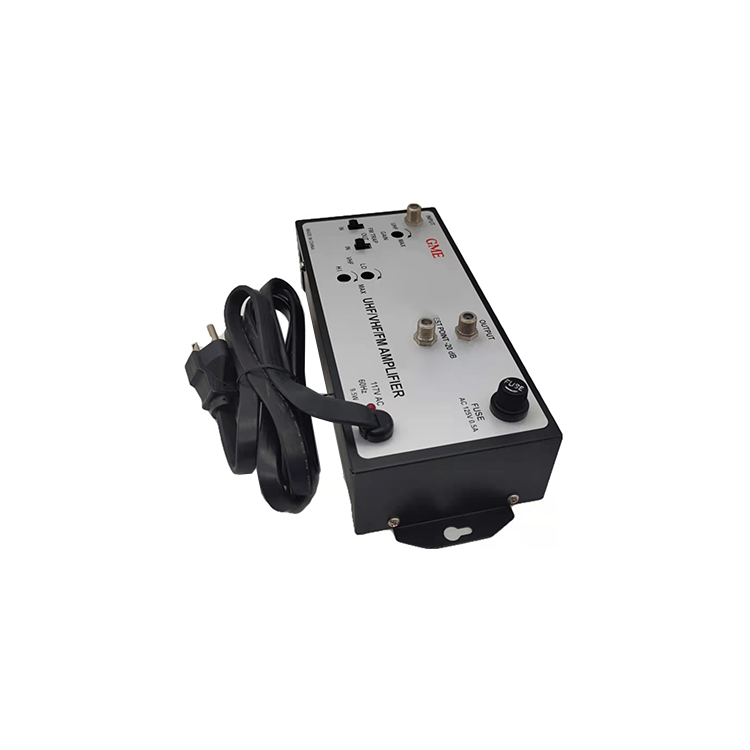

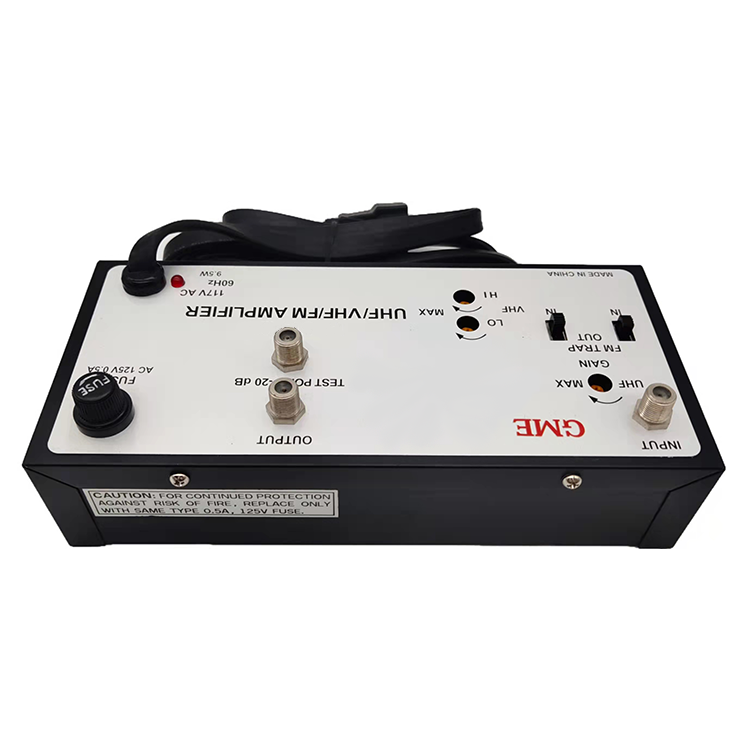

Gdamp-015 amplifier

3336
The 3336 amplifiers have been designed for medium-sized MATV systems providing the user with separate VHF high , VHF low and UHF band gain controls. The dual FM traps allow use in the strongest FM signal area. High reliability and regged design make this amplifier ideal for medium to large MATV system.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDAMP-015(3336)
Bandwidth:
VHF Low:
54 to 108 MHz
VHF High:
174 to 216 MHZ
UHF:
(3336) 470 to 812 MHz
Gain:
VHF:
31 dB
UHF:
(3336) 36 dB
Noise Figure:
5 dB UHF
7 dB VHF
Impedance:
75 ohm
Switchable FM Traps:
SW-1:
(88 to 96 MHZ) -20 dB
SW-2:
(95 to 108 MHZ) -20 dB
Power Requirements:
115VAC, 60Hz, 3W
Weight:
2.5 lbs.
Dimension:
83/8"L x 17/8"D x 33/4"
Gain control:
High:
15 dB
Low:
15 dB
UHF:
15 dB
Power Output:
#Channels
Max.Input
Max. Output
7 VHF
20 dBmV
52 dBmV
4 UHF
20 dBmV
56 dBmV
12 VHF
11 dBmV
43 dBmV
7 UHF
11 dBmV
45 dBmV
