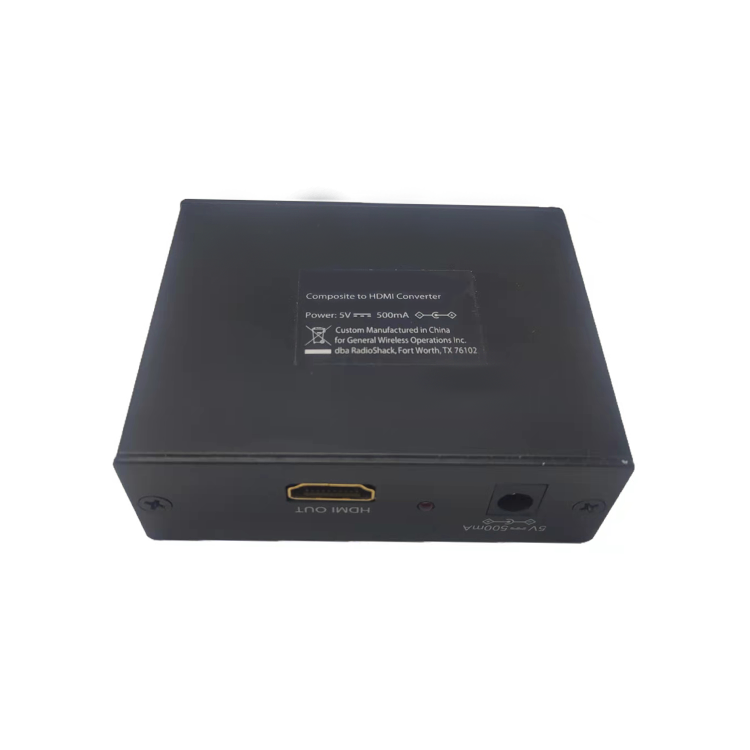

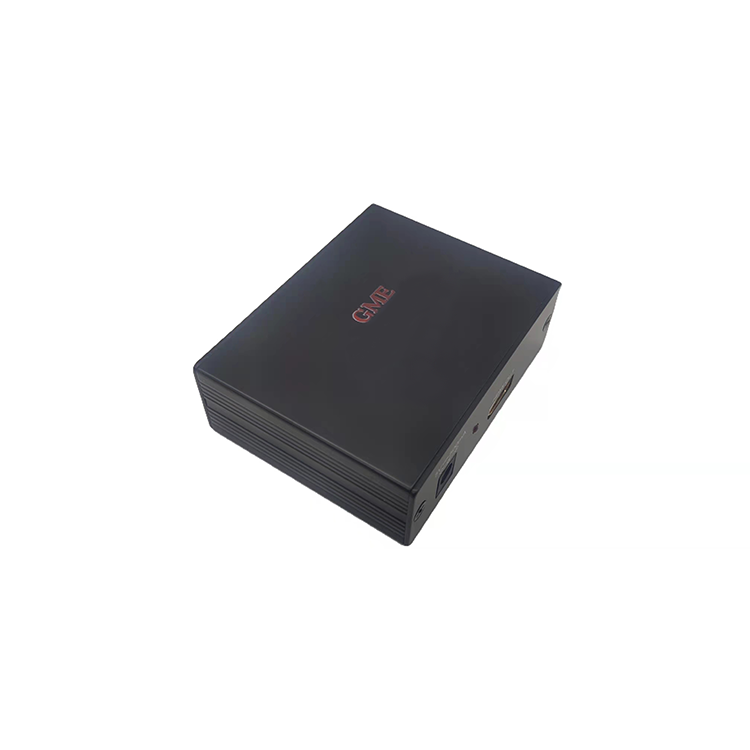

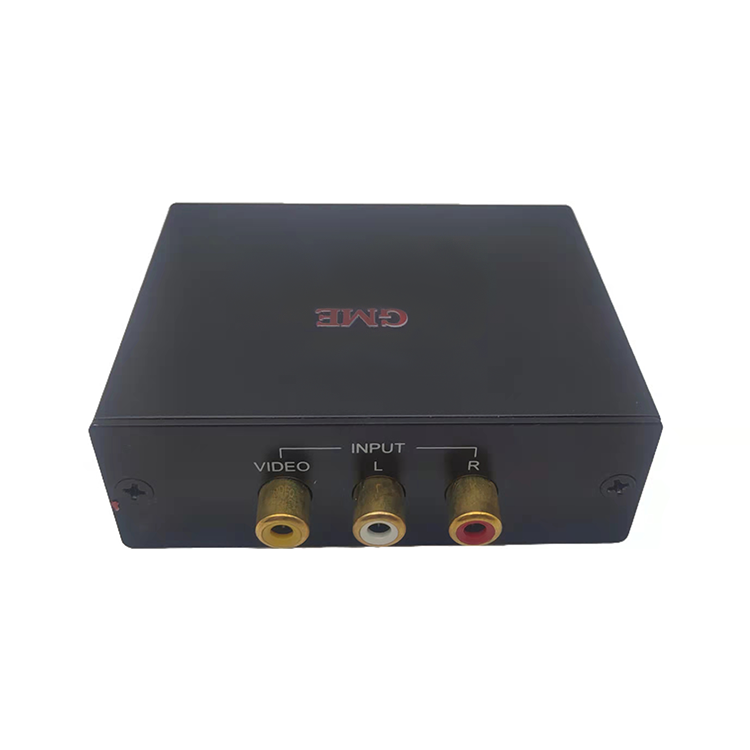

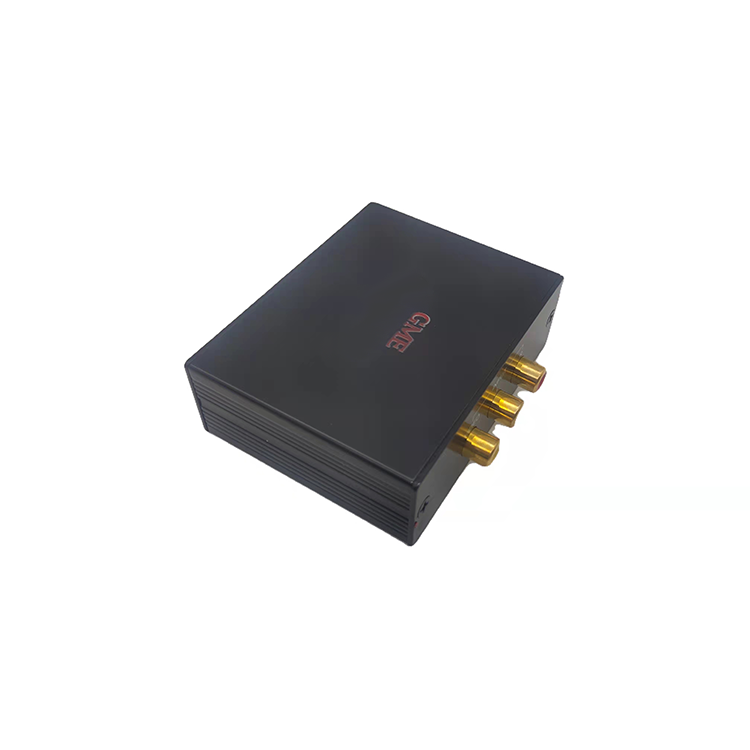

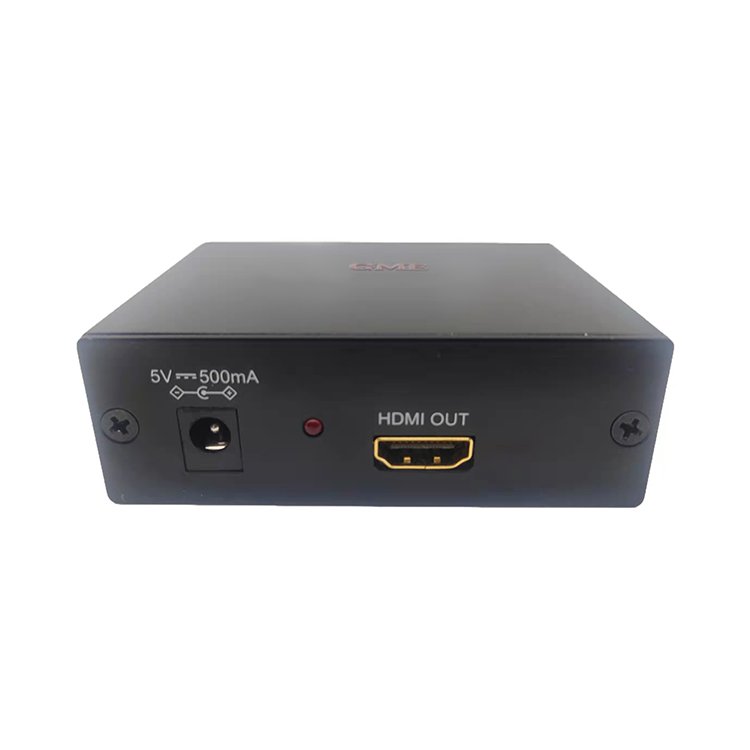

GDADC-003 converter

(1500657)

Convertidor Compuesto a HDMI.

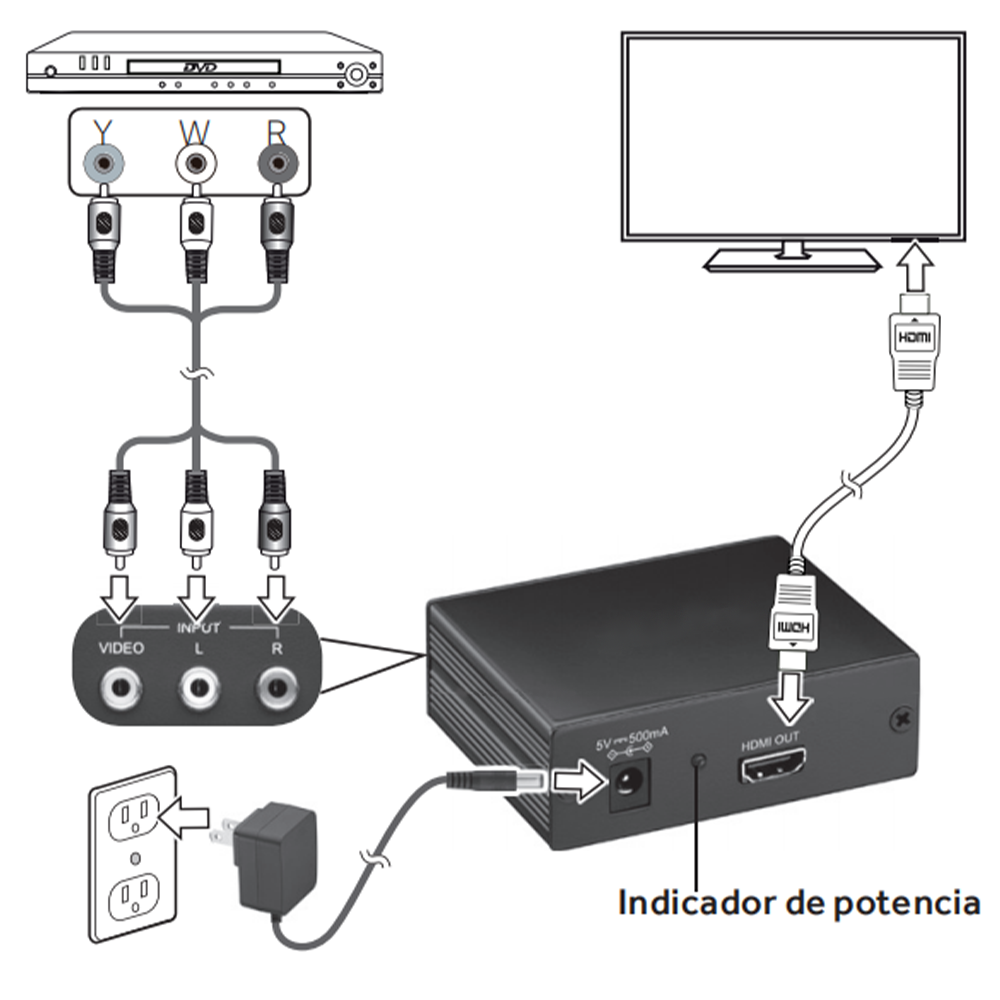

Este convertidor cambia dispositivos compuestos análogos anteriores para funcionar en pantallas HDMI más recientes.

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDADC-003(1500657)
ITEM	Q.C LIMIT
Signal Input
Video input format	NTSC, PAL
Video Signal Level	1 V p-p (Typical)
Audio input format	Stereo L / R
Audio Signal Level	1 V p-p (Typical)
Input connection	RCA Jack × 3

Signal Output
HDMI Version	HDMI 1.4b
HDMI output DDC Signal	5 volts p-p (TTL)
HDMI video output format	480i / 576i
Output connection	19 pin HDMI Type A Female

Power supply
(DC Power Adapter)	100~240VAC 50~60Hz
Input	5V DC / 500mA
Output

Environmental
Operating Temperature	0 ºC to +70 ºC
Operating Humidity	10 % to 85 % RH (no condensation)
Storage Temperature	-20 ºC to +80 ºC
Storage Humidity	5 % to 95 % RH (no condensation)

Mechanical
Dimensions	88 ×29 ×68 mm (W×H×D)
Weight	122 g (Net)
