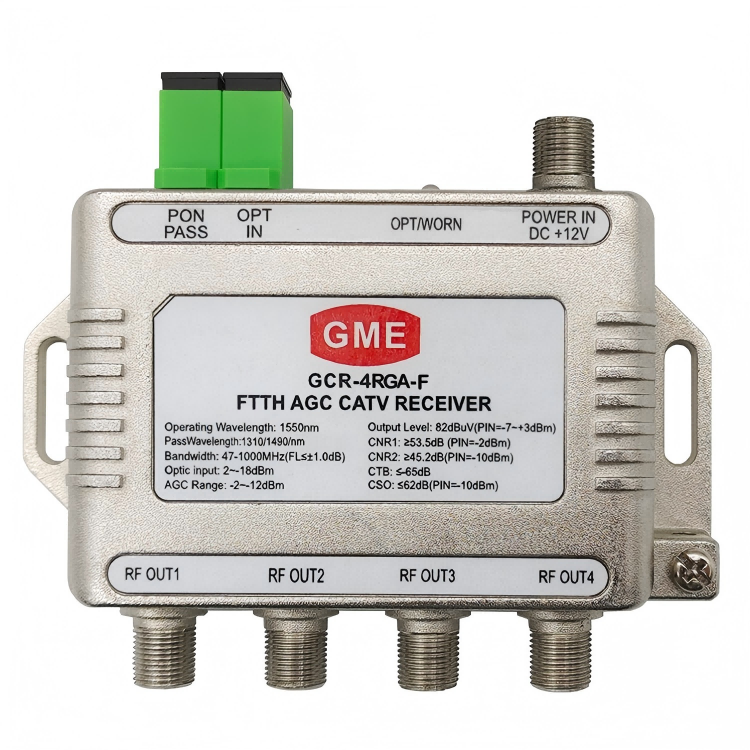

FTTH Optical Receiver
GCR-4RGA-F
v> Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network. It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON.
Consultation hotline：0755-27091915
Online ServiceParameter
Features
• Up to 20KM transmission Distance
• Extra-low noise
• Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
• Applicable GPON, EPON, compatible with any FTTx PON technology
• Can save a large number of optical power resource, greatly reduce the network configuration cost
• Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
• Metal case, offer safeguard for optoelectronic sensitive devices
• High output level, can be used by many users
• Low power consume, high performance, high cost performance
• 6KV surge protection on all ports
• Support 4 RF OUT max

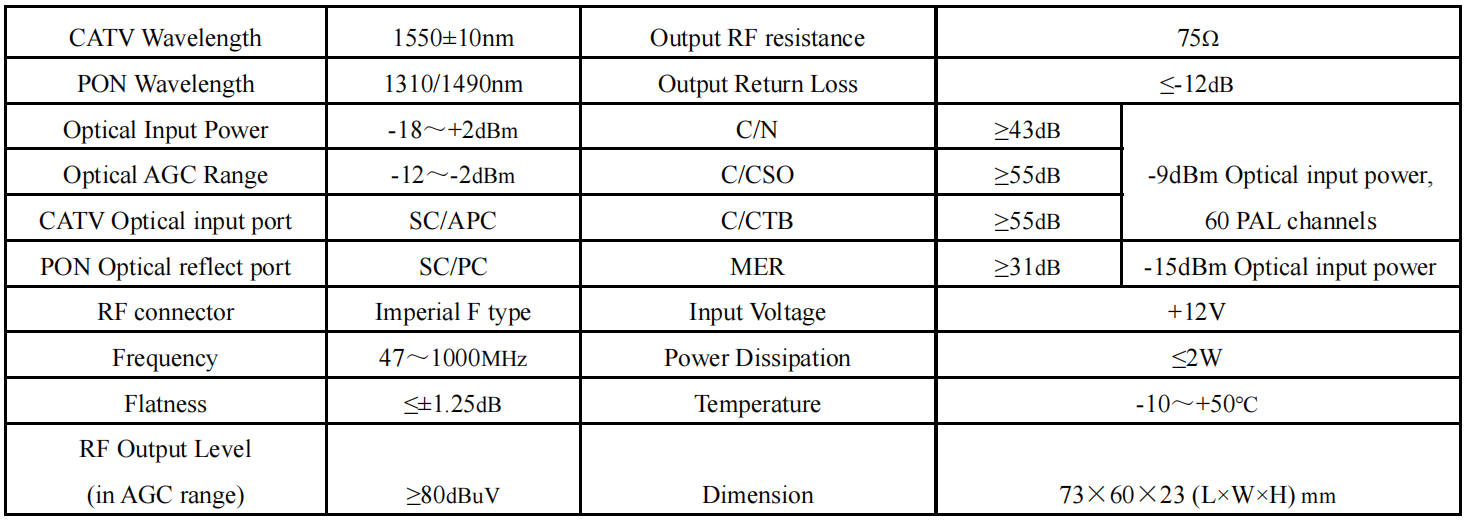

Technical Specification
Model lists
• Up to 20KM transmission Distance
• Extra-low noise
• Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
• Applicable GPON, EPON, compatible with any FTTx PON technology
• Can save a large number of optical power resource, greatly reduce the network configuration cost
• Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
• Metal case, offer safeguard for optoelectronic sensitive devices
• High output level, can be used by many users
• Low power consume, high performance, high cost performance
• 6KV surge protection on all ports
• Support 4 RF OUT max
Technical Specification
Model lists
