GDST-041 branch distributor

GHT4-20P-1.8

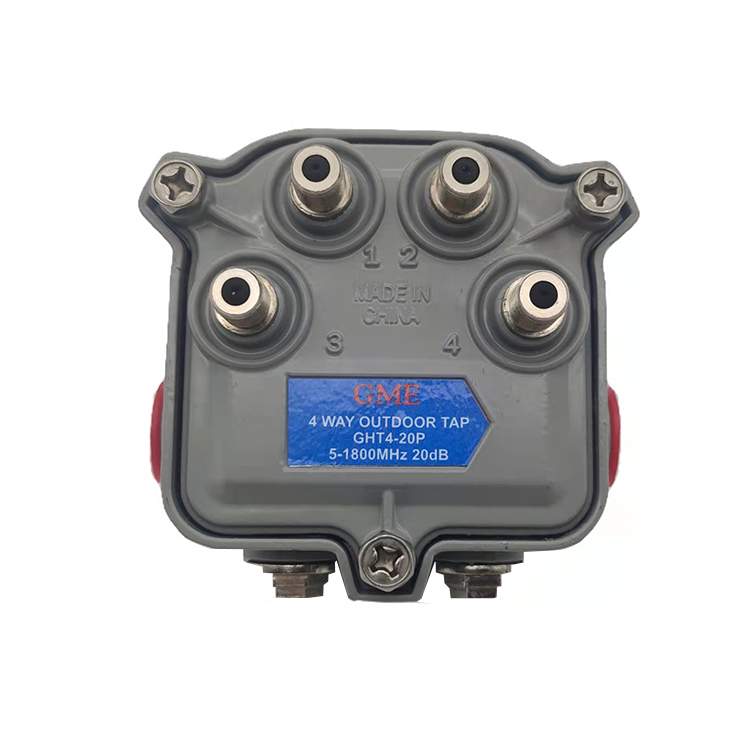

4 WAY OUTDOOK TAP
GHT4-20P
5-1800MHz 20dB

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-041 (GHT4-20P-1.8)
Parameter	Frequency [MHz]	314T-18-8T		314T-18-11
Insertion loss [dB]	5 – 10	T		3.8
	10 – 65	T		3.6
	65 – 300	T		4
	300 – 550	T		4.7
	550– 750	T		5
	750 - 862	T		5
	862 – 1000	T		5.1
	1000 – 1218	T		5.3
	1218 - 1500	T		5.4
	1500 – 1700	T		6
	1700 – 1800	T		6.6
Return loss [dB min.]	5 – 10	≧16		≧16
	10 – 47	≧16		≧16
	47 – 850	≧16		≧16
	850 – 1218	≧12		≧12
	1218– 1500	≧12		≧12
	1500 - 1700	≧12		≧12
	1700 – 1800	≧12		≧12
Tap value(dB) Tolerance 5-580MHz±1.0dB 850-1218MHz±1.5dB 1218-1800MHz±2.0dB	5 – 65	8		11
	65 – 860	8		11
	860 – 1218	8		11
	1218– 1500	8		12.5
	1500 - 1700	8		13
	1700 - 1800	8		13.5
Isolation [dB min.]		Out-Tap	Tap-Tap	Out-Tap	Tap-Tap
	5 – 10	T	18	23	18
	10 – 65	T	26	29	26
	65 – 860	T	24	27	24
	860 – 1218	T	22	25	22
	1218– 1500	T	20	25	20
	1500 - 1700	T	17	20	17
	1700 – 1800	T	17	20	17
