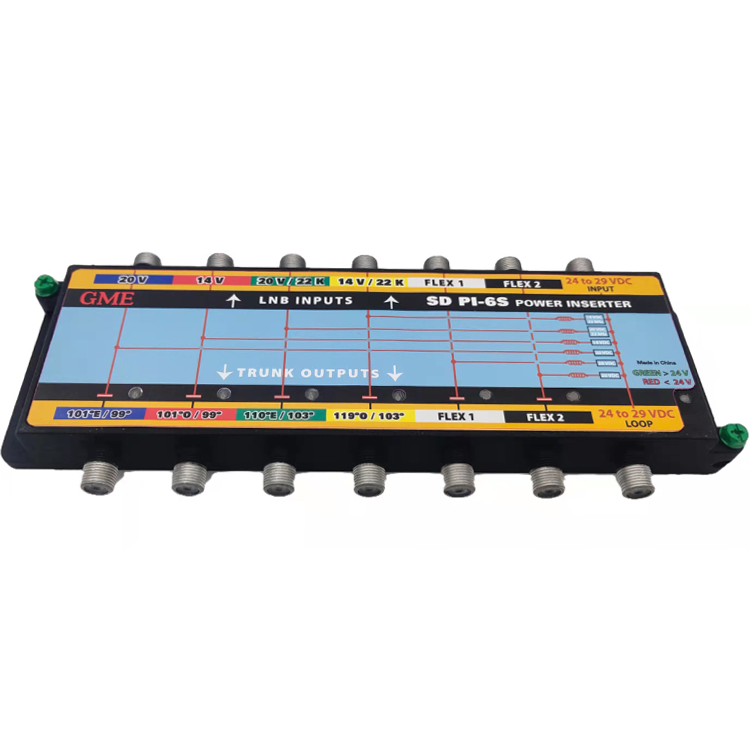

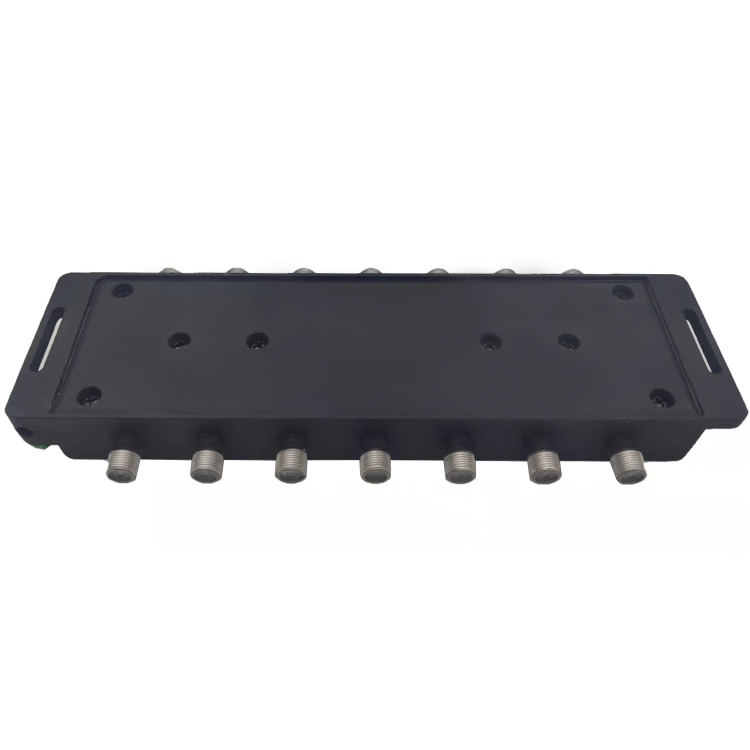

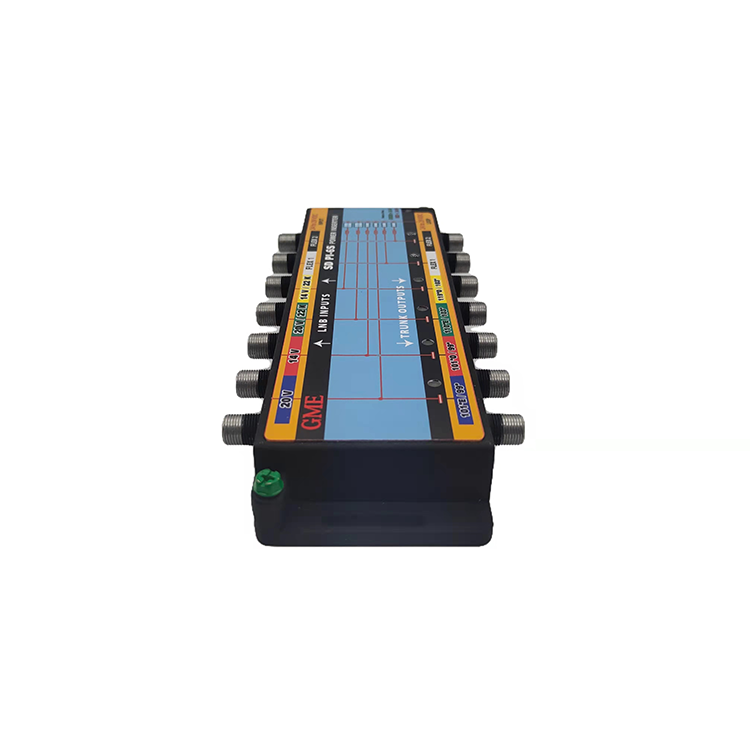

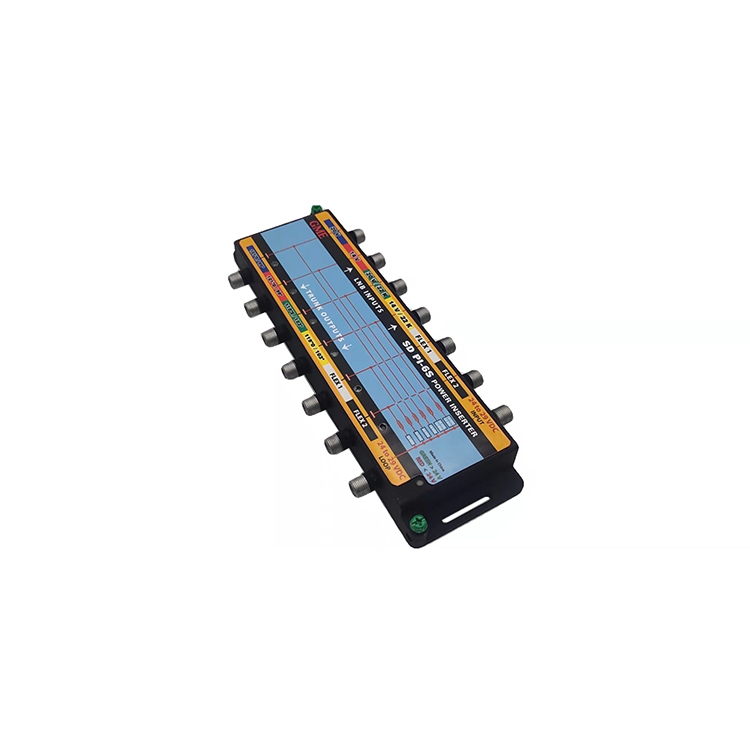

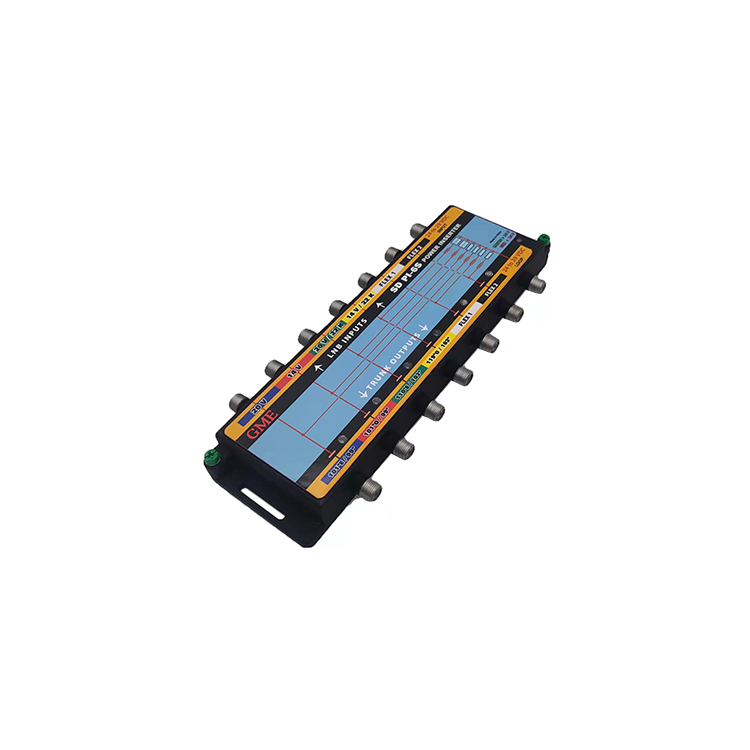

Gdins-001 plug-in

(SD PI-6S)

Power Inserter

Consultation hotline：0755-27091915

Place of Origin: Guangdong,China
Model Number: GDINS-001 (SD PI-6S)
ITEM	TYPICAL	Q.C.LIMIT	TEST CONDITIONS
FREQ. RANGE			250-2150 MHz
INSERTION LOSS
	-1.0 dB	-1.5 dB MAX	250-2150 MHz
ISOLATION
BETWEEN PORTS	-40dB	-35dB MIN	250-2150 MHz
RETURN LOSS
INPUT/OUTPUT	-12dB	-10dB MIN	250-2150 MHz
DC POWER PROVIDED INPUTS
PORT#1 (20V 101°& 99°)		20±0.5 VDC	@50-350 mA
PORT#2 (14V 101°& 99°)		13.5±0.5 VDC	@50-350 mA
PORT#3 (22KHz & 20V 110°& 103°)		20±0.5 VDC(+22KHz)	@50-350 mA
PORT#4 (22KHz & 14V 119°& 103°)		13.5±0.5 VDC(+22KHz)	@50-350 mA
PORT#5 (FLEX PORT1)		20±0.5VDC	@50-350 mA
PORT#6 (FLEX PORT2)		20±0.5VDC	@50-350 mA
22KHz SIGNAL CHARACTERISTICS
FREQ		22±4KHz
DUTY CYCLE		±50﹪	＜24.0 VDC
LEVEL		400mVp-p MIN	＞24.0 VDC
POWER LED COLOR		RED
CORRESPONDING TO:		GREEN
POWER SWITCHING		24V-29VDC	POWER SWITCHING
INPUT		100-240VAC / 50/60Hz	ALL PORTS
OUTPUT		24VDC/2.08A	ALL PORTS
IMPEDANCE		75 OHM	(6)SCTE INDOOR F
CONNECTOR		“F”TYPE FEMALE
NUMBER OF INPUT/OUTPUT PORTS
