4GE+1POTS+WiFi 6 +USB+CATC
GPON ONU GPU-4GAXThis ONU is designed for FTTH. It supports XPON dual-mode technology (EPON and GPON),With WiFi speeds up to 3000Mbps, it also supports IEEE 802.11b/g/n/ac/ax technology and other Layer 2/Layer 3 features, It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Consultation hotline：0755-27091915
Online ServiceParameter
|
DESCRIPTION : XPON+4GE+1POTS+1USB3.0+CATV+WiFi6 HGU ONT
|
|
|
Dimension
|
260.5mm×149mm×53mm(L×W×H)
|
|
Net weight
|
950g
|
|
Operating condition
|
Operating temp: -10 ~ +55°C
Operating humidity: 5 ~ 95% (non-condensing) |
|
Storing condition
|
Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensing) |
|
Power adapter
|
DC 12V/1.5A
|
|
Power supply
|
≤18W
|
|

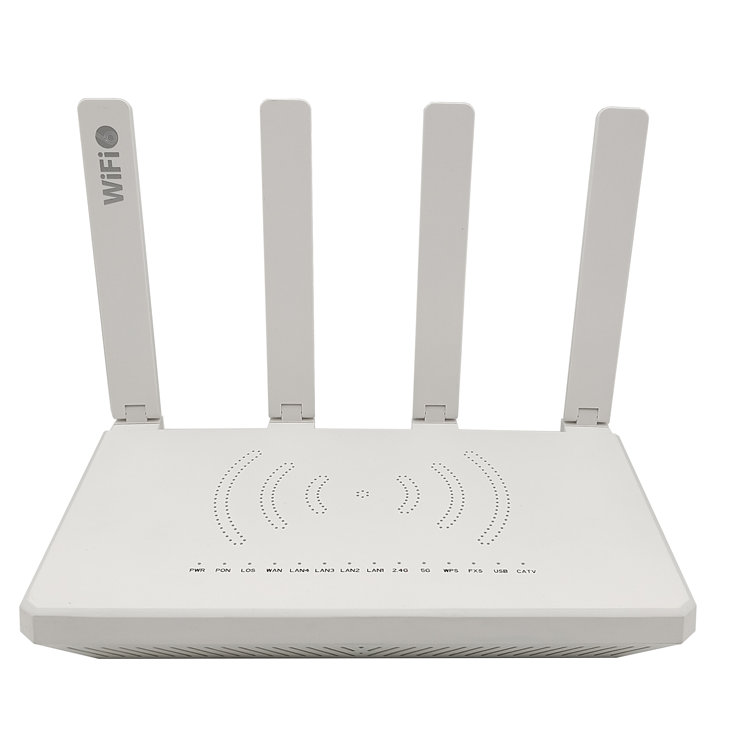

Indicators
|
PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G ,WPS ,FXS,USB ,CATV
|
|
PON interface
|
1XPON port(EPON PX20+ and GPON Class B+)
SC single mode, SC/APC connector TX optical power: 0.5～+4dBm RX sensitivity: -28dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
User
|
4×GE, Auto-negotiation,RJ45 ports
1×POTS RJ11 Connector |
|
Antenna
|
2.4GHz 2T2R , 5GHz 3T3R
|
|
CATV
|
Optical receiving wavelength: 1550±10nm
Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level ≥75±2dBuv Support AGC control MER: ≥32dB(-14dBm optical input) |
|
O&M
|
WEB/TELNET/OAM/OMCI/TR069
Support private OAM/OMCI protocol |
|
Internet connection
|
Support Routing Mode
|
|
Multicast
|
IGMP v1/v2/v3, IGMP snooping
MLD v1/v2 snooping |
|
VoIP
|
SIP and IMS SIP
G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
|
WIFI
|
WIFI6: 802.11a/n/ac/ax 5GHz, 2.4GHz
WIFI:2.4G 2X2,5G 3X3,5 antennas.Multiple SSID WiFi Encryption: WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band |
|
Firewall
|
Anti-DDOS, Filtering Based on ACL/MAC /URL
|
