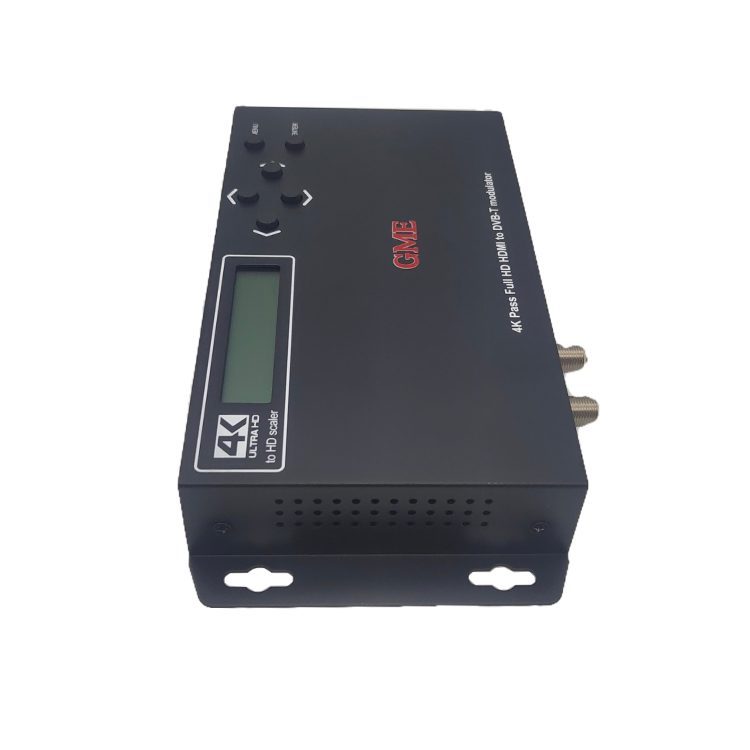

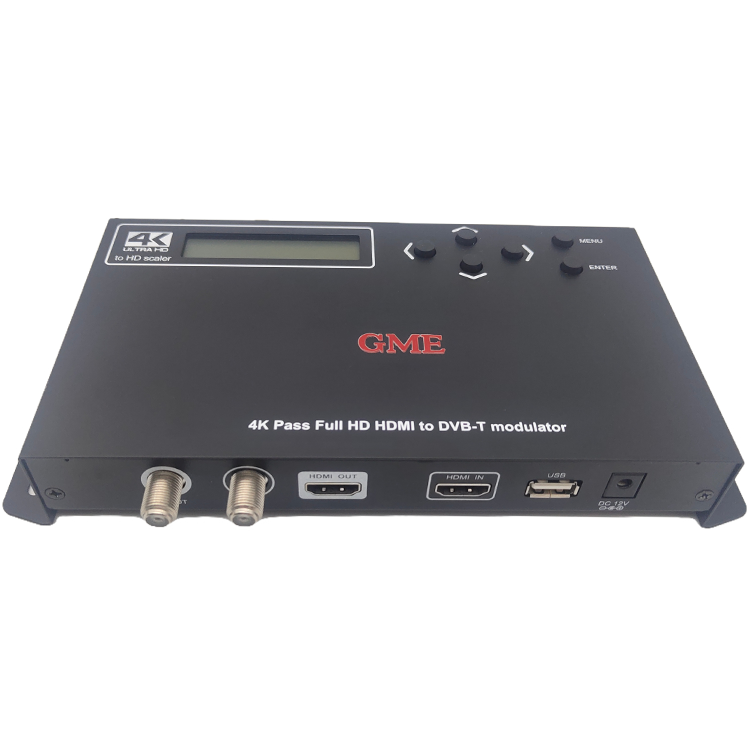

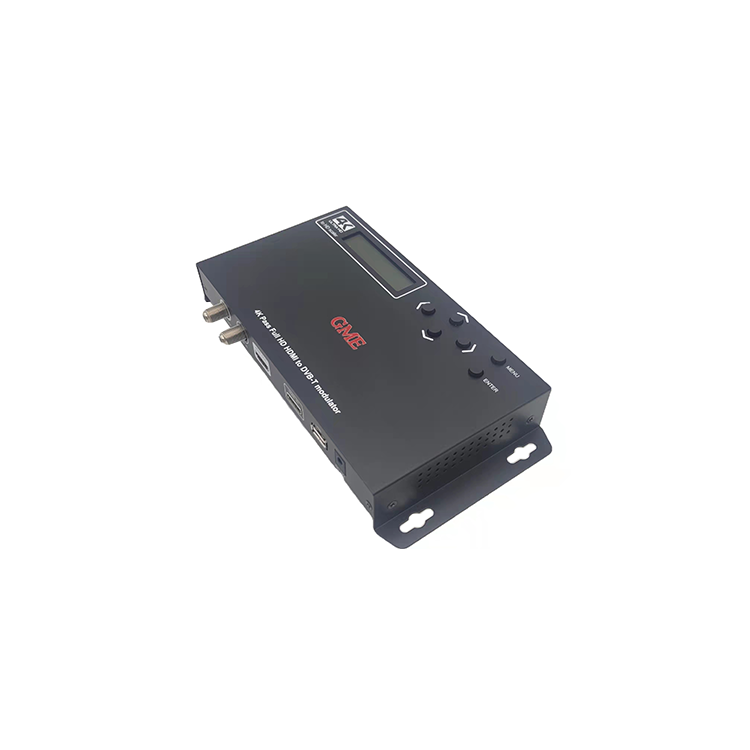

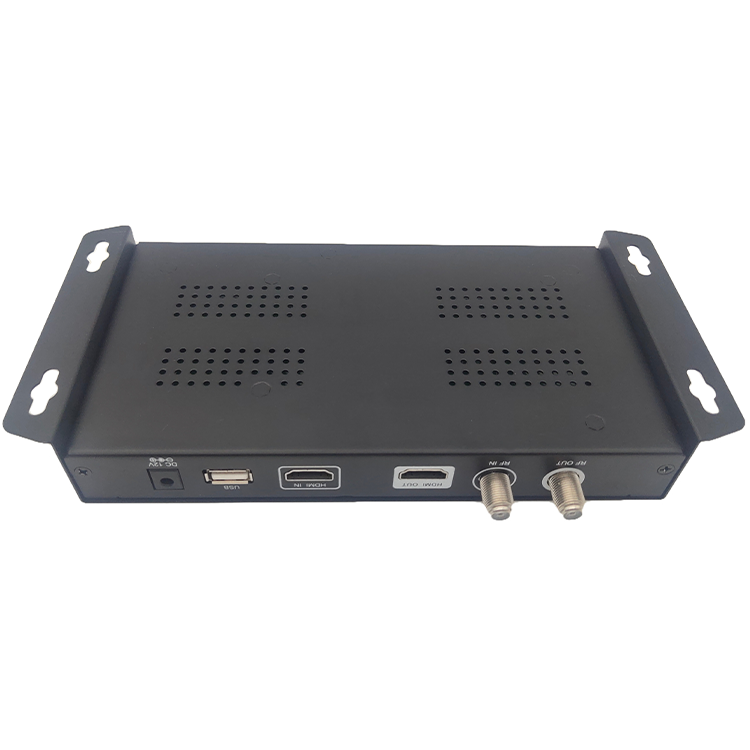

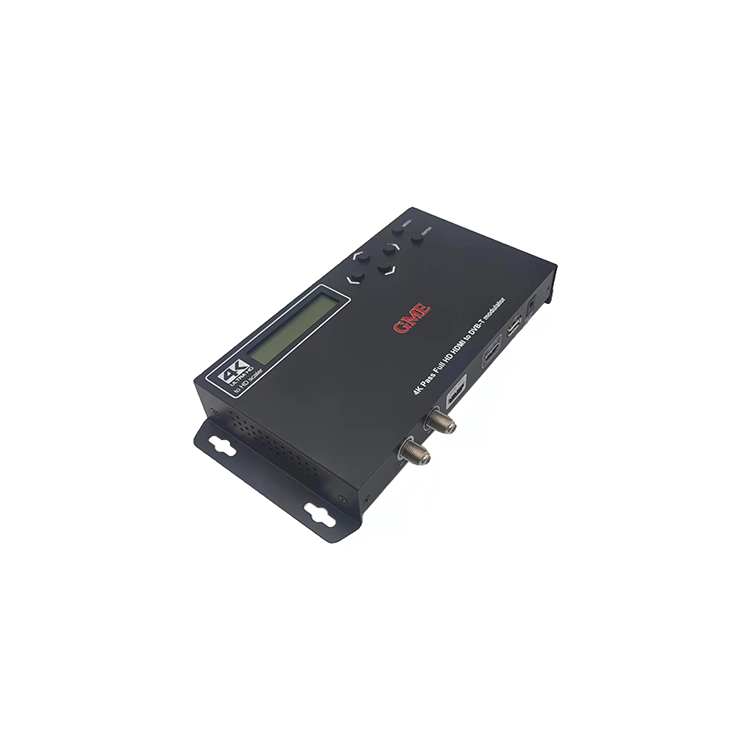

Gdm-010 digital modulator
GTM-8604KD
Diprogress GTM-8604KD is a digital modulator capable of generating a signal in digital terrestrial dvb-t format from
an audio video source HDMI. In particular,dp860d4k is capable of processing an input video signal with hd,full hd and 4k resolution which is then processed by encoder h264 and distributed as a digital terrestrial full hd signal to ensure
the compatibility of a tuner with most televisions Digital terrestrial hd channels.
GTM-8604KD is equipped with hdmi input and hdmi passing through hdmi that can also pass 4k signals to main TV
ensuring maximum resolution to TV connected directly to the modulator.
an audio video source HDMI. In particular,dp860d4k is capable of processing an input video signal with hd,full hd and 4k resolution which is then processed by encoder h264 and distributed as a digital terrestrial full hd signal to ensure
the compatibility of a tuner with most televisions Digital terrestrial hd channels.
GTM-8604KD is equipped with hdmi input and hdmi passing through hdmi that can also pass 4k signals to main TV
ensuring maximum resolution to TV connected directly to the modulator.
Consultation hotline：0755-27091915
Online ServiceParameter
| Place of Origin:Guangdong,China | ||||||
| Model Number:GDM-010(GTM-8604KD) | ||||||
| ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS | |||
| 1. RF Output | ||||||
| Connector | Female TYPE-F | |||||
| Impedance | 75 ohms | |||||
| Output Frequency Range | CH5~CH69 | 177.5 MHz ~858MHz | ||||
| Low Band CH5~CH12 | 177.5 MHz ~226.5MHz | |||||
| High Band CH21~CH69 | 474MHz~858MHz | |||||
| RF Out Level | 97dBµV | 97dBµV ± 5dBµV | ||||
| RF Out Level ADJ | 0dBm~-30dBm | |||||
| MER | >30dB | |||||
| 2. RF Input | ||||||
| Connector | Female TYPE-F | |||||
| Impedance | 75 ohms | |||||
| FREQ. RANGE | 50~ 950 MHz | |||||
| INSERTION LOSS | - 4.8dB | - 4.8 dB MAX. | ||||
| 3.HDMI INPUT | ||||||
| Connector | HDMI JACK | |||||
| Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | Support dolby | ||||
| 4.HDMI OUTPUT | ||||||
| Connector | HDMI JACK | |||||
| Needing the image and sound to export | There can’t be mosaic and The Sound is distorted | Support dolby | ||||
| Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | |||||

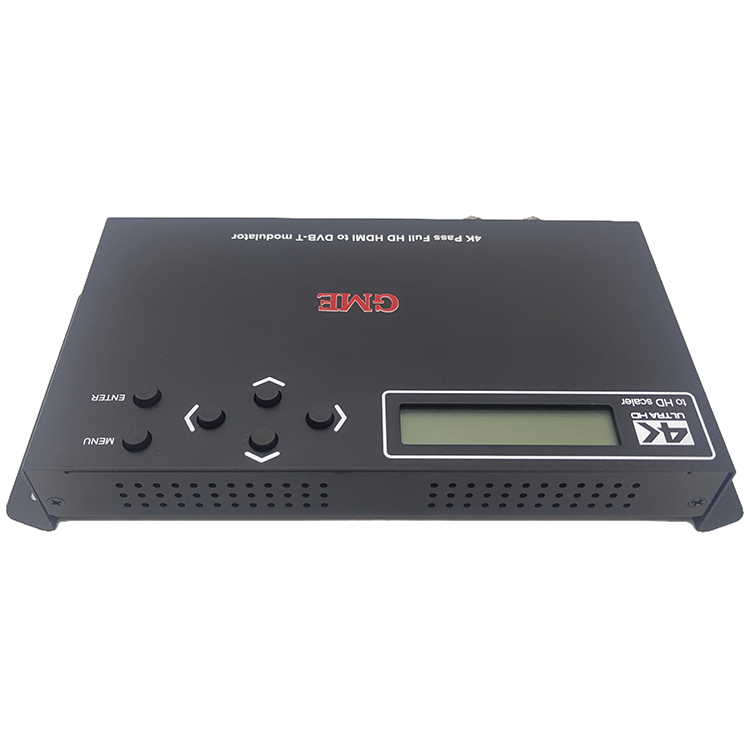

| 5.Front Panel Function | ||||||
| Buttons | MENU | |||||
| ENTER | ||||||
| ▲UP | ||||||
| ▼Down | ||||||
| ◀ Left | ||||||
| ▶ Right | ||||||
| Display | LCD | |||||
| 6．USB2.0 | ||||||
| Connector | USB2.0 JACK | |||||
| Signals | Firmware Update | |||||
| 7. General Data | ||||||
| Software | Software Version | |||||
| Supply Voltage | AC100V~240V 50Hz/ 60Hz OUTPUT:DC12V/1A | |||||
| Power Consumption Max | 10W | 10W Max in AC input | ||||
| Working Temperature | +5℃ to + 40℃ | |||||
| Storage Temperature | -20℃ to + 65℃ | |||||
| Environmental | ||||||
| Temperature | 0℃ to + 40℃ | |||||
| Humidity | 40RH to 90RH | |||||
| Mechanical Specification | ||||||
| Dimensions | 172*126*32mm | |||||
| Weight | 0.6Kg approximate | |||||
